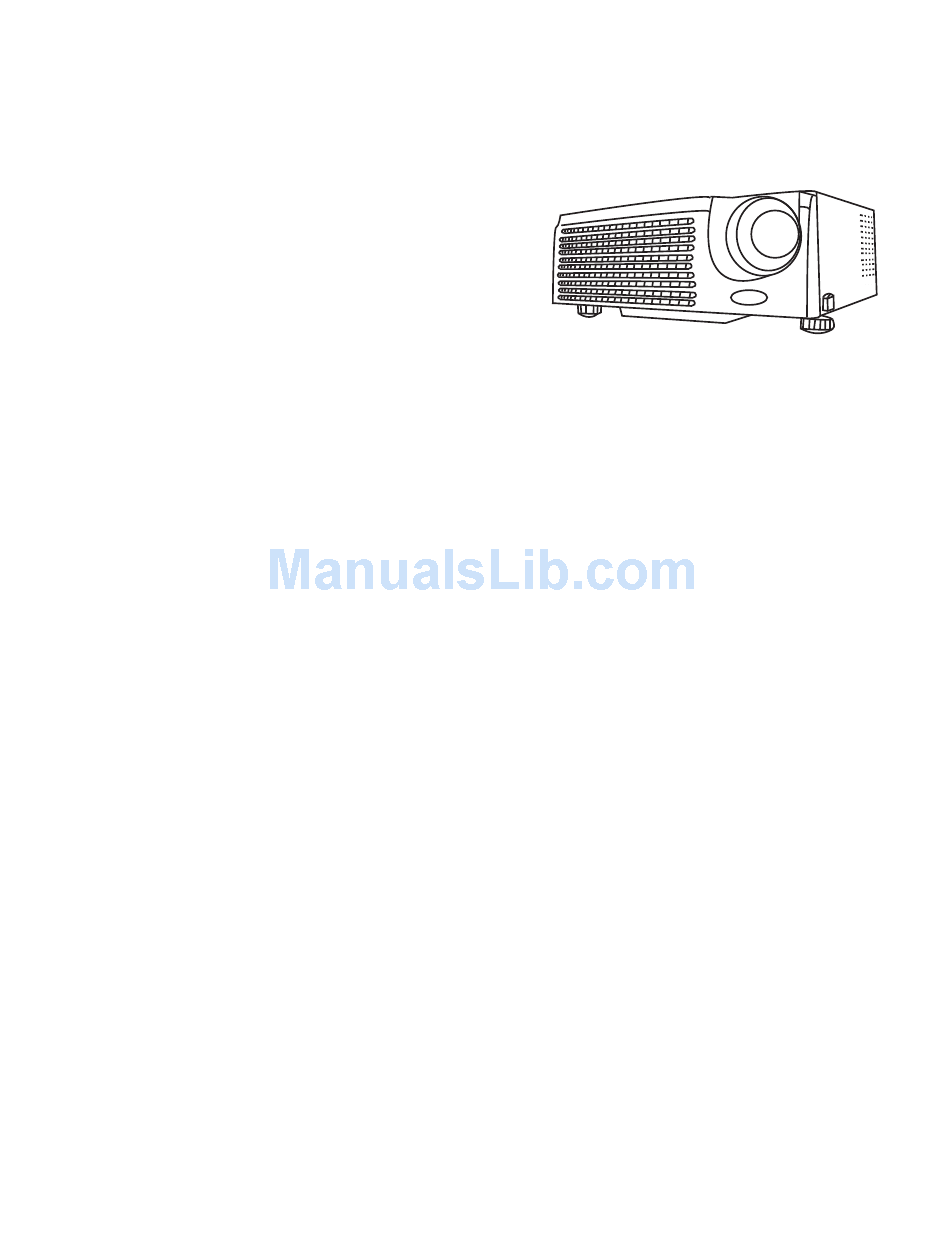

Eiki EIP-S200 Specification Sheet



KEY FEATURES: Model EIP-S200

2000 ANSI Lumens, 85% uniformity, and 2000:1 contrast ratio.
True SVGA resolution. SXGA, XGA, and VGA & MAC compatible.
Smart data compression / expansion, and video scaling.
Accepts Composite, S, and Component Video, both 4:3 and 16:9.
Compatible with HD input resolution up to 1080i.
Converts Interlace to Progressive Scan.
Convenient manual zoom (1.07X) and focus lens.
Built-in image offset. Vertical digital keystone correction.
Power management and Eco mode help prolong lamp life.
Selectable menu position and timeout. Auto input selection.
Wireless remote control. Carrying Case included.
3 Year* Projector Warranty!

Included Accessories:

Owner's Manual on CD.
Lens Cover. VGA type Computer Input Cable (HD15 ~ HD15). Composite Video Cable. S-Video Cable. Audio Cable. Carrying Case.

Optional Accessories:

Replacement Lamp. Component Video Input Cable (HD15~3-RCA). DB9~DB9 cable for RS-232 control. Ceiling Mount.
Ceiling Post & Plate. EZ-250 Local Control. NPC-1 Network Control.
Screen Brightness ................................................. up to 2000 ANSI Lumens
Illumination Uniformity ..............................................................................85%
Size of Color Palette ..................................................................... 16.7 Million
Contrast Ratio .............................................................................. up to 2000:1
Projection Lamp ....................................................................... 200 Watt UHP
Estimated Lamp Life ...................................................up to 2000 Hours of Use
Imaging System
Screen Pixels ................................................ 800 x 600 in stripe configuration
Total Pixels .................................................................480,000 ((800x600) x 1)
Lens Type ................................................................ Manual Zoom and Focus
Lens Specs............ Speed: f:2.46~2.47; FL: .0.78~0.84 in. (19.91~21.36 mm)
Lens Ratios...................... Zoom Max:Min: 1.07:1; Throw:Width: 1.77~1.90:1
Image Diagonal ................................................. 31.1~277.8 in. (79.0~706 cm)
Image Width ........................................................ 2.07~18.52 ft. (0.63~5.7 m.)
Throw Distance (tele~wide) ...................................3.94~32.8 ft. (1.2~10.0 m.)
Front Elevation ................................................................................ up to 9°Up
Anti Keystone ............. Image starts 14.5% of image height above lens center
Vertical Keystone Correction ............................... Digital: up to 15° up or down
Scanning Frequency ..................... Auto: H Sync. 31-79kHz; V Sync. 56-85Hz
Dot Clock ...........................................................................................108 MHz
Image Orientation ............................................... Normal, Reversed, Inverted
Local Control / Power Management ..................Full Function / Auto Shutdown
Remote Projector Ctrl ................................................Wireless (Infra Red) x 1
RS-232 Control Port ............................................................................ DB9 x 1
Firmware Update Port ......................................................................USB-1 x 1
Computer Native Resolution .................................................800x600 (SVGA)
Computer: Compatibility ............................. SXGA, XGA, SVGA, VGA & MAC
Computer: Formats............................................1280 x 1024 through 640x480
Computer: Higher Resolutions......... Displayed panned or Smart Compressed
Computer: Lower Resolution ................Displayed normal or Smart Expanded
Lamp contains Mercury. Do not put in trash. Dispose of as Hazardous Waste, according to Local, State or Federal Laws.
Specifications subject to change without notice. ©2007 Eiki International, Inc. Issued June 19, 2007.
Eiki International, Inc., 30251 Esperanza, Rancho Santa Margarita, CA 92688-2132. Tel: 800-242-3454; Fax: 800-457-3454, E-mail: usa@eiki.com
In Canada: 310 First St., Unit 2, P.O. Box 156, Midland, ON L4R 4K8. Tel: 800-563-3454, Fax: 800-567-4069, E-mail: canada@eiki.com
EIP-S200
Quick Start Guide.
Wireless Remote Control & Lithium Battery. AC Power Cord.

SPECIFICATIONS: Model EIP-S200

0.55" DMD
Visit our World Wide Web site: http://www.eiki.com
SVGA DLP® Projector
2000 ANSI Lumens
Video: Compatibility........NTSC / PAL / SECAM / NTSC 4.43 / PAL-M&N
Video: HD Compatibility............... 480i/p, 540p, 576i, 720p, 1035i, 1080i
Video: Formats Supported................. Normal 4:3 and Wide Screen 16:9
Video: Image Sizing........................................ Video Scaling Technology
Image Signal Inputs:
1: Computer (Component Video with optional adapter) ....... HD15 x 1
2: S Video: .......................................................................S-Video x 1
3: Composite Video................................................................ RCA x 1
Audio Signal Inputs .......................................................... MiniStereo x 1
Sound- Amplifier:......................................................... 2 Watt (Mono)
Sound- Speaker: ....................................................1.1 in. (2.8 cm) x1
Fan Noise ...................................................................as low as 32 dBA
Cabinet Size (HxWxD) .......... 4.0 x 10.1x 8.8 in. (102 x 256 x 223 mm.)
Weight ............................................................................. 6.6lbs. (3.0kg)
Packaged Size (H x W x D)... 12.1 x 12.6 x 8.9 in. (307 x 320 x 225 mm)
Packaged Weight ......................................................... 12.5 lbs. (5.7 kg)
Power Requirements .......................................... 100-240V AC, 50/60Hz
Power Consumption ..............................................................up to 250W
Heat .................................................................. up to 853 BTU (215 KC)
Power Cord................................................ 6' (1.8M) Type 3, Detachable
Electrical Safety Compliance ................................................... IUL/cCUL
Electomagnetic Compatibility ..............................FCC Class B. CE Mark
Security Facilities........................................... Kensington® Security Slot
Operating Temperature...............................................41~95°F (5~35°C)
User Maintenance .......................................................... Replace Lamp
UPC .............................................................................. 4571194671605
Warranty: (to the original end-use customer)
Projector... 3 Yr. / 6000 Hour Use. *(Parts & Labor to Correct Defects)
Lamp: ...............................90 Days (Failed Lamp Replaced Pro-Rata)
EIP-S200
* Whichever occurs first
