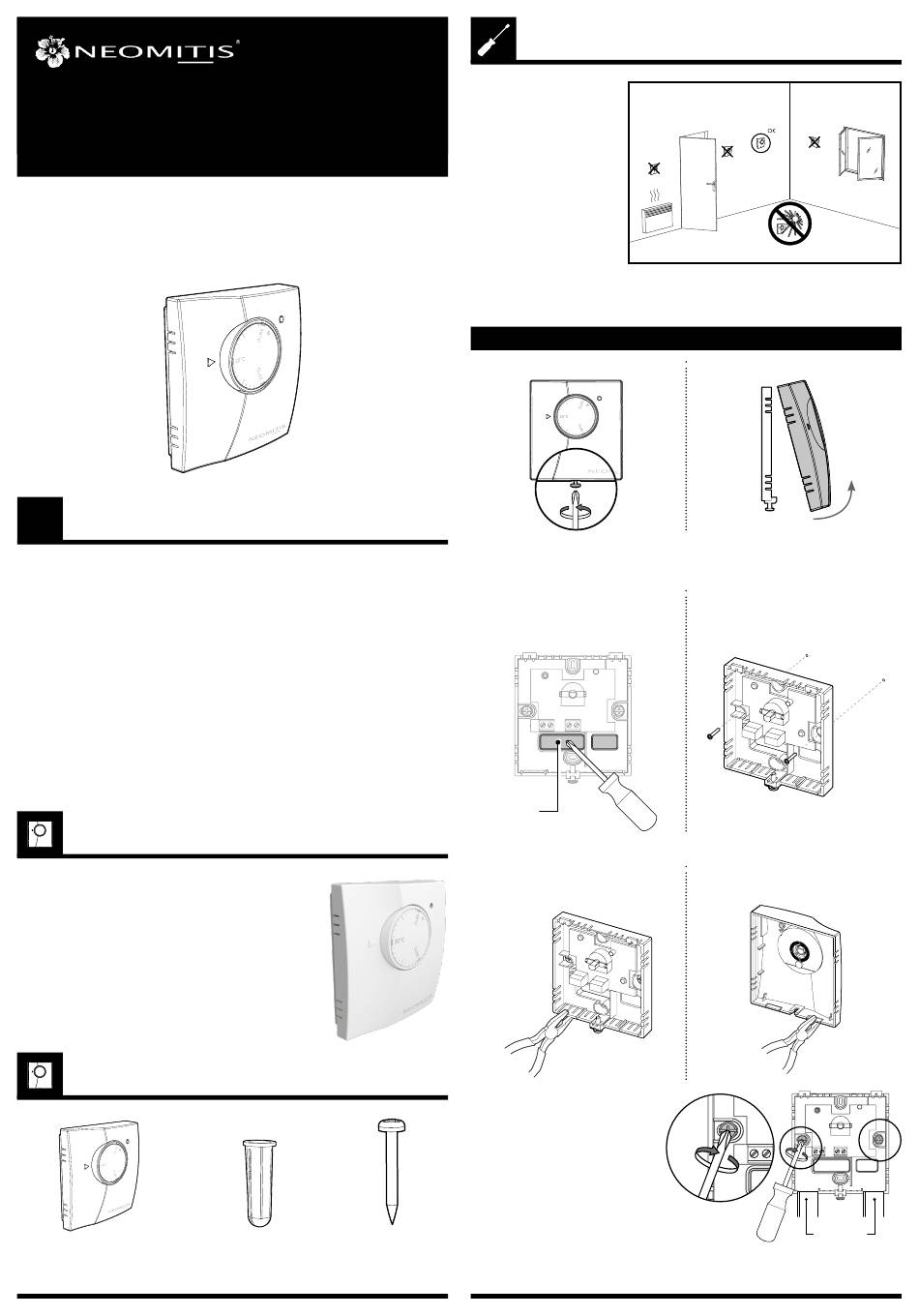

INSTALLATION AND OPERATING
INSTRUCTIONS
WIRED ANALOG ROOM
THERMOSTAT
TABLE OF CONTENTS
Pack contains........................................................................................................... 1
Overview ................................................................................................................. 1
Installation .............................................................................................................. 1
Mounting of the base ................................................................................................................. 1
Wiring ......................................................................................................................................... 2
Mounting of the front cover ....................................................................................................... 2
Operating ................................................................................................................ 2
Setting the temperature ............................................................................................................. 2
Frost protection mode ................................................................................................................ 2
Limit and lock .......................................................................................................... 2
Troubleshooting ...................................................................................................... 3
Technical specifications ........................................................................................... 3
What is a room thermostat ...................................................................................... 3
OVERVIEW
Thank you for choosing to purchase our product. The wired
electronic room thermostat is extremely easy to install,
has an innovative and ergonomic design. It was designed
to make your life easier and help you to save money on
your heating bills. It directly regulates room temperature
and controls the heating circuit which is connected to it
which has a voltage of 230V.
PACK CONTAINS
x1
Thermostat
RTAA NEO ENG CP V04 31 08 2021
RTANEOA
x2 x2
Screw Anchor Screws
INSTALLATION
Recommended locations
for your thermostat.
To ensure that your thermos-
tat provides accurate readings
and controls effectively, it
must be installed approxima-
tely 1.5 m above floor level
on an inside wall, away from
direct sunshine and any other
sources of heat or cold such as
radiators, cold draughts, etc.
Important: The thermostat
measures the temperature of
the place where it is installed. It does not take into account the temperature differences
that may exist between different locations in the house if the temperature is not uniform.
MOUNTING OF THE BASE
1- Loosen screw in the base of the unit.
2 ways of mounting the base to a wall:
• On a connection box
1- Using a screwdriver, push out the deta-
chable areas located at the back of the
base, making an openings which wires
can be routed through.
Detachable
areas
• Surface mounting
1- Using pliers, remove the knockout
areas located at the bottom of the
base.
3- Attach the base to the wall with
2 screws (the distance between
the attachment points of the two
screws is 60 mm).
4- Use conduit in order to protect the wires from pulling off.
The conduit must be in contact with the thermostat.
2- Remove the front cover.
2- Attach the base directly to the back
box using 2 screws (the distance
between the attachment points of the
two screws is 60 mm).
2- Repeat the procedure on the knockout
areas on the front side.
x2
Conduit
1
