INSTALLATION
INSTRUCTIONS
WIRELESS DIGITAL ROOM
THERMOSTAT AND RECEIVER
TABLE OF CONTENTS
Pack contains........................................................................................................... 1
.............................................................................................. 1
................................................................................................. 1
......................................................................................................................................... 1
............................................................................................................ 1
......................................................................................... 2
...................................................................................................................... 2
............................................................................................................. 2
.................................................................................................... 2
...................................................................................................... 3
........................................................................................... 3

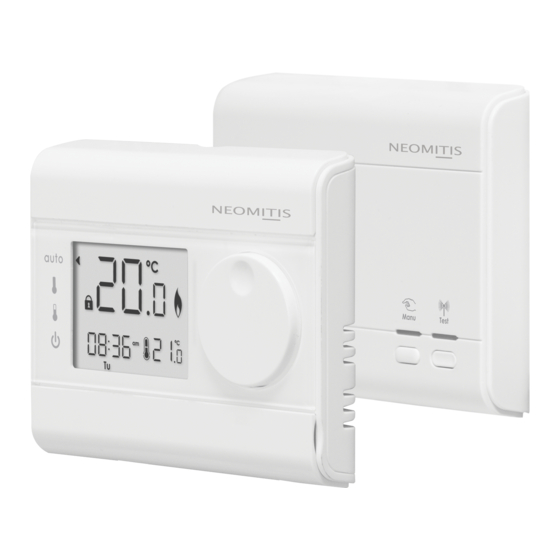

PACK CONTAINS
Thermostat
RTE0RFA NEO ENG FP V06 22 04 2016
RTE0RFA
Receiver
Thermostat table stand
Screw Anchor
Screws
For best performance, do not mount the receiver on metal wall boxes and leave at
least 30 cm distance from any metal objects including wall boxes and boiler housing.
MOUNTING OF WALL MOUTING PLATE
product.
Unscrew the 2 screws under the recei-
ver.
Secure the wall plate with the two
screws provided using the horizontal
WIRING
only.
NOTE: The unit is double in insulated so does not require and earth but a terminal is
supplied for the spare wire.
MOUNTING OF THE RECEIVER
Replace the receiver on the wall
Remove the wall plate from the recei-
ver.
out area is provided on the wall plate
and on the corresponding area of the
receiver.
N
L
1
2
3
4
N = Neutral
L = Live
1 = Not used
2 = Not normally used
3 = Common - Power In
4 = Call for heat - Power out
Secure the receiver by screwing the
1
Advertisement
Table of Contents
Related Manuals for Neomitis RTEORFA
Summary of Contents for Neomitis RTEORFA
- Page 1 RTE0RFA INSTALLATION For best performance, do not mount the receiver on metal wall boxes and leave at least 30 cm distance from any metal objects including wall boxes and boiler housing. INSTRUCTIONS MOUNTING OF WALL MOUTING PLATE product. Unscrew the 2 screws under the recei- Remove the wall plate from the recei- WIRELESS DIGITAL ROOM ver.
-
Page 2: Installing Batteries
Secure the thermostat by screwing the To ensure that your thermostat provides accurate readings and be installed approximately an inside wall, away from direct sunshine and any other sources of heat or cold such as radiators, cold draughts, Insert the 2 pins inside the wallplate. Slide the stand to the right. - Page 3 Thermostat RF icon and receiver Thermostat RF icon and receiver TECHNICAL SPECIFICATIONS green light will be solid when pairing is complete. Override RF Test Override RF Test - Class II. 15m is typical but this varies depending on the building boiler.
- Page 4 RTE0RFA • LCD Display OPERATING INSTRUCTIONS WIRELESS DIGITAL ROOM THERMOSTAT AND RECEIVER SETTINGS INITIAL POWER UP TABLE OF CONTENTS Overview ......................... 1 Controls and display ....................1 Note: ........................1 .......................... 1 ........................1 ........................ 2 PAIRING PROCEDURE ........................2 ............................
-
Page 5: What Is A Room Thermostat
OPERATING TROUBLESHOOTING TEMPERATURES SETTING is on: OVERRIDE TECHNICAL SPECIFICATIONS WHAT IS A ROOM THERMOSTAT FACTORY SETTINGS Set temperature NEOMITIS ® LIMITED - 4th Floor, Lincoln House, 300 High Holborn, London WC1V 7JH Registered in England and Wales No: 9543404 www.neomitis.com...
