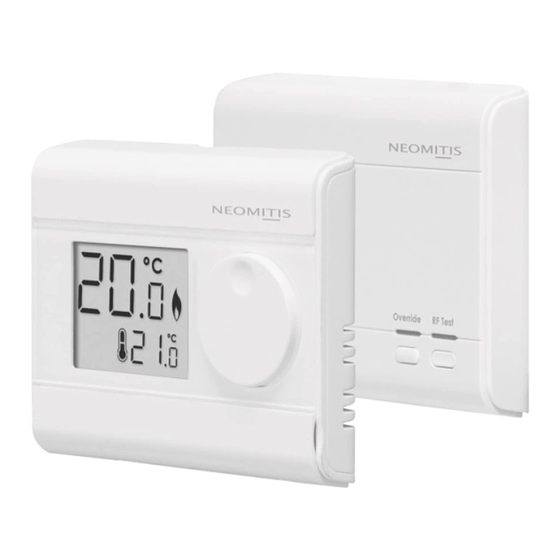

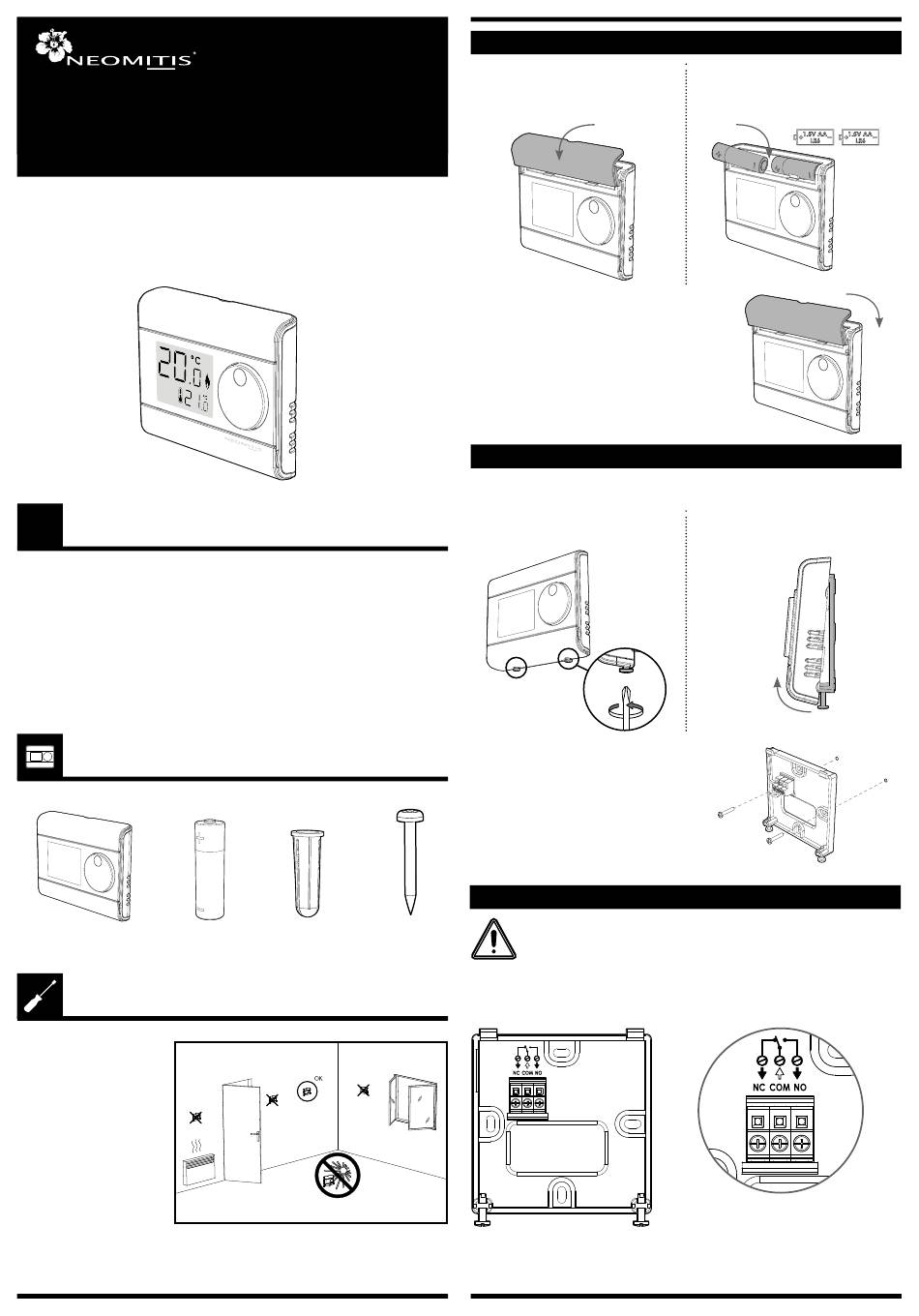

Neomitis RTE0A Installation Instructions

INSTALLATION
INSTRUCTIONS
WIRED DIGITAL ROOM
THERMOSTAT
TABLE OF CONTENTS
Pack contains ............................................................................................1
Installation ................................................................................................1
Installing batteries .............................................................................................................1
Mounting of wall mouting plate .......................................................................................1
Wiring ...............................................................................................................................1
Mounting of the Thermostat .............................................................................................2
Troubleshooting ........................................................................................2
Technical specifications .............................................................................2
PACK CONTAINS
x1
Thermostat
AA Batteries (LR6)
INSTALLATION
Recommended locations
for your thermostat.
To ensure that your ther-
mostat provides accurate
readings and controls effec-
tively, it must be installed
approximately 1.5 m above
floor level on an inside wall,
away from direct sunshine
and any other sources of heat
or cold such as radiators, cold
draughts, etc.
Important: The thermostat
measures the temperature of the place where it is installed. It does not take into
account the temperature differences that may exist between different locations in the
house if the temperature is not uniform.
RTE0REA NEO ENG DH V05 18 08 2020
RTE0A
x2 x2
Screw Anchor
INSTALLING BATTERIES
1- Remove the batteries cover which is
placed on the front of thermostat.
3- Replace the batteries cover.
MOUNTING OF WALL MOUTING PLATE
The digital room thermostat is fixed on the wall with the wall plate which is supplied
with the product.
1- Unscrew the 2 screws under the
thermostat.
3- Secure the wall plate with the two
screws provided using the horizontal
and vertical holes.
WIRING
All electrical installation work should be carried out by a suitably qualified
x2
Electrician or other competent person. If you are not sure how to install
Screws
this thermostat consult either with a qualified electrician or heating En-
gineer. Do not remove or refit the appliance onto the backplate without
the mains supply to the system being isolated.
All wiring must be in accordance with IEE regulations. This product is for fixed wiring
only.
2- Insert the 2 batteries AA supplied.
Note the correct polarity according to
the engraving on the thermostat when
inserting the batteries.
2- Remove the wall plate from the ther-
mostat.
x2
COM = Live
NC = Normally closed switch out (Satisfied)
NO = Normally open switch out (call for
heat)
