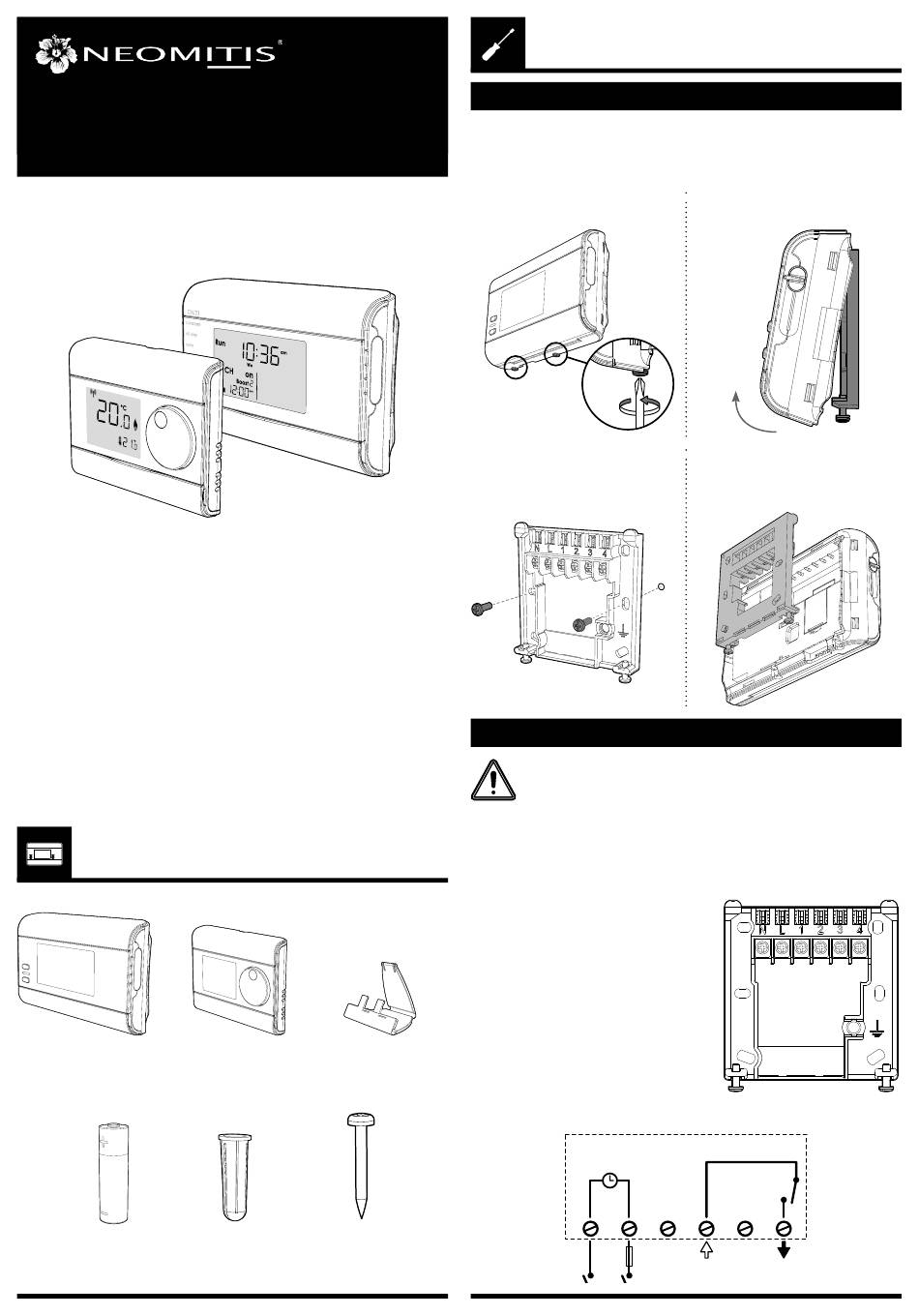

Neomitis TMR7RFa Installation Instructions Manual

INSTALLATION
INSTRUCTIONS
7 DAY SINGLE CHANNEL DIGITAL TIMER
WITH ROOM THERMOSTAT
Pack contains ............................................................................................1
Installation - Timer ....................................................................................1
Mounting of wall mouting plate .......................................................................................1
Wiring ...............................................................................................................................1
Mounting of the timer .......................................................................................................2
Installation - Thermostat ...........................................................................2
Installing batteries .............................................................................................................2
Mounting of room thermostat ..........................................................................................2
Pairing procedure ..............................................................................................................3
Installer settings ........................................................................................4
Advanced installer setting .................................................................................................4
Technical specifications .............................................................................5

PACK CONTAINS

x1
Timer
x2
AA Batteries (LR6)
TMR7RFA NEO ENG CP V03 18 05 2021
TMR7RFa
x1
Room thermostat Thermostat table stand
x4 x4
Screw Anchor Screws

INSTALLATION - TIMER

MOUNTING OF WALL MOUTING PLATE

For best performance, do not mount the timer on metal wall boxes and leave at least
30 cm distance from any metal objects including wall boxes and boiler housing.
The digital timer is fixed on the wall with the wall plate which is supplied with the pro-
duct.
1- Unscrew the 2 screws under the timer.
3- Secure the wall plate with the two
screws provided using the horizontal
and vertical holes.

WIRING

All electrical installation work should be carried out by a suitably qualified
Electrician or other competent person. If you are not sure how to install
this timer consult either with a qualified electrician or heating Engineer.
Do not remove or refit the appliance onto the backplate without the mains
supply to the system being isolated.
All wiring must be in accordance with IEE regulations. This product is for fixed wiring
only.
• Internal wiring
N = Neutral IN
L = Live IN
1 = Voltage free contact Feed IN 1
2 = Voltage free contact Feed IN 2
3 = Voltage free contact N.O. switching.
out 1
4 = Voltage free contact N.O. switching
x1
out 2
Note: for 230V switching, insert link between L and 2.
2- Remove the wall plate from the timer.
x2
4- In case of surface mounting, a knock
out area is provided on the wall plate
and on the corresponding area of the
timer.
Clock
N L 1 2 3
3A
max
N L
220V-240V~
4
1
