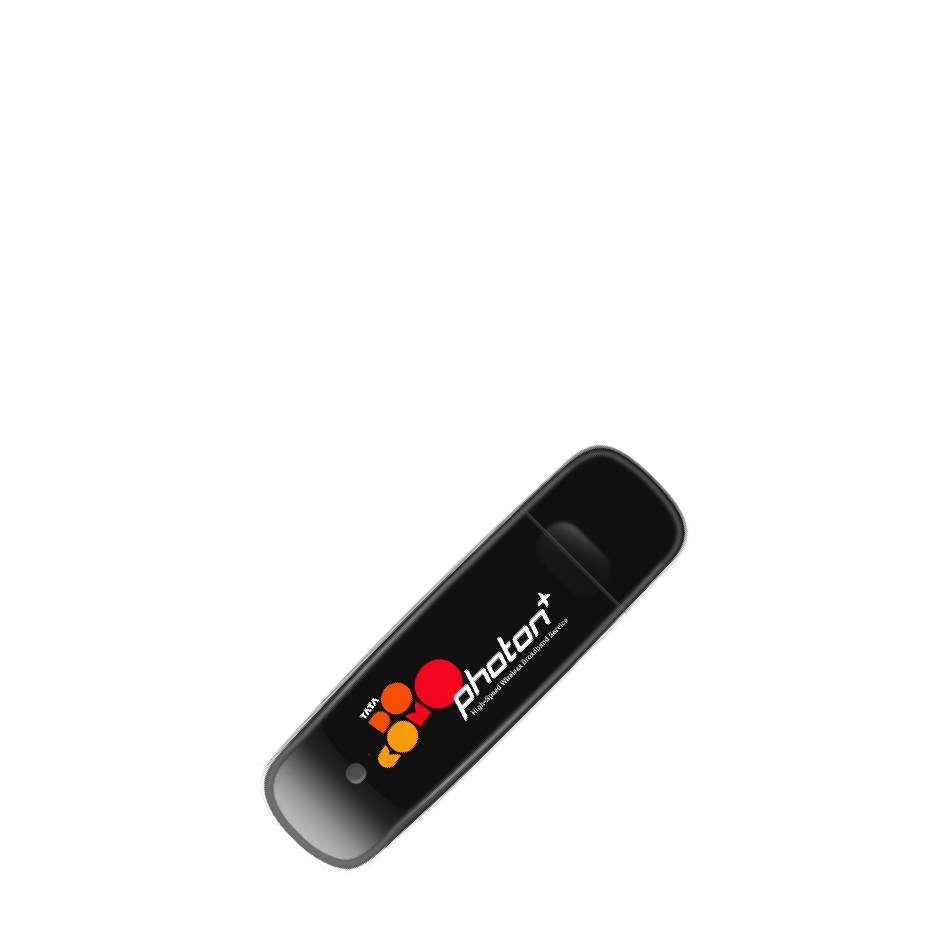

  • Page 1 AC2787 User Guide...
  • Page 2 ZTE Corporation. ZTE Corporation reserves the right to make modifications on print errors or update specifications in this manual without prior notice.

  • Page 3: Table Of Contents

    Table of Contents 1. Introduction...................... 1 2. Precautions ...................... 1 3. Appearance ...................... 3 4. Install and Uninstall..................4 4.1 System Requirements.................. 4 4.2 Installation and Uninstallation Procedure for Windows......... 5 4.3. Installation and Uninstallation Procedure for MAC OS ......11 4.4.
  • Page 4 6. Trouble-shooting ................... 28 6.1 Common Problems and Troubleshooting for Windows....... 28 6.2 Common Problems and Troubleshooting for Mac ........30 6.3 Common Problems and Troubleshooting for Linux ........31...

  • Page 5: Introduction

    1. Introduction Thank you for choosing AC2787 Photon Plus Wireless USB Modem (hereinafter referred to as USB Modem) of ZTE Corporation. The USB Modem equips with a standard USB interface and supports Photon Whiz, Photon Plus network. The USB Modem adopts two designing options: R-UIM and Built-in UIM, which make your operation more flexible.
  • Page 6 normal operation of operating system. ● Do not forcefully plug/pull the USB Modem to avoid the damage of connector. ● Do not use your USB Modem near weak signal or high-precision electronic devices. Radio wave interference may cause misoperation of electronic devices or other problems.

  • Page 7: Appearance

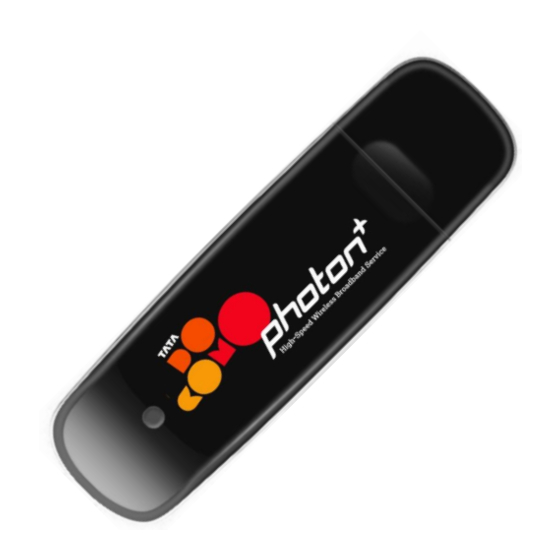

    3. Appearance USB Plug MEID LED light...

  • Page 8: Install And Uninstall

    4. Install and Uninstall 4.1 System Requirements The USB Modem supports the following operating system: Windows XP(32/64)/ Vista(32/64)/ 7(32/64)/ 8(32/64) MAC10.5.X, MAC10.6.X, Mac10.7.X, Mac 10.8/10.8.1/ 10.8.2 Linux(Ubuntu10.4/9.04/9.10, Fedora 9/10/12/13/14, OpenSUSE 11.1) PC minimum configurations: Pentium-II/233MHz USB interface 2.0 (USB1.0 and 1.1 compatible) Optical Drive CD-ROM (for installation only) Memory...

  • Page 9: Installation And Uninstallation Procedure For Windows

    4.2 Installation and Uninstallation Procedure for Windows Install a. Connect the USB Modem with PC via USB port. b. Install the Dialer & Driver. The installation will automatically start. Please follow installation wizard. If not, please go to the CD as shown in the figure below and open it and double click the “AutoRun.exe”...
  • Page 10 Click “Next” and then to accept agreement.
  • Page 11 Click “Next” and then choose a location path for installation and click “Install”. In case you do not have any specific location preference you may choose to continue with the default location and click “Install”.
  • Page 13 After finished, you will see a prompt to install an application called Tata Photon TV. This is an application which will enable you to watch Live TV Online anytime, anywhere. “Setup” will only install the application on your system. To subscribe, please visit the website http://www.tataphoton.com/tata-photon-photontv.aspx After installation of Photon TV, your system should be restarted to complete the...
  • Page 14 Uninstall Select Start All Programs Photon Plus AC2787 Uninstall , and you will be asked if you want to remove the program. Click “yes”. b. Please wait and then click “OK” when un-installation is completed.

  • Page 15: Installation And Uninstallation Procedure For Mac Os

    4.3. Installation and Uninstallation Procedure for MAC OS Install Connect the USB Modem with PC via USB port. b. Install the Dialer & Driver Open the CD-Rom, double click the dmg file:CrossPlatformUI-Vx.x.x.dmg。 Double click the icon of pkg file: Please click “Continue” to start the installation.
  • Page 16 Select the install location and the click “Install” button. When installation is successful click on the “Restart” button. Click the icon on the desktop and begin surfing.
  • Page 17 Uninstall Select Finder Applications ZTEMT UI CrossPlatform UI Uninstall.pkg, and you will be asked if you want to remove the program. Click “Yes” to uninstall. b. Please wait and then click “OK” to complete uninstallation.

  • Page 18: Installation And Uninstallation Procedure For Linux

    The setup package will omit the step of compiling the driver after confirming that the system version is Ubuntu9.04; instead, it would modify the system pilot configuration (menu.lst) in order to support different ZTE USB data cards.
  • Page 19 Note: You need insert USB data card when installing UI software under Ubuntu9.04 system, otherwise you will be unable to install the drivers for the USB modem a. Install the Dialer & Driver Open new terminal go to the path where the packets is, for example: cd ‘/home/ztemt/Desktop/ZTEMT USB MODEM/’.
  • Page 20 Get Started to Run UI When the installation is complete, you can run UI software. Re-insert the usb modem into USB port, wait for the driver to recognize USB...
  • Page 21 modem, and then run UI program. ● Two methods to run UI software: Click the shortcut menu: Applications->Internet-> ZTEMTUI Execute ztemtapp command through terminal program After running UI in this way, the following information will display on the terminal, which will be used to track the problem. If the shared library required by UI are not completely installed, you will see the system prompt of missing libaudio2 library after executing ztemtapp command.
  • Page 22 Click on the “Connect” button and start surfing. Un-installation of Application Software...
  • Page 23 Open new terminal,type the command below and press enter key to uninstall the dailer. sudo unztemtapp...

  • Page 24: Dialer Features

    Double-click this icon or select from Start All Programs Photon Plus AC2787 Photon Plus. Run the application to display the user interface. As soon as the installation is complete the default dialer will appear as follows Please click on the “Activate” button. The following screen appears. Please select the Prepaid/Postpaid option depending on the services that you wish to opt for.
  • Page 25 Please click on the “Activate” button. b. On clicking the “Activate” button, the following screen appears. The moving bars indicate that the activation is in progress. You may have to wait for a couple of minutes. Once activation is successful, you will see the following screen.
  • Page 26 d. Click on the “Connect” button and start surfing. In case the activation fails, the following sequence of steps needs to be followed In case activation is unsuccessful, you will see the following prompt. Please click on the “OK” button. The following screen will appear. Please click...

  • Page 27: Connect/Disconnect

    on the “Settings” button as shown in the below figure. Then select “Activate Wizard” and click “Activate” button. Please repeat the same sequence as started above to continue. 5.2. Connect/Disconnect Connect Click Settings icon to set the relevant parameters. b. Click Connect button to connect the Internet. Disconnect Click Disconnect button to disconnect from Internet.

  • Page 28: My Account

    Click Upgrade icon to view whether or not the upgrade version is available. If yes, please follow the wizard to upgrade. 5.4. My Account Click My Account icon to enter the web page: http://www.tatadocomo.com/myaccount.aspx. Note: The relevant information contained in connection records are just for user's reference rather than the charging basis.
  • Page 29 unauthorized use. Note: If enable Lock, password is required for Settings or Internet Connection. The terminal's initial password is 0000. Password can be reset by users. Profiles On this page, you could add new username, edit, delete the username, and set the default username.

  • Page 30: Help

    Information On this page, you could view “Dialer Information”, “Device Information”. Click Export to export to your local computer, and click Cancel to cancel. IP&DNS On this page, you could set “Use static IP address”, “Use DNS”. Click OK to save, and click Cancel to cancel.

  • Page 31: Options

    http:// www.tatadocomo.com/helpAC2787. Connect to Tata Docomo Forums Select “Connect to Tata Docomo Forums” to enter Tata Docomo Forums. About Select “About” to enter “Settings Information” page. For details, please refer to the descriptions in “Settings Information”. 5.7. Options Click Options to view the Options file. Test Photon Plus Device If your device could not normally run, please select “Test Photon Plus Device”...

  • Page 32: Trouble-Shooting

    6. Trouble-shooting 6.1 Common Problems and Troubleshooting for Windows Common problems Troubleshooting steps Can't restart the PC after Please check if the T card is inserted into the device or not. If installation. so, remove the T card and restart the PC. No CD-ROM disk ordinal Please check if the system service named “UDisk Monitor”...
  • Page 33 Frequent disconnection Please disable firewall settings in the Control Panel and disable the Antivirus in Control panel settings. Check the signal drop/fluctuation in the dialer. Can't auto set up Please open "My Computer" to enter CD-ROM disk ordinal, installation program and double-click the Setup.exe to install manually.

  • Page 34: Common Problems And Troubleshooting For Mac

    6.2 Common Problems and Troubleshooting for Mac Common problems Troubleshooting steps Opening port failed. Please check if the port is occupied by other applications, such as "Hyper terminal", or if the software has already run. Close relevant applications and run the software again. Internet connection Please check if the network settings in dialer are configured failure.

  • Page 35: Common Problems And Troubleshooting For Linux

    6.3 Common Problems and Troubleshooting for Linux Common problems Troubleshooting steps Prompt with “insmod Please restart the PC because the driver module is not well ztemt.ko failure” during compatible with the system. Remove the dialer and install it the installation again.
