Page 1: User Manual

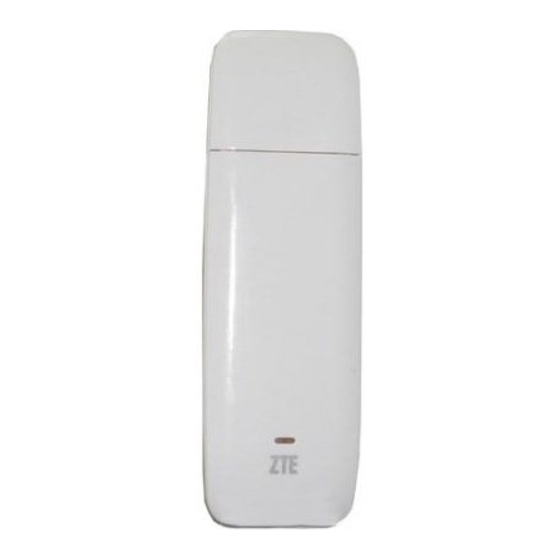

ZTE AX320 WiMAX USB MODEM USER MANUAL ZTE AX320 WiMAX USB MODEM USER MANUAL... - Page 2 ZTE Corporation. The manual is published by ZTE Corporation. We reserve the right to make modifications on print errors or update specifications without prior notice. Version: Release 1.0...
-
Page 3: Table Of Contents
ZTE AX320 WiMAX USB MODEM USER MANUAL TABLE OF CONTENTS Introduction ............................... 5 1.1 Welcome to ZTE AX320 WiMAX USB MODEM ................5 1.2 Safety Warning and Notice ......................5 To the user ............................5 Modem............................... 6 In Aircraft ............................6 1.3 Cleaning and Maintenance ...................... - Page 4 ZTE AX320 WiMAX USB MODEM USER MANUAL The extended view of FreshTel Internet Access Interface ............... 19 4.1 The extended views ........................19 4.2 Updating FreshTel Internet Access ....................21 FAQs ................................. 22...
-
Page 5: Introduction
The pictures, symbols and contents in this manual are just for your reference. They might not be completely identical with your Modem. Please subject to the real object. ZTE operates a policy of continuous development and reserves the right to update and modify the technical specifications in this document at any time without prior notice. -
Page 6: Modem
ZTE AX320 WiMAX USB MODEM USER MANUAL There are no user serviceable parts inside the Modem. Unauthorized dismantling or repair of the Modem will void the warranty. This Modem generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 7: Limitation Of Liability
(f) Use of the product with any unauthorized third party products such as generic chargers. (g) Any other cause beyond the range of normal usage for products. End User shall have no right to reject, return, or receive a refund for any product from ZTE under the above-mentioned situations. -
Page 8: Led Indications
ZTE AX320 WiMAX USB MODEM USER MANUAL 1.9 LED Indications Your Modem gives you at-a-glance status information via its LED indicator. Here’s a list of indicators and meanings: Green status light Solid Green indicates the Modem is powered and service is available. -
Page 9: Installing And Uninstalling The Modem
ZTE AX320 WiMAX USB MODEM USER MANUAL Installing and Uninstalling the Modem 2.1 System Requirements The system requirements provided here reflect only the standards required to install and run FreshTel Internet Access. Please see your Modem support documentation for additional specifications. - Page 10 ZTE AX320 WiMAX USB MODEM USER MANUAL 1) When you insert the Modem into your computer for the first time, the below screen should appear automatically, please click Next button. Note: Some antivirus software and firewall software will prevent the CD-ROM Autorun. If the below screen does not appear automatically, you need to check the configuration of your computer and make sure that the CD Self-start function is turned on.
- Page 11 ZTE AX320 WiMAX USB MODEM USER MANUAL 3) Click Install button to begin installation. 4) Install in progress. 0 800 30 30 03 www.freshtel.ua...
-
Page 12: Removing The Modem Safely
ZTE AX320 WiMAX USB MODEM USER MANUAL 5) Click Finish button to finish installation. After the installation, a shortcut icon will be created on the desktop, and FreshTel Internet Access and Uninstall FreshTel Internet Access program groups will be in the computer Start > Programs > FreshTel Internet Access menu. - Page 13 ZTE AX320 WiMAX USB MODEM USER MANUAL Right click on FreshTel Internet Access icon on the Windows tray. Click on Exit to confirm that you want to exit it. Click Start > (All) Programs >FreshTel Internet Access> Uninstall FreshTel Internet Access.
-
Page 14: The Compact View Of Freshtel Internet Access Interface
ZTE AX320 WiMAX USB MODEM USER MANUAL The compact view of FreshTel Internet Access Interface 3.1 The compact view FreshTel Internet Access Interface will appear in a compact view in down-right part of the screen as shown below. You will browse the page www.freshtel.ua, when you click Operator Logo... -
Page 15: Connection Status
ZTE AX320 WiMAX USB MODEM USER MANUAL 3.3 Connection Status Modem not found: The modem is not connected. Activating modem: The modem is being searched. Modem connected: The modem is found. Ready to connect: When the modem search WiMAX network, Ready to connect is displayed. Input the Login and Password, click Connect to connect to WiMAX network. - Page 16 ZTE AX320 WiMAX USB MODEM USER MANUAL If Autoconnect option in Setting tab of extended view is set before, Connect is disabled and the connection procedure will begin automatically. Connecting: The modem is establishing a connection to WiMAX network. IP obtaining: Your modem is obtaining an IP-address.
-
Page 17: Disconnection Status
ZTE AX320 WiMAX USB MODEM USER MANUAL When the modem has connected, bars indicating the signal strength shall appear in the center area of the compact mode interface. Error or limited access: This massage will appear if you have entered wrong login or password, if don’t have enough money to pay for services or an error happened during the connection process. - Page 18 ZTE AX320 WiMAX USB MODEM USER MANUAL Disconnected: the Modem has disconnected from the WiMAX network. 0 800 30 30 03 www.freshtel.ua...
-
Page 19: Zte Ax320 Wimax Usb Modem User Manual
ZTE AX320 WiMAX USB MODEM USER MANUAL The extended view of FreshTel Internet Access Interface 4.1 The extended views There are three tabs in extended views of FreshTel Internet Access Interface. Operator Logo is for browse URL www.freshtel.ua. The Modem/Connection status line lies above three tabs, which indicates the current state of the Modem and Connection. - Page 20 ZTE AX320 WiMAX USB MODEM USER MANUAL enables the updates procedure for regular updates. There are three Interface Language selection option boxes at the bottom of current tab. You can select your language from Ukrainian, English and Russian. All messages in user interface shall be changed immediately once the language is changed.
-
Page 21: Updating Freshtel Internet Access
ZTE AX320 WiMAX USB MODEM USER MANUAL 4.2 Updating FreshTel Internet Access You can update FreshTel Internet Access version by two different types – regular and critical. The regular update is chosen by checking Notify if newer Freshtel Internet Access is available in Setting tab of the extended views. -
Page 22: Faqs
ZTE AX320 WiMAX USB MODEM USER MANUAL FAQs When you meet the following problems in service, please refer to the following answers to solve it. If the problems still exist, please contact with network operator. Problem Description Possible Causes Problem Solving...
