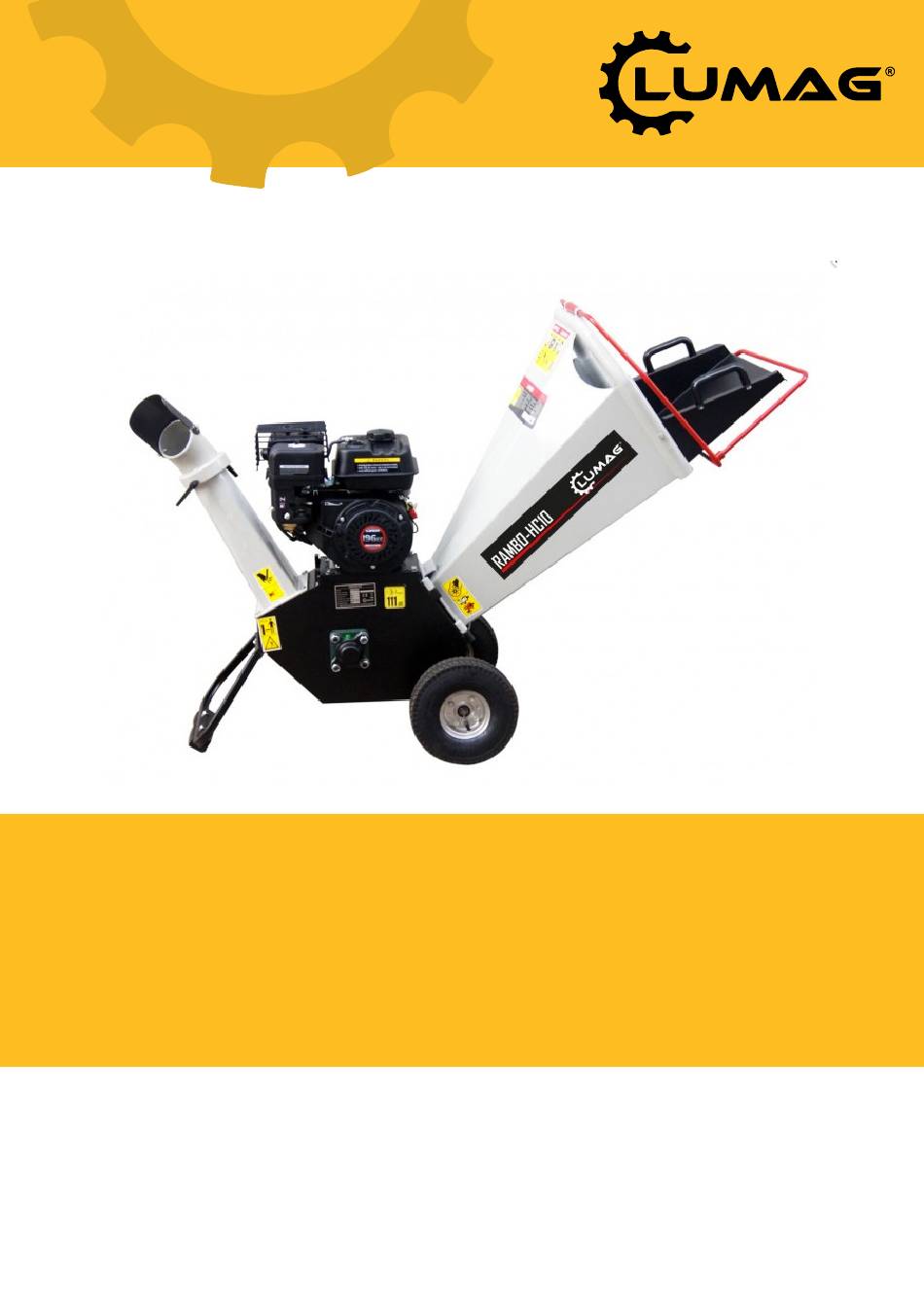

  • Page 1 Distribution Limited Petrol Wood Chipper Operator’s Manual RAMBO-HC10 FOR YOUR SAFETY READ AND UNDERSTAND THE ENTIRE MANUAL BEFORE OPERATING THIS MACHINE...
  • Page 3: Table Of Contents

    Table of Contents Table of Contents PART I: General Safety Rules ......................2 PART II: Familiar with the Wood Chipper ..................8 PART III: Operating the Wood Chipper ................... 9 PART IV: Maintaining the Wood Chipper ..................11 PART V: Troubleshooting and Parts List ..................13 Conventions used in this manual WARNING This indicates a hazardous situation, which, if not avoided, could result in death or serious...
  • Page 4: Part I: General Safety Rules

    Part I: General Safety Rules PART I: General Safety Rules Safety Labels Found on Your Unit...
  • Page 5 Part I: General Safety Rules WARNING Read this Safety & Operating Instructions manual before you use the Wood Chipper. Become familiar with the operation and service recommendations to ensure the best performance of your machine. Propose CAUTION This machine is designed solely to chip wood and must not be used for any other purpose. It should only be used by trained operators who are familiar with the content of this manual.
  • Page 6 Part I: General Safety Rules Before using the wood chipper NOTICE A. Operators must be fully trained before using this machine. B. User Manual is read and understood. C. Machine is positioned on level ground, all guards are fitted and in good condition. D....
  • Page 7 Part I: General Safety Rules Safety for Children and Pets WARNING Tragic accidents can occur if the operator is not alert to the presence of children and pets. Children are often attracted to the machine and the chipping activity. Never assume that children will remain where you last saw them.
  • Page 8 Part I: General Safety Rules required, see your authorized dealer for engine governor adjustments. Keep combustible substances away from the engine when it is hot. Never cover the machine while the muffler is still hot. K. Do not operate the engine with the air cleaner or the carburetor air intake cover removed.
  • Page 9 Part I: General Safety Rules N. Use the machine only in daylight. O. Stay alert for hidden hazards or traffic. Keep all nuts and bolts tight and keep the equipment in good operating condition. A Note to All Users List of warnings and cautions cannot be all-inclusive. If situations occur that are not covered by this manual, the operator must apply common sense and operate this WOOD CHIPPER in a safe manner.
  • Page 10: Part Ii: Familiar With The Wood Chipper

    Part II: Familiar with the Wood Chipper PART II: Familiar with the Wood Chipper It may be helpful to familiarize yourself with the controls and features of the Wood Chipper. If you have any question, please contact the dealers in your area. TECHNICAL SPECIFICATIONS Start Recoil Start...
  • Page 11: Part Iii: Operating The Wood Chipper

    Part III: Operating the Wood Chipper PART III: Operating the Wood Chipper It may be helpful to better familiarize yourself with the features of your Wood Chipper before beginning the steps outlined in this chapter. WARNING A. Read and understand all instructions, safety precautions, and/or warnings listed in “PART I: General Safety Rules”...
  • Page 12 Part III: Operating the Wood Chipper Stopping Move the Throttle Lever to IDLE. Recoil Start: Turn the Ignition Switch to the OFF position. Electric Start: Turn the Key to the OFF position. Operator Zone Wood Chipping NOTICE Woods’ and branches’ diameter should be no bigger than 120mm. WARNING Do not place your hands into the chute when loading.
  • Page 13: Part Iv: Maintaining The Wood Chipper

    Part IV: Maintaining The Wood Chipper PART IV: Maintaining the Wood Chipper Regular maintenance is the way to ensure the best performance and long life of your machine. Please refer to this manual and the engine manufacturer's user manual for maintenance procedures.
  • Page 14 Part IV: Maintaining The Wood Chipper Lubrication NOTICE All Bearings of your Chipper are sealed units and should have sufficient lubricant to last the life of your machine with normal use. Greasing the rack and Pinion NOTICE All the rack and pinion should be greased before every use.
  • Page 15: Part V: Troubleshooting And Parts List

    Part VI: Troubleshooting and Parts List PART V: Troubleshooting and Parts List Most problems are easy to fix. Consult the Troubleshooting Table below for common problems and their solutions. If you continue to experience problems, contact the dealers in your area. WARNING Before performing any maintenance procedure or inspection, stop the engine, wait five minutes to allow all parts to cool.
  • Page 16 Part VI: Troubleshooting and Parts List Ø Operator Lever Lever not all the way forward when rack comes under full load. Snapping out of gear or Push lever quicker and more forcefully into the full forward not staying in gear. position.
  • Page 17 Part VI: Troubleshooting and Parts List Explosion View Ref.No. Description Ref.No. Description foundation Discharge chute Roller Chute adjust Blade engine Wheel axis Engine fixation plate Wheel In-feed Pulley Emergency stop fixation Belt Rubber fixation Belt cover Emergency stop Clutch spring Belt inner cover rubber Bearing...
