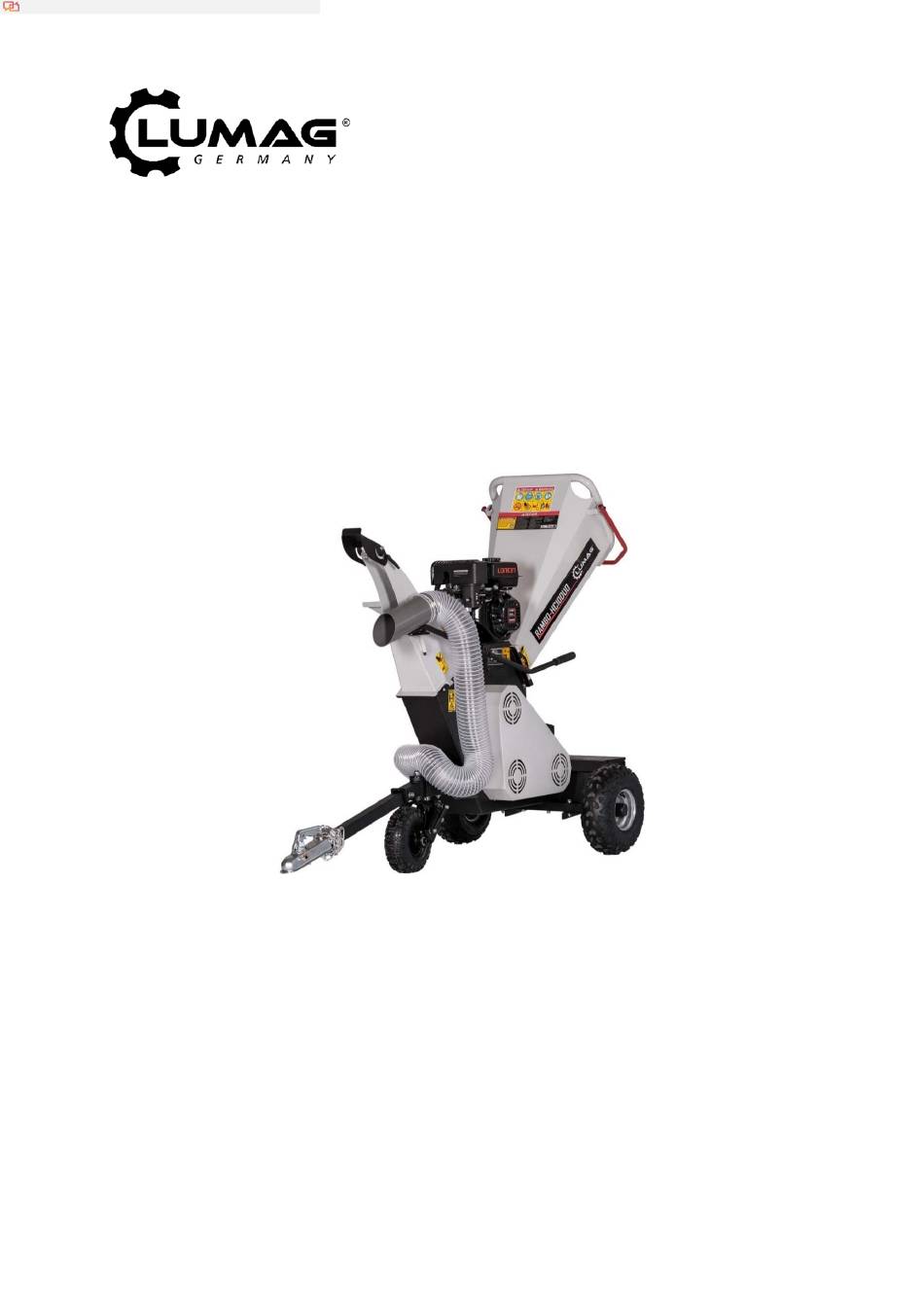

PETROL COMBI-CHIPPERS
original operating instructions
RAMBO‐HC10DUO
ATTENTION! The machine is delivered without engine oil and without fuel.
Both the model number and the serial number can be found on the nameplate on the machine.
You should keep both numbers safe so that you can access them in the future. This
Instructions explain the functions and applications of the machine.
FOR YOUR SAFETY
Before using the device, read the operating instructions,
Safety and warning instructions must be observed!

Advertisement

loading
Need help?

Need help?

Do you have a question about the RAMBO-HC10DUO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lumag RAMBO-HC10DUO

Summary of Contents for Lumag RAMBO-HC10DUO

  • Page 1 Translated from German to English - www.onlinedoctranslator.com PETROL COMBI-CHIPPERS original operating instructions RAMBO‐HC10DUO ATTENTION! The machine is delivered without engine oil and without fuel. Both the model number and the serial number can be found on the nameplate on the machine. You should keep both numbers safe so that you can access them in the future.
  • Page 2 20. Troubleshooting 11. Scope of delivery 21. Warranty/Guarantee/Customer Service 12th assembly 22. EC Declaration of Conformity 13. Drive type 23. Components RAMBO-HC10DUO 13.1 Gasoline engine 13.2 Refueling 13.2.1 Filling engine oil 13.2.2 Refueling 14. Commissioning 14.1 Preparation for the deployment site 14.2 Startup process...
  • Page 3 - see cover page. 1.1 Information on the operating instructions 1.4 Copyright This operating manual provides important information on how to use the RAMBO-HC10DUO All documents are protected by copyright. The petrol combination shredder. The prerequisite for distribution and reproduction of documents,...
  • Page 4 2. Intended use Persons who are not familiar with the operating instructions, children, young people and persons under the influence of alcohol, drugs or medication are not permitted to operate the machine. The petrol combination shredder - RAMBO- HC10DUO - with two basic functions is used to shred branches up to 10 cm thick.
  • Page 5 5. Security 5.2 Safety instructions This section provides a comprehensive WARNING! overview of all important safety aspects for adequate protection of the operator as well as Familiarize yourself with the machine. for safe and trouble-free operation. Proper training is a prerequisite for working safely with this machine.
  • Page 6 and endanger other persons through improper Operation use. First-time users should seek instruction from WARNING! the seller to familiarize themselves with the The shredded material is ejected from the characteristics of the machine, its intended use machine at high speed. Always wear and the necessary safety devices.
  • Page 7 If handled improperly, the sharp edges of end of work the knives can pose a significant risk of Do not leave the machine unattended while injury.Make sure that the two chopping blades the engine is running. and the counter blade are correctly installed and securely fastened.
  • Page 8 5.4 Transport must not be put into operation with such damage. When transporting the machine on a vehicle or Close the tank cap properly after refueling. trailer and before moving it to another location, switch off the engine and wait until the work tools have come to a standstill.
  • Page 9 Work on the electrical system may only be carried out by qualified electricians. Flying parts while working Only use original LUMAG spare parts and When chopping or vacuuming, green waste, accessories. The use of other spare parts and branches, chips or splinters can fly away and accessories increases the risk of accidents.
  • Page 10 6. Warning and information Thermal residual hazards symbols used burns, chilblains Touching hot surfaces can cause burns. → Allow the engine to cool down. Always ensure that Symbols are provided on the machine to provide important information about the the engine is adequately ventilated. product and instructions for use.
  • Page 11 with Carry you safety shoes Keep bystanders away from the work steel caps. area. chopping of branches of all kinds Wear protective gloves. up to max. 100 mm diameter, depending on the type and freshness of the wood. Wear eye protection. sound power level on the machine Wear hearing protection.
  • Page 12 7. Part designation 7.2 gasoline engine 7.1 Shredder Foldable filling funnel (branches) with quick release gasoline engine Engine switch (ignition switch) Hand deflector flap starter handle Foldable discharge chute with recoil starter quick release choke lever Foldable filling funnel (leaves) with fuel tap quick release air filter...
  • Page 13 8. Functions oil filler plug with dipstick (13) The engine oil is filled into the dipstick holder. The dipstick must NOT be screwed down to check the oil level. 8.1 Engine engine switch (ignition switch) (1) oil drain plug (12) The engine switch in the OFF position prevents The oil drain plug is located on the back the machine (engine) from starting.
  • Page 14 The parking brake blocks the support wheel of the machine and ensures that it does not roll away after parking. model number RAMBO-HC10DUO drive LONCIN G170F deflector flap (3) 4-stroke OHV gasoline engine The throwing distance of the shredded material can 212 cm³...
  • Page 15 10. Technical Description 9.1.1 Safety circuit (EMERGENCY STOP) The machine with double feed hoppers is used WARNING! for shredding woody material or shredding dry leaves and green waste, preferably in the Before connecting, the engine switch must be garden area. A switch lever on the lower feed turned to the OFF position.
  • Page 16 11. Scope of delivery After unpacking, check the contents of the box or transport box for: completeness Possible transport damage Report any complaints to the dealer or manufacturer immediately. Complaints made later will not be accepted. The machine is delivered partially disassembled.The assembly work in point 12 must be observed.
  • Page 17 You can reach us by email: – Wear a protective helmet during lifting and transport operations. info@lumag-maschinen.de or by phone at +49 8571/92 556-0. To simplify the assembly process, we have CAUTION! divided the assembly instructions into several steps.
  • Page 18 At the lower end of the rotor frame there is a Step 2: Mount complete wheels (F) mount for mounting the wheel axle. Mount the wheels on the outside of the axle. 1. Remove the two middle M10 screws on the axle.
  • Page 19 Step 3: Mount the support wheel (G) and cover (H) Mount the support wheel together with the cover to the square guide on the rotor frame. fastening material 1. Pre-assembled (screws, nuts, snap ring and the corresponding washers) from the square guide.
  • Page 20 Step 4: Tire pressure: max. 2 bar Install the upper filling funnel for branches (B) Now lower the assembly with the mounted wheels and the support wheel and remove the straps. Mount the filling funnel for the branches on the rotor frame.
  • Page 21 Step 5: Install safety bar (EMERGENCY Connect safety circuit (EMERGENCY STOP) STOP) (I) Connect the cable (a) on the underside of the branch hopper to the motor cable (B). Mount the EMERGENCY STOP bracket on the EMERGENCY STOP frame of the branch filling hopper. fastening material 1.
  • Page 22 Step 6: Step 7: Install the ejection chute (D) Install the lower filling funnel for leaves (C) Mount the discharge chute to the rotor frame. Mount the leaf hopper onto the rotor frame. 1. Position the discharge chute so that the straps on the discharge chute line up with the mounts on the rotor frame.
  • Page 23 Step 8: Install suction hose (J, K, L) Mount the suction hose to the filling funnel for the leaves. Installing the suction hose 1. Remove the fastening material (screws, nuts and the corresponding washers) from the three stud bolts and remove the cover plate (a) on the filling funnel for the leaves.
  • Page 24 Step 9: Assemble the tool box (O, P) There is a mount on the wheel axle for mounting the tool box. 1. Remove the remaining M10 screws on the wheel axle. 2. Screw both brackets for the tool box to the wheel axle using 2 M10 screws, snap rings, washers and nuts.
  • Page 25 Step 10 Drawbar with trailer coupling (N) mount Mount the pull rod to the base. 1. Pre-assembled fastening material (screw, nut and corresponding washers) from the pull rod. 1. Insert the pull rod into the square socket and mount it on the support wheel with the M10 screw, washer and nut.
  • Page 26 13. Drive type Check engine oil level Turn off the engine and let it cool down. 1. Unscrew the dipstick. 13.1 Gasoline engine 2. Wipe the dipstick with a clean cloth and reinsert it, do not screw it in. The machine is powered by a petrol engine. For information on starting and stopping the Pull out the dipstick again and read the oil level;...
  • Page 27 13.2.2 Refueling refueling 1. Turn the fuel tap to OFF. 2. Clean the area around the fuel tank cap of dirt and foreign objects. DANGER! 3. Unscrew the tank cap. 4. Fuel tank withgasoline (RON95)To allow health risk of explosion through room for the gasoline to expand, do not fill Combustion engine.
  • Page 28 14. Commissioning When shredding, shredded material, stones, etc. can be sprayed away. No other people or animals may be in the ejection area = danger zone. The machine must not be set up on a sloping surface. Particular care must be Also pay attention to vehicles, windows and taken to ensure that the floor does not other objects so that they are not damaged.
  • Page 29 now gradually return it to OPEN/RUN while the engine warms up. DANGER! Do not start the engine in enclosed spaces. The To operate, open the throttle lever (8) fully and exhaust fumes contain carbon monoxide, which is slowly move it towards HIGH/FAST (=RABBIT). very toxic if inhaled! WARNING! Warning of hot surfaces!
  • Page 30 COMMISSIONING (14.2) startup process described. 14.5 Idle speed When not chopping, move the throttle lever (8) to the LOW position to reduce the load on the engine. Reducing the engine speed when idling extends the life of the engine, saves fuel and reduces noise levels.
  • Page 31 For constipation: 15th operation Before each use, check the machine for: – loose screws and nuts Switch off the engine and remove the spark plug – damaged rubber flap in the feed hopper, connector for safety reasons! replace if necessary –...
  • Page 32 Stones, roots with soil, glass, fabric scraps, plastic and metal parts, food waste. IMPORTANT NOTE! conifer pruning waste similar The hardness of the branches to be chopped dense cuttings depends on the type of wood, the time lead to blockages. between cutting and chopping, and the dryness of the branches.
  • Page 33 Slowly and carefully feed the shredded DANGER! material into the lower hopper. Use a stick Always use only one of the two to guide it. basic functions. Do not put too much material into the In case of unexpected circumstances, never hesitate hopper and do not force it into the hopper to operate the safety lever (EMERGENCY STOP) (12) with too much pressure!
  • Page 34 – Non-slip safety shoes – Safety glasses with side protection when working on pressurized components or near pressurized systems Only use original LUMAG spare parts. Other parts can cause unforeseeable damage and injuries. Work on the electrical equipment may only be carried out by qualified electricians.
  • Page 35 16.2 Maintenance plan The following sections describe the maintenance work required to ensure optimal and trouble-free operation. After After After Every Before 25 Bh* 30-50 season everyone everyone respectively Requirement maintenance work Bra* Bra* first 1 bra* 5 Bh* Check the machine ■...
  • Page 36 16.3 Lubricants IMPORTANT NOTE! Fuels and lubricants used must comply with the operator's operating fluids regulations and the specified specifications; if necessary, consult the supplier. fuel module specification filling quantity fuel Motor 3.0 liters gasoline ROZ95 or higher 10W-30 or Motor 0.6 liters engine oil...
  • Page 37 16.4 Knife 16.3.2 Engine oil change Knives are blunt when – the chopping noise sounds heavy. – the chopping speed has decreased IMPORTANT NOTE! significantly. The engine oil must be changed after the first 5 hours – the drive belt slips despite tension. of operation.
  • Page 38 16.5 Drive belt The hammer mechanism of the lower filling funnel for leaves consists of 2 hammer knives and 4 flail knives M8 (10.9). IMPORTANT NOTE! Check the condition of the four drive belts before each use. Drive belts must be pre- tensioned so that they can be pushed through approximately 8-10 mm in the middle using thumb pressure.
  • Page 39 All parts or pulleys should be driven, while the 16.6 Changing/cleaning the air filter drive belts run smoothly and evenly after replacement. Interval: when worn DANGER! Risk of fire and explosion when handling worn long, damaged flammable liquids! Always replace drive belts with new original drive belts.
  • Page 40 16.7 Check/change/clean spark plug 16.8 Safety devices Check safety devices (EMERGENCY STOP) for functionality and perfect technical condition; replace damaged components if necessary. DANGER! Danger of burns! Interval: weekly The engine and parts (e.g. exhaust muffler or cooling fins) heat up considerably during operation. Observe cooling times.
  • Page 41 16.12 Check and tighten fastening 16.11 Cleaning the machine elements Check the machine for dirt after use. Any dirt that has accumulated inside the machine turn off machine against (branches, wood residues, dust, green leaves, Secure against restarting. etc.) must be removed. 1.
  • Page 42 17th transport 17.2 Transport with chassis 1. Attach the trailer hitch to the towing vehicle. 2. Connect the safety chain to the towing DANGER! vehicle. 3. Check tire pressure, max. 2 bar Danger of burns from hot surfaces on the engine! DANGER! If the machine is uncoupled from the towing...
  • Page 43 18. Storage 19. Disposal Storage of the machine and temporary When the machine is no longer serviceable and decommissioning. is to be scrapped, it must be deactivated and dismantled, that is, it must be brought to a condition where it can no longer be used for Store the machine under the following conditions: the purposes for which it was designed.
  • Page 44 20. Troubleshooting WARNING! Any faults in the machine or engine that require major intervention should always be repaired by your LUMAG specialist workshop or an authorized specialist workshop. Improper intervention will void the warranty. Before any troubleshooting – Turn off the machine –...
  • Page 45 The guarantee for LUMAG products is 24 months for exclusively private use, and 12 months for commercial or Service time: Monday to Thursday from 7.30 a.m.
  • Page 46 22. CE declaration of conformity In accordance with the provisions of the EC directives Machinery Directive 2006/42/EC EMC Directive 2014/30/EU explains the company LUMAG GmbH Rudolf-Diesel-Straße 1a D-84375 Kirchdorf a.Inn Phone: +49 8571 / 92 556-0 Fax: +49 8571 / 92 556-19...
  • Page 47 23. Components RAMBO‐HC10DUO WARNING! All repairs to the machine must be carried out by authorized personnel. Any necessary electrical work should only be carried out by an authorized specialist.
  • Page 48 Subject to change! Version RAMBOHC10DUO (07.2024 D) LUMAG specialist dealer can be found at: www.lumag-maschinen.de LUMAG GmbH Rudolf-Diesel-Str. 1a D-84375 Kirchdorf a.Inn Germany Internet:www.lumag-maschinen.de...
