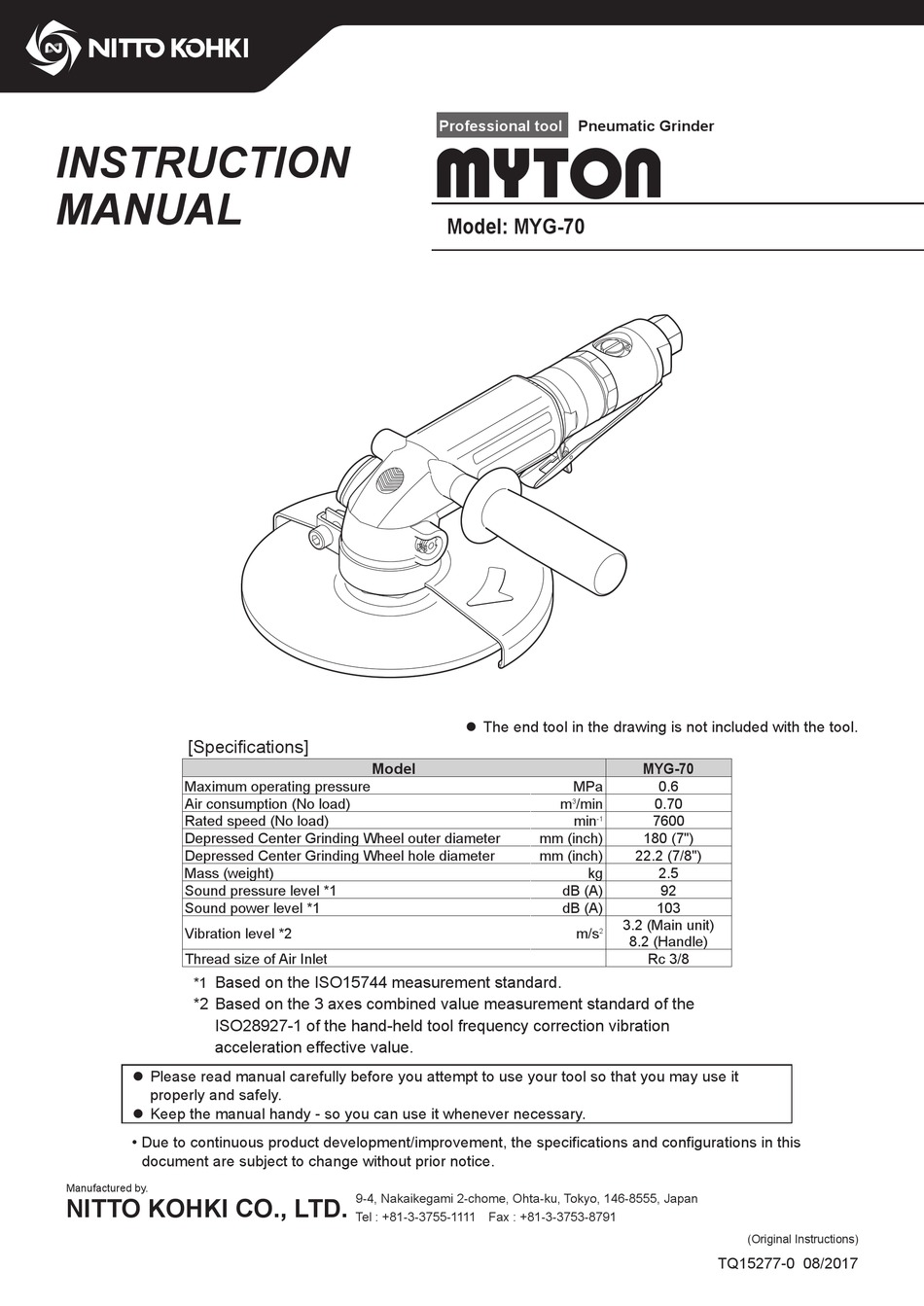

Nitto Kohki MYTON MYG-70 Instruction Manual

INSTRUCTION
MANUAL
[Specifications]
Maximum operating pressure
Air consumption (No load)
Rated speed (No load)
Depressed Center Grinding Wheel outer diameter
Depressed Center Grinding Wheel hole diameter
Mass (weight)
Sound pressure level *1
Sound power level *1
Vibration level *2
Thread size of Air Inlet
Based on the ISO15744 measurement standard.
*1
*2 Based on the 3 axes combined value measurement standard of the
ISO28927-1 of the hand-held tool frequency correction vibration
acceleration effective value.
 Please read manual carefully before you attempt to use your tool so that you may use it

properly and safely.
 Keep the manual handy - so you can use it whenever necessary.

• Due to continuous product development/improvement, the specifications and configurations in this
document are subject to change without prior notice.
Manufactured by.
NITTO KOHKI CO., LTD.
Professional tool
Model: MYG-70
 The end tool in the drawing is not included with the tool.

Model
9-4, Nakaikegami 2-chome, Ohta-ku, Tokyo, 146-8555, Japan
Tel : +81-3-3755-1111 Fax : +81-3-3753-8791
Pneumatic Grinder
MYG-70
MPa 0.6
m /min 0.70
3
min 7600
-1
mm (inch) 180 (7")
mm (inch) 22.2 (7/8")
kg 2.5
dB (A) 92
dB (A) 103
3.2 (Main unit)
m/s
2
8.2 (Handle)
Rc 3/8
(Original Instructions)
TQ15277-0 08/2017
