Nitto Kohki L-25B Instruction Manual

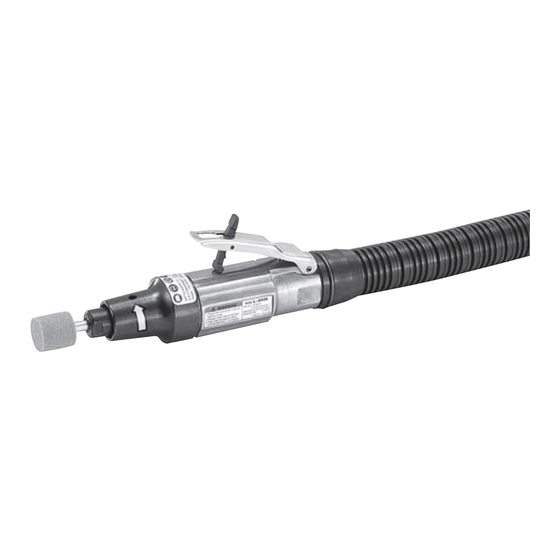

PNEUMATIC DIE GRINDER
Please read this manual carefully before you attempt to use
your tool so that you may use it properly and safely.
AIR SONIC
PROFESSIONAL TOOL
Model
Maximum Operating
Air Consumption (No load)
Rated Speed (No load)
Size of Collet Chuck
Mass (Weight)
Sound Pressure Level
Sound Power Level
Vibration Level
Thread Size of Air Inlet
Due to continuous product development/improvement the specifications and configurations in this
document are subject to change without prior notice.
Keep the manual handy – so you can use it whenever necessary.
L-25B, L-35C, AL-55
Model
Specifications
L-25B
MPa
3
m /min 0.4
-1
min 27,000
mm 6
kg 0.6
dB (A) 76
dB (A) 87
2
m/s 0.4
Rc1/4
L-25B
L-35C
AL-55
L-35C AL-55
0.6
0.35 0.17
37,500 56,500
6 3
0.45 0.25
76 71
87 82
0.6 0.4
Rc1/4 G1/4
Manufactured by :
NITTO KOHKI Co., Ltd.
2-9-4, Nakaikegami, Ohta-ku,
Tokyo, 146-8555, Japan
TEL : (81)-3-3755-1111
FAX : (81)-3-3753-8791
E-mail : overseas@nitto-kohki.co.jp
URL : www.nitto-kohki.co.jp
Original Instructions
