CONNECTIONS
2.
1.

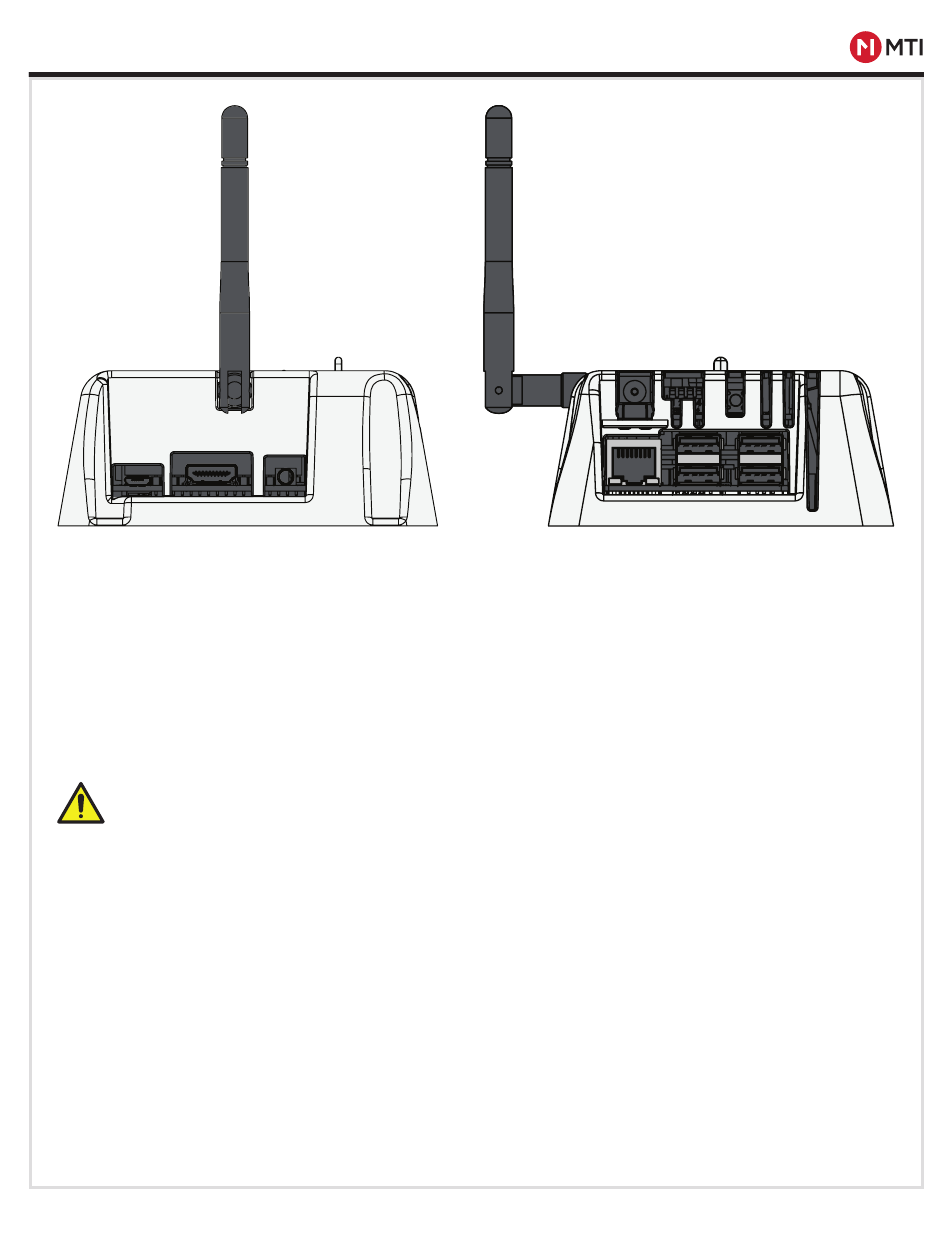

1. Auxiliary Micro USB Power Port - Used for installation and maintenance
2. HDMI Port - Used for installation and maintenance
3. Audio/Video 3.5mm Port - Used for installation and maintenance
4. Primary Power Port - The standard power input. Connect a 5V power supply, rated for 10 watts or more (not
exceeding 15W)
5. Dipswitches - Sets configurations at installation. Refer to dipswitch setting table in appendix.
6. Reset button - Used to reset the list of whitelisted IntelliKeys
7. Ethernet port - Connect an Ethernet (RJ45) cable from a router or a broadband modem for network or Internet
access. The two lights next to the connector indicate the connectivity status and network activity.
Warning: Ports designated as "used for installation and maintenance" must not be accessed by end users. Only MTI-
certified technical personnel may use these ports during installation and maintenance.
Avertissement: les ports désignés comme «utilisés pour l'installation et la maintenance» ne doivent pas être
accessibles aux utilisateurs finaux.
Seul le personnel technique certifié MTI peut utiliser ces ports pendant l'installation et la maintenance.
The rating label is located at the bottom of the housing.
L'étiquette signalétique est située au bas du boîtier.
