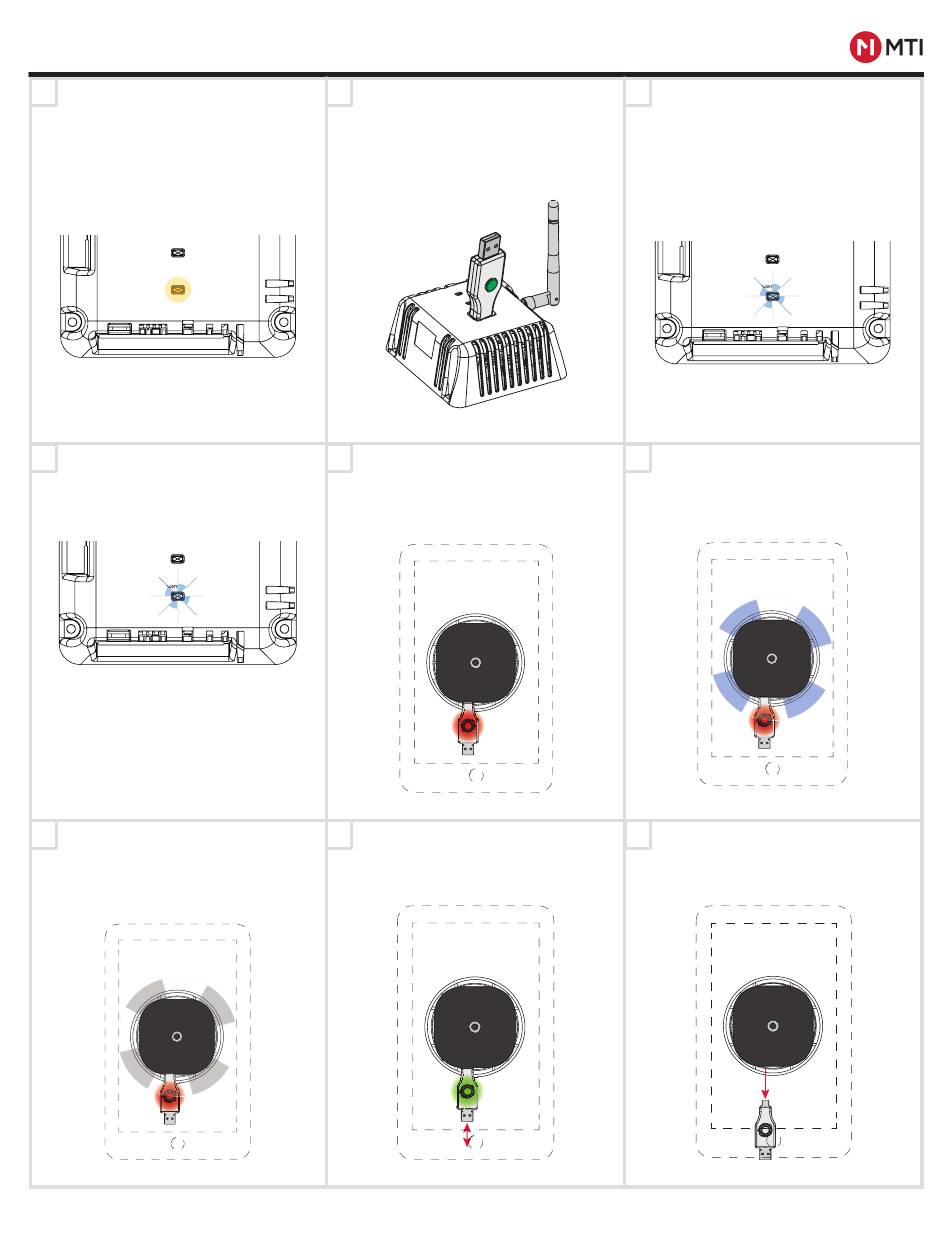

NETWORK PAIRING - INTELLIKEY
1
Ensure the Hub and all Freedom
Micro positions are powered up.
Once powered, the staus light will
illuminate (see page 3 for LED
Status Indicators).
Network
System Status
stem Stat
Power
Reset
4
Remove the IntelliKey (blue LED
will stay flashing on Hub for up to
15 minutes).
Network
System Status
m Sta
tat
tat
ta
a
a
a tu
Power
Reset
7
After connecting to the network,
the LED on the puck will double
white flash every 5 seconds, the
IntelliKey's LED will still remain
red.
www.mtigs.com | T:800.426.6844
MTI CONNECT™ HUB PRODUCT MANUAL
2
Plug Connect IntelliKey into
the USB port on the top of the
Hub. When the IntelliKey LED
lights green, it has been added
to the system whitelist. Remove
and repeat for all other Connect
IntelliKeys.
5
Take any of the Connect
IntelliKeys to each position that
has a flashing yellow LED and
plug in the IntelliKey for 10
seconds (the IntelliKey LED will
light up red).
8
Remove and re-insert the
IntelliKey; the IntelliKey's LED
should light green, indicating
the IntelliKey will now control the
puck.
3
Plug in any Connect IntelliKey in
for 10 seconds. After 10 seconds,
the Hub status indicator will flash
blue, indicating the Hub is in
network pairing mode.
Network
System Status
m Sta
ta
tat
tat
a
a tu
a
Power
Reset
6
After 10 seconds, the puck LED
will flash blue until it connects to
the Hub's network.
9
Removing the IntelliKey after the
LED illuminates green will arm
the position if the position is fully
merchandised.
MTI P/N 063-00210 rev E ©2021 MTI All Rights Reserved
