NETWORK STATUS INDICATORS

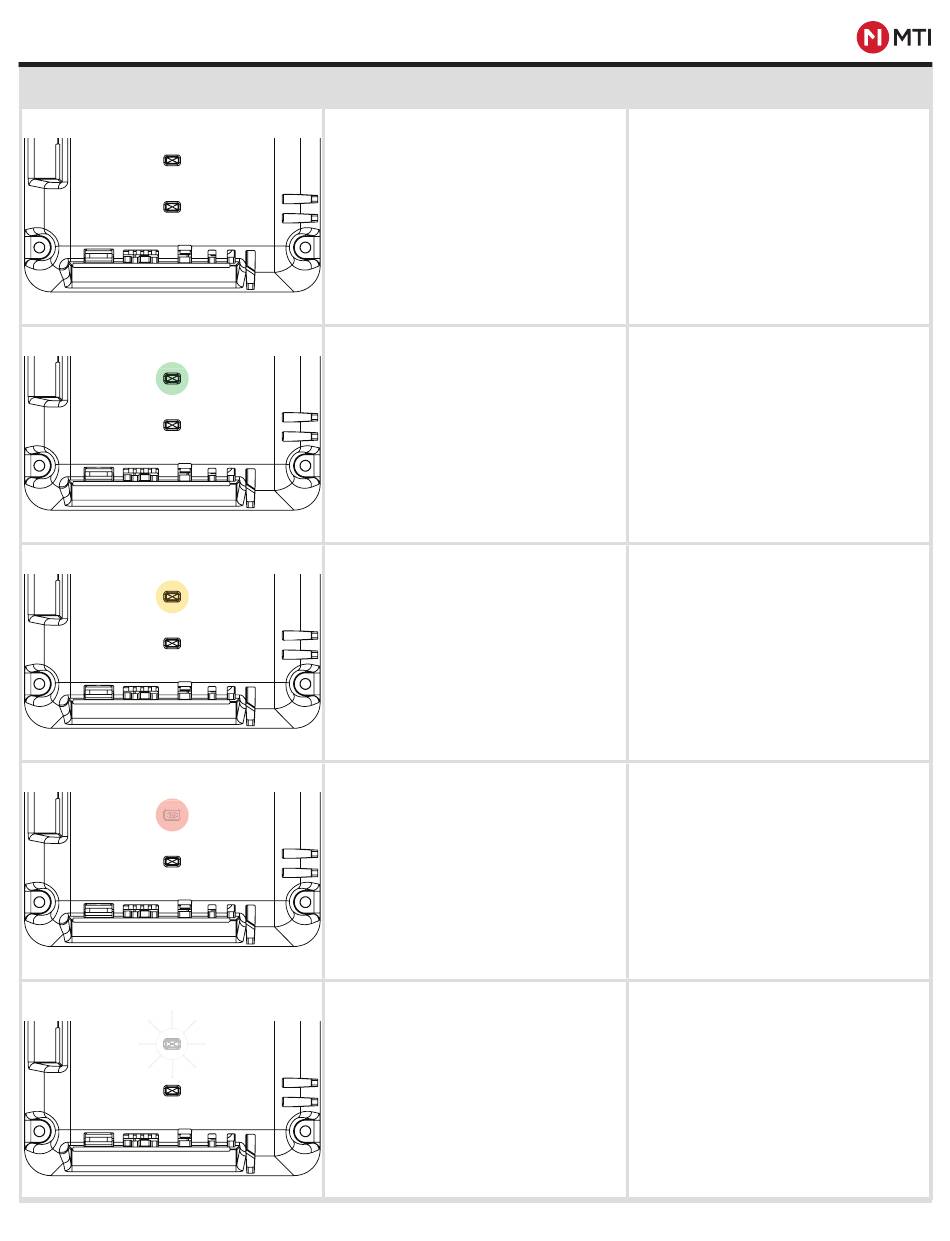

Visual Reference
Network
System Status
Power Reset
Network Network
System Status
Power Reset
Network Network
System Status
Power Reset
Network Network
System Status
Power Reset
N N N Ne N N N etwork N Network N ork k k k k k k
System Status
Power Reset
www.mtigs.com | T:800.426.6844
MTI CONNECT™ HUB PRODUCT MANUAL
System Status
No Lights On
Network LED Solid Green
Network LED Solid Yellow
Network LED Solid Red
Network LED Flashing Blue
Condition
Hub has no power or internal error.
Connect to power or cycle power.
Hub is Connected to the internet.
Normal operation.
Hub is connected to a network but cannot
reach the internet.
If MTI Connect software function is required,
connect the hub to a network that is
connected to the internet.
Hub is not connected to any IP network (No
IP address).
If MTI Connect software function is required,
Connect the hub to a network that is
connected to the internet.
Hub is in Wi-Fi configuration mode.
Refer to Connect Hub Wi-Fi setup guide.
MTI P/N 063-00210 rev E ©2021 MTI All Rights Reserved
