Zaxcom ZMT-284 User Manual page 5

Zaxcom ZMT3-X

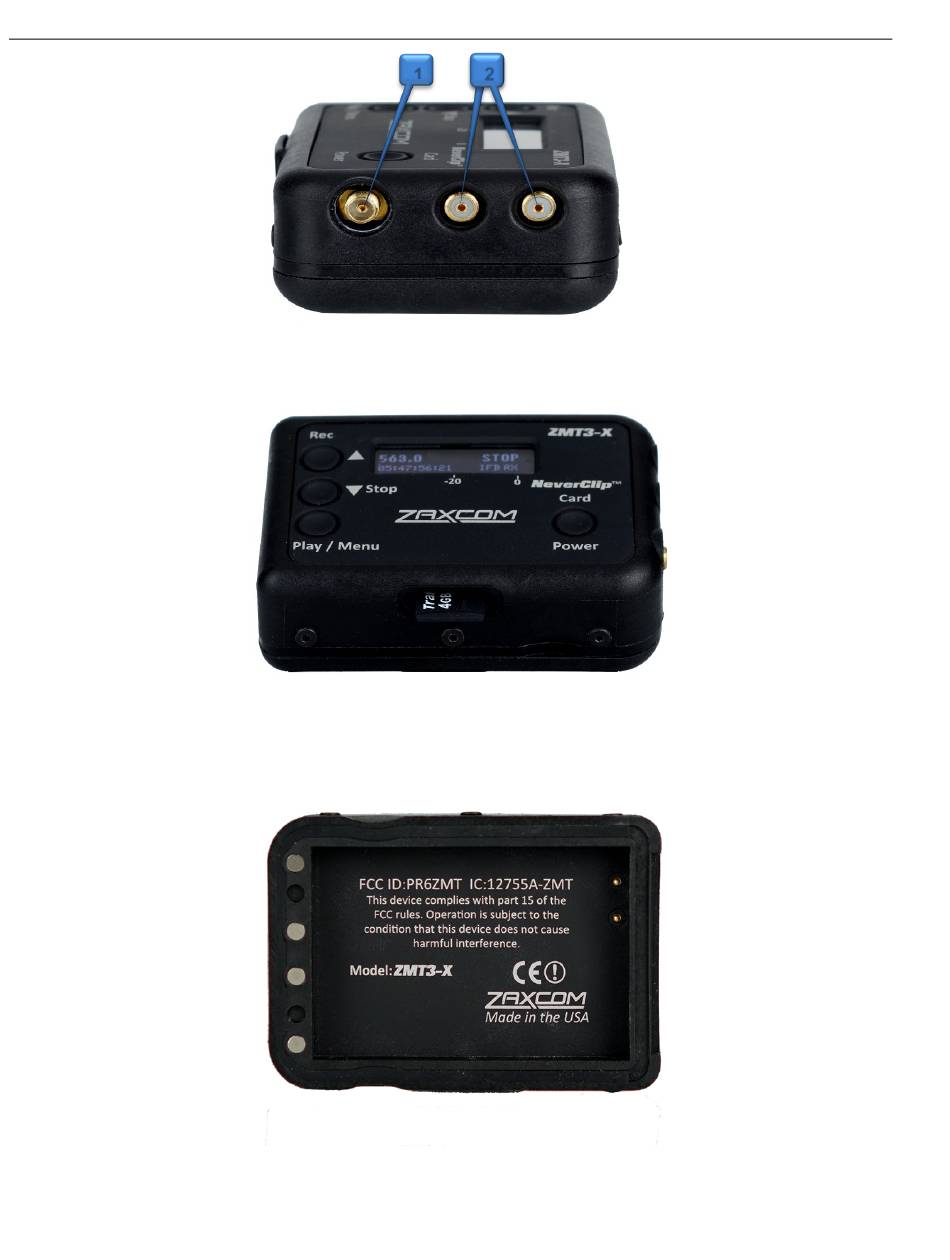

1. SSMA Antenna Connection
2. Microphone / Input connector (Microdot X 2)
3. Media Slot Media Slot
Inserting a Micro SD card: With the OLED screen of the transmitter facing up, turn the card so the
finger contacts are pointing down toward the slot. Insert the card into the slot and press it down until
you here a slight click. To remove it, press the card in until you hear the same click again.
4. Battery Compartment
The Motorola BT100 battery is inserted into the ZMT3-X with the contacts facing down and into the
unit. The Battery door will snap shut and held in place by the magnets
2
1 2
5
Transmitter
