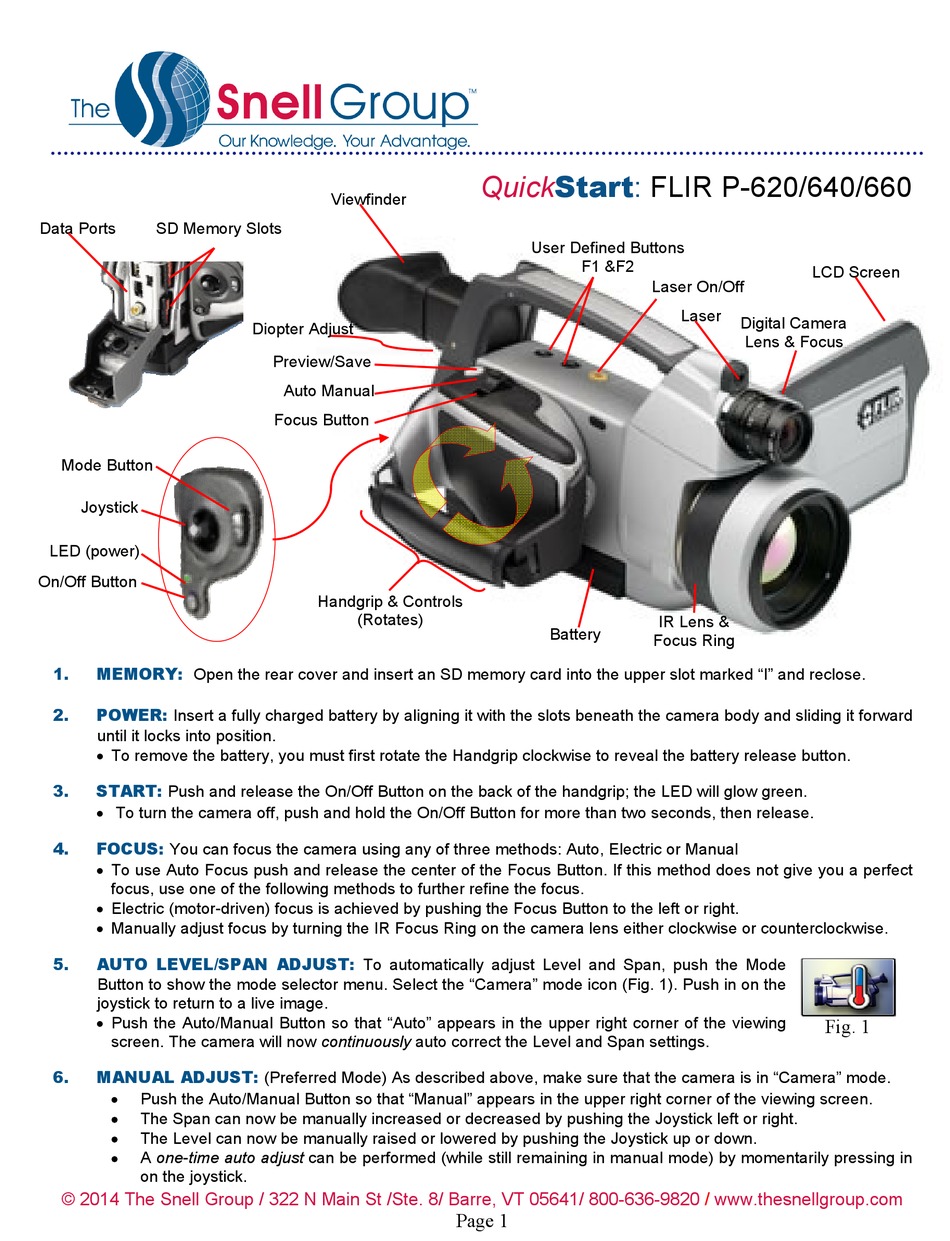

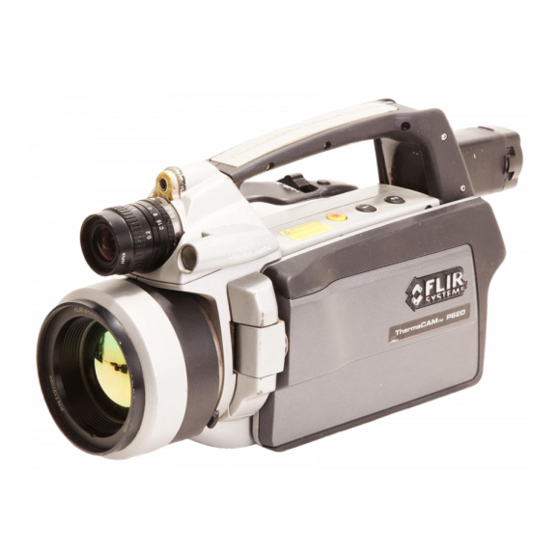

FLIR P-620 Quick Start

Data Ports SD Memory Slots
Mode Button
Joystick
LED (power)
On/Off Button
1.

MEMORY:

Open the rear cover and insert an SD memory card into the upper slot marked "I" and reclose.
2.

POWER:

Insert a fully charged battery by aligning it with the slots beneath the camera body and sliding it forward
until it locks into position.
 To remove the battery, you must first rotate the Handgrip clockwise to reveal the battery release button.
3.

START:

Push and release the On/Off Button on the back of the handgrip; the LED will glow green.
 To turn the camera off, push and hold the On/Off Button for more than two seconds, then release.
4.

FOCUS:

You can focus the camera using any of three methods: Auto, Electric or Manual
 To use Auto Focus push and release the center of the Focus Button. If this method does not give you a perfect
focus, use one of the following methods to further refine the focus.
 Electric (motor-driven) focus is achieved by pushing the Focus Button to the left or right.
 Manually adjust focus by turning the IR Focus Ring on the camera lens either clockwise or counterclockwise.
5.

AUTO LEVEL/SPAN ADJUST:

Button to show the mode selector menu. Select the "Camera" mode icon (Fig. 1). Push in on the
joystick to return to a live image.
 Push the Auto/Manual Button so that "Auto" appears in the upper right corner of the viewing
screen. The camera will now continuously auto correct the Level and Span settings.
6.

MANUAL ADJUST:


Push the Auto/Manual Button so that "Manual" appears in the upper right corner of the viewing screen.

The Span can now be manually increased or decreased by pushing the Joystick left or right.

The Level can now be manually raised or lowered by pushing the Joystick up or down.

A one-time auto adjust can be performed (while still remaining in manual mode) by momentarily pressing in
on the joystick.
© 2014 The Snell Group / 322 N Main St /Ste. 8/ Barre, VT 05641/ 800-636-9820
Viewfinder
Diopter Adjust
Preview/Save
Auto Manual
Focus Button
Handgrip & Controls
(Rotates)
To automatically adjust Level and Span, push the Mode
(Preferred Mode) As described above, make sure that the camera is in "Camera" mode.
QuickStart:
User Defined Buttons
F1 &F2
Battery
Page 1
FLIR P-620/640/660
LCD Screen
Laser On/Off
Laser
Digital Camera
Lens & Focus
IR Lens &
Focus Ring
Fig. 1
/ www.thesnellgroup.com
