QUICK START GUIDE
STEP 1: POWER TO THE CAMERA
The Duo Pro R requires 12W to function correctly. The camera cannot be powered via a computer
USB port or most cell phone chargers. For power via USB-C, FLIR recommends a wall charger
capable of supplying at least 12W.
The Duo Pro R can be powered through the USB-C port or through the 10-pin JST port using the
cables included with the camera.
On initial power-up, LED 2 will flash red for approximately 15 seconds then change to solid Blue;
LED 1 will turn solid green. This indicates that the device is ready for use.
STEP 2: DISPLAY VIDEO
Duo Pro R can display either analog or digital video. To display analog video to a monitor or
television, use the yellow RCA plug on the supplied Bench Cable to connect Duo Pro R to the
monitor's video input.
For digital video, connect your camera to an HDMI display through the micro-HDMI camera port.
This will automatically disable the analog video output and turn on the HDMI output.

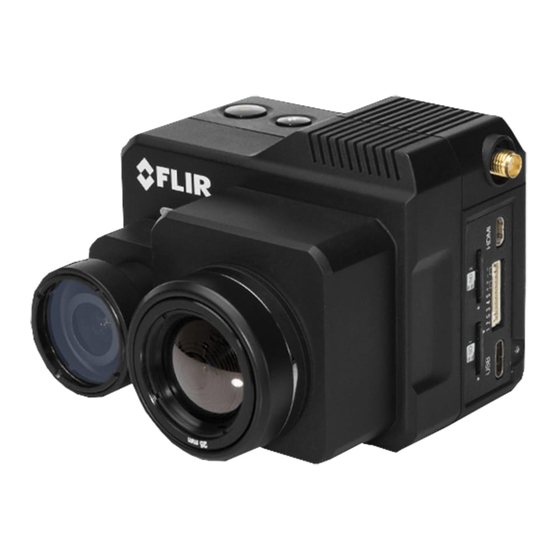

Duo
FLIR
Please read the user manual for complete product information. If you have questions
please call our Toll-Free Consumer Help Line at

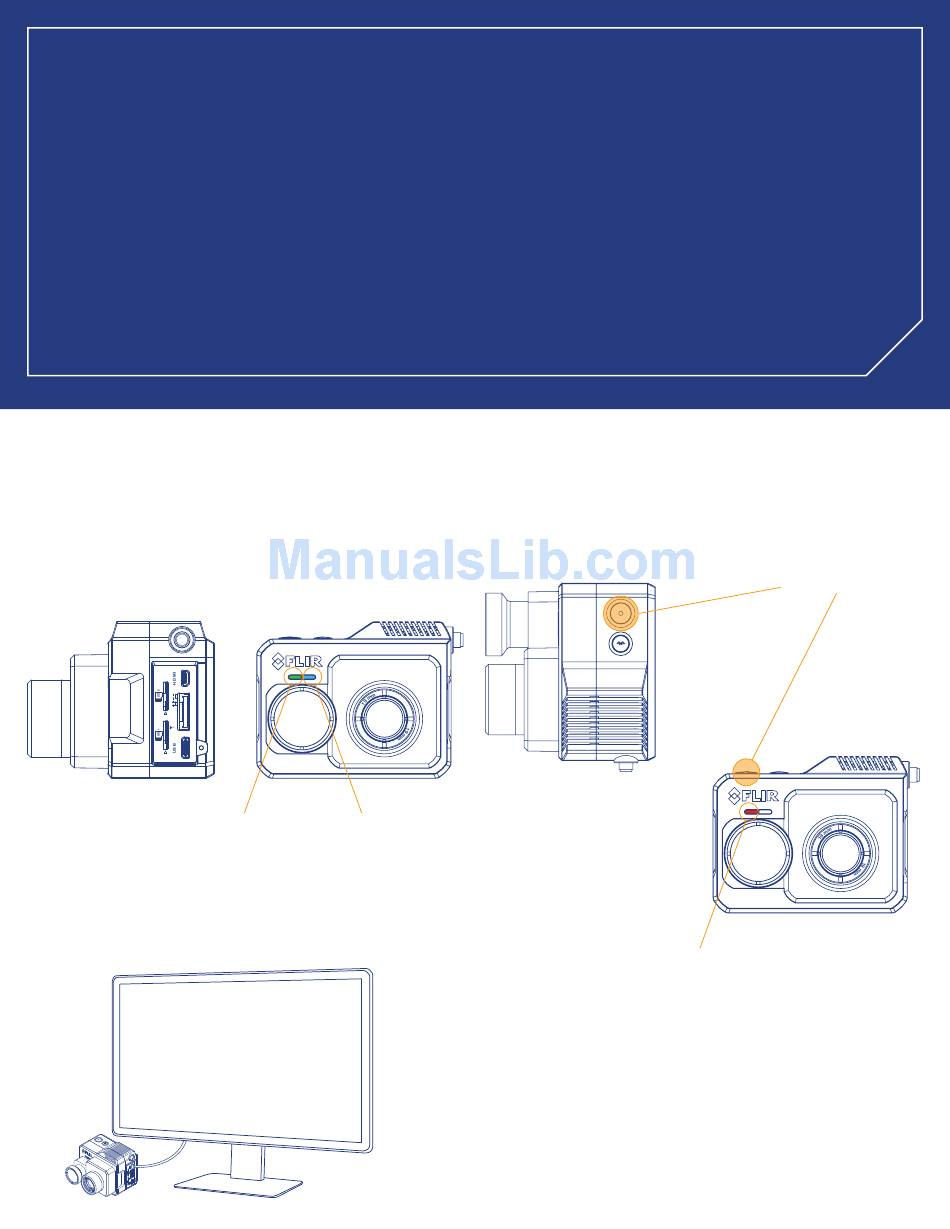

LED 1 LED 2
PRO R
™
866.667.7732 for assistance.
STEP 3: RECORDING VIDEO
Press the Record button to start recording video to the included memory cards. LED 1 will blink
red to indicate active recording, and the camera will beep. Press the Record button again to stop
recording video.
STEP 4: RETRIEVE RECORDINGS
There are two ways to retrieve recorded video & image files from the Duo Pro R:
• Remove the SD cards from the camera and read the files using an SD card
reader (included on some laptops).
• With the camera powered through the 10-pin JST connector, connect the
camera to a computer using the included USB cable. Note that the camera
must be powered through the 10-pin connection, as most computers cannot
supply 12W through USB to sufficiently power the Duo Pro R.
RECORD BUTTON
LED 1
