FLIR P60 Quick Start

Digital Camera Lens & Focus
Laser Lens & Cap
Laser ON/OFF
Joystick
ON/OFF
1.

MEMORY:

Insert a Compact Flash memory card in to its slot under the rubber cover below the eyepiece.

Available memory card space is indicated in the Status LCD.
2.

POWER:

Slide the release tab forward, pivot the battery door open and insert a fully charged battery.

Battery life is indicated in the Status LCD.
3.

START:

Briefly press the green ON/OFF button to switch on the camera.

Pres and hold the ON/OFF button to turn the camera off.
NOTE: Depending on the model there are two viewing options.

Detachable LCD pad with controls. (buttons function as the matching buttons on the camera body) To
remove pad, pull straight back then pivot upwards, front first.

Eyepiece viewing display. You must individually adjust the focus of eyepiece so that the display's menu
lettering is sharp and crisp.

FOCUS:

Focus can be achieved by two methods: Auto focus and manually.

To Auto Focus (focus on objects in the center of the image) press and hold the "A" button for one or two
seconds.

Manually adjust focus by moving the Joystick up or down. While you are focusing, an indicator will appear
on the left side of the screen.
NOTE: 1. The Joystick is slightly offset or rotated clockwise for ergonomic reasons.
NOTE: 2. Earlier models might differ in the control buttons and functions.
4.

AUTO ADJUST:

of the thermal Level and Span.
© 2011 The Snell Group / 322 N. Main St. / Suite 8 / Barre, VT / 05641 / 800.636.9820
Programmable
Functions
"C" (select/cancel)
"S" (pause/save)
"A" (auto)
Battery Door Release
(Level and Span) Momentarily pressing the "A" button will perform a one time auto adjustment
QuickStart:
Eyepiece
Status LCD

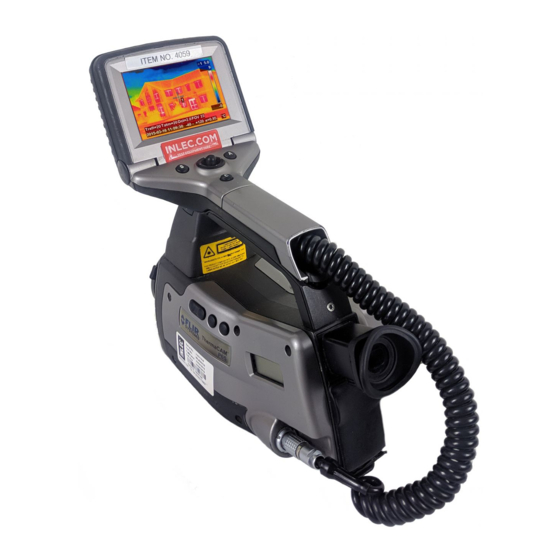

FLIR P60, P65
Removable LCD
&
Control Pad
Battery Door
/ www.thesnellgroup.com
FLIR P60, P65 Page 1
