How to Use

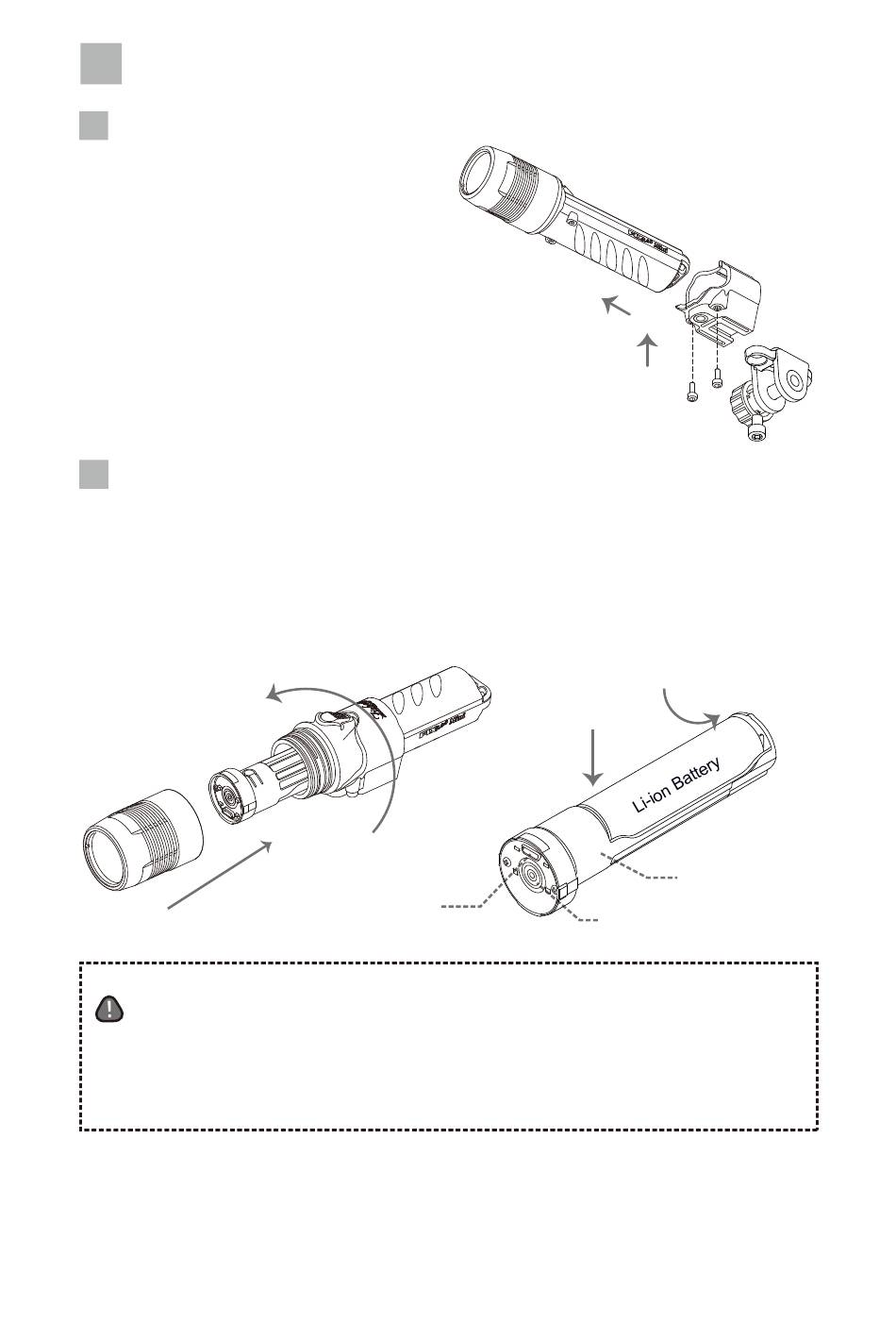

Attaching adaptor holder and YS base
1. Insert the included adaptor holder by sliding
from the back of the light body and secure by
two screws.
2. Insert the included YS base by sliding from the
back of the adaptor holder. YS base has 2
holes: install the round shaped side to the
front and oval shaped side to the back.
3. Secure the included lock screw in the round hole by tightening
clockwise.
4. Other adaptors than the YS mount can be used. Alternate adaptors
include a 1" ball mount, GoPro mount, and Loc-Line mount.
Alternate mounts must be purchased separately.

Battery Loading

1. Hold the body case firmly and remove the light head by rotating counter-clockwise.
2. Confirm polarity and install Li-ion battery to the battery holder.
3. Make sure that there is no dirt or water drops on the metal terminal of the battery holder.
4. Tilt the body case and load the battery holder.
5. Hold the body case firmly and attach the Light Head by rotating clockwise. Battery removal is
the opposite procedure.
④
Loading the Li-ion battery into the battery holder: insert the negative end of the battery
first. Inserting the positive end first might damage the battery holder's contact spring.
CAUTION
Removing the Li-ion battery from the battery holder: push the positive end of the battery
first into the contact spring first, then pull the positive end up slightly, then release
pressure on the positive end allowing the contact spring to push the battery out of the
holder. Removing the battery from the negative end may damage the contact spring.
④
①
Micro USB Socket
- 17 -
Adaptor Holder
YS Base
② ③
②
③
+
Battery Holder
Metalic Terminal
Lock Screw
①
-
