Signtex Lighting EMP Series Instruction Manual

Emergence

UNIVERSAL BACK, END OR TOP MOUNT FOR SINGLE AND DOUBLE FACE SIGNS

UNIVERSAL BACK, END OR TOP MOUNT FOR SINGLE AND DOUBLE FACE SIGNS

BACK MOUNT:

1- Select arrows as required by removing arrow insert(s) in stencil face sheet legend. Remove plastic protector from
window. Discard angle bracket.
2- ENSURE MOUNTING SURFACE IS FLAT WITH NO RAISED AREAS THAT MAY PENETRATE SIGN OR
CAUSE BENDING. Use sign to mark mounting points, and mount sign in position using maximum size 8 screws.
Up to six screws may be used (mounting screws supplied by installer).

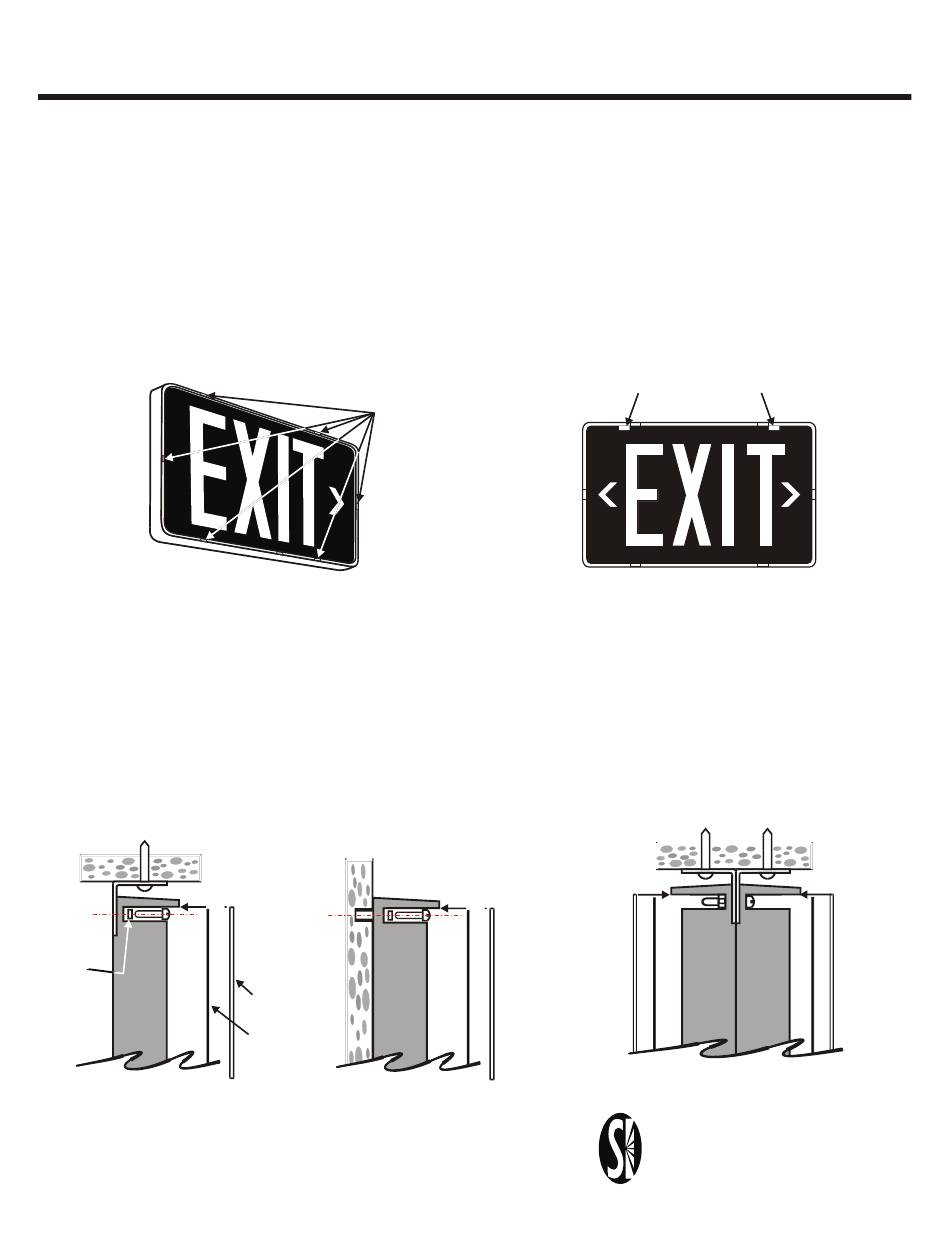

3- Replace legend and window. Window snaps into housing by locating tabs at six points as shown. Place into position
by locating two bottom tabs. Bend the window outwards slightly at sides to insert side tabs. Two tabs along top edge
may be inserted by flexing wall (EMP models only) or by inserting 1/4" scewdriver, twist to insert tabs {EMA & EMP
models). To remove window, insert flat screwdriver into slots provided and twist to release tabs at two points on top
edge, then flex window to remove.

UNIVERSAL TOP OR END MOUNT

UNIVERSAL TOP OR END MOUNT
See diagrams below:
1. Select open holes (not tapped holes), place bracket in mount position and mark screw anchor locations
on ceiling or wall surface. Install screw anchors, and install bracket.
2. Attach sign to bracket using two #8-32 Allen- Head screws with lock washers provided.
TOP MOUNT TOP MOUNT
LOCK
WASHER
SINGLE FACE
Self- Luminous Signs
WINDOW LOCK TABS WINDOW LOCK TABS
AT SIX POINTS AT SIX POINTS
BACK MOUNT BACK MOUNT
OUTER
WINDOW
STENCIL FACE
Thermoplastic Housing
Series EMP & EMC
SCREWDRIVER RELEASE SLOTS SCREWDRIVER RELEASE SLOTS
DOUBLE FACE DOUBLE FACE
