dg_sata_ip_dev_demo_instruction_at7_en.doc
SATA-IP Device Demo Instruction on AC701
This document describes SATA-IP Device evaluation procedure on AC701 using SATA-IP Device
reference design bit-file. This design support fixed SATA-II speed.
1 Environment Requirement
To run the demo on FPGA development board, please prepare following environment
1. Xilinx Artix-7 FPGA AC701 Evaluation Kit
2. PC which supports SATA-II speed for connecting with SATA-II storage.
3. PC with installing Xilinx programmer software (Vivado) and SATA device connector on PC.
Note: Serial console software such as HyperTerminal or TeraTerm for optional to monitor
status. Set baud rate=115,200 / data=8bit / Non-Parity / Stop=1bit.
4. AB02-CROSSOVER with SATA standard cable to be SATA crossover cable
5. AB10-PATAFMC to be SATA connector of AC701 board
6. AB14-CLKSMA to be clock generator for SATA application
Note: AB02-CROSSOVER, AB10-PATAFMC, and AB14-CLKSMA are provided by Design
Gateway
7. micro USB cable for programming FPGA, connecting between FPGA board and PC
8. (Optional) mini USB cable for Serial console, connecting between FPGA board and PC
17-Jun-21

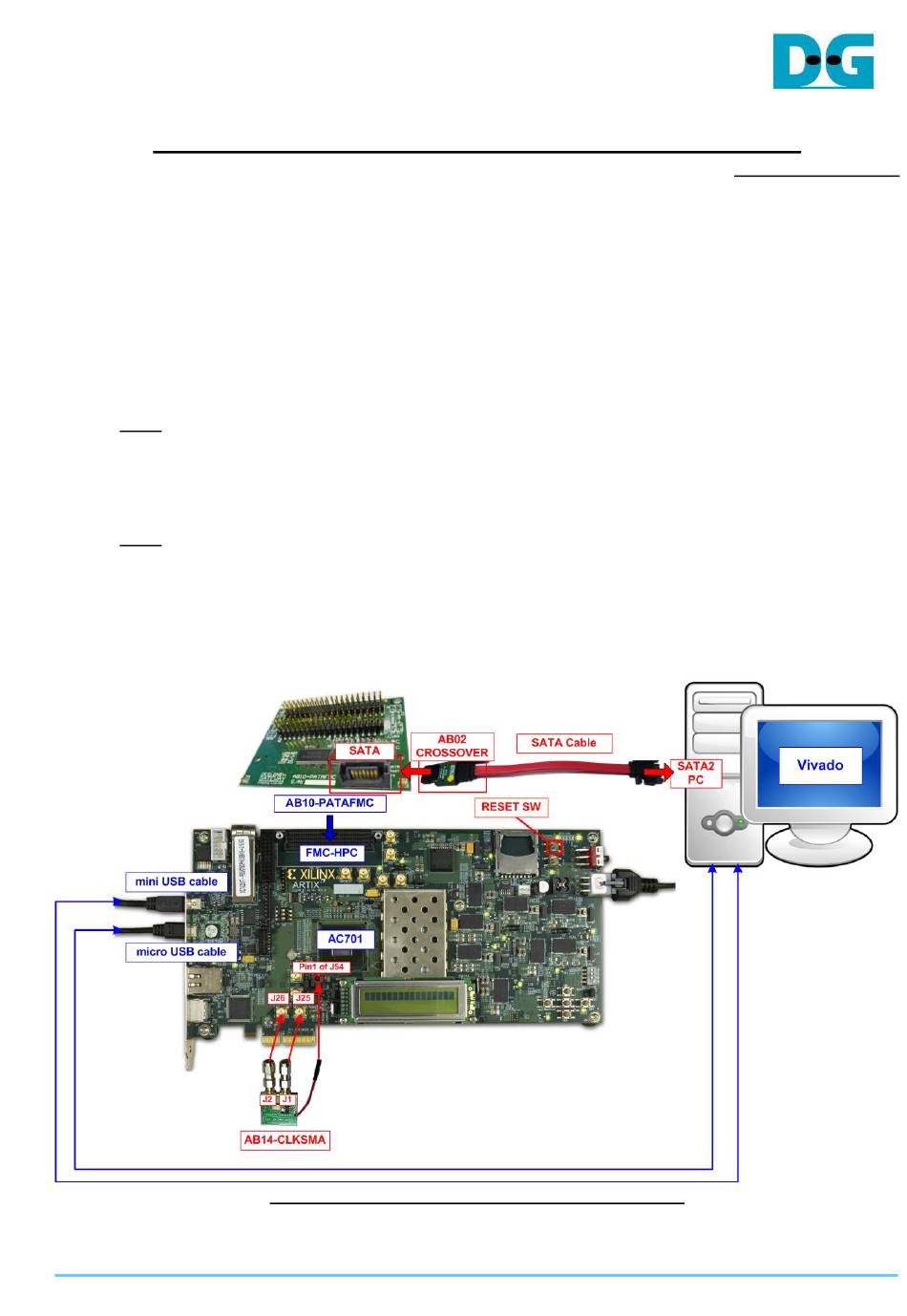

Figure 1-1 SATA device demo test environment
Rev1.1 17-Jun-21
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SATA-IP and is the answer not in the manual?

Questions and answers

Related Manuals for DG SATA-IP

Summary of Contents for DG SATA-IP

  • Page 1 SATA-IP Device Demo Instruction on AC701 Rev1.1 17-Jun-21 This document describes SATA-IP Device evaluation procedure on AC701 using SATA-IP Device reference design bit-file. This design support fixed SATA-II speed. 1 Environment Requirement To run the demo on FPGA development board, please prepare following environment 1.

  • Page 2: Demo Setup

    dg_sata_ip_dev_demo_instruction_at7_en.doc 2 Demo setup 1. Power off system 2. Connect AB14-CLKSMA board to AC701 board. J1 and J2 which are SMA connector on AB14-CLKSMA board are connected to J25 and J26 which are SMA connector on AC701 board, as shown in Figure 2-1. 3.
  • Page 3 dg_sata_ip_dev_demo_instruction_at7_en.doc 5. Connect AB10-PATAFMC to FMC-HPC connector (J30) on AC701, as shown in Figure Figure 2-3 AB10 and AC701 connection 6. Connect micro USB cable from Digilent (U26) on AC701 board to PC for JTAG programming as shown in USB connector on AC701. 7.
  • Page 4 Table 2-1 LED Status of device reference design on AC701 board LED0 OK 150 MHz of SATA clock on CLKSMA cannot lock. Please check 150 MHz clock source on CLKSMA board. LED1 OK SATA-IP cannot detect SATA-II host (PC). Please check SATA-II host and the connection. LED2 Always OFF...
  • Page 5 dg_sata_ip_dev_demo_instruction_at7_en.doc 11. (Optional) On PC Serial console, “Start SATA device design” and “Link up” are displayed, as shown in Figure 2-7. Now new disk is ready for Host PC. Figure 2-7 Welcome message and status of SATA device demo 17-Jun-21 Page 5...
  • Page 6 3 Operation Test on OS 1. Open Device Manager on Windows10 OS. New SATA Device disk (DG SATA Device) is detected under “Disk drives”. If new disk is not auto-detected, open device manager and then select “Scan for hardware changes” under Disk drives icon to re-start new disk detection.
  • Page 7 dg_sata_ip_dev_demo_instruction_at7_en.doc 3. Wait until disk initialization is completed. After that, run the new disk test by Format the new disk. The first step is creating the new partition by right-click at Unallocated disk and select “New Simple Volume…”. After that, “New Simple Volume Wizard” is displayed. Click “Next”...
  • Page 8 dg_sata_ip_dev_demo_instruction_at7_en.doc 4. Click “Next” button for 3 times to continue next step, and then click “Finish” button to start Format disk. Wait until Format is completed. Figure 3-4 Format menu setup 17-Jun-21 Page 8...
  • Page 9 dg_sata_ip_dev_demo_instruction_at7_en.doc Figure 3-5 Format Complete 5. When the format is completed, new drive is ready to use, as shown in Figure 3-5. Now the user can run disk benchmark such as CrystalDiskMark for checking the operation and disk performance. Figure 3-6 shows example of disk performance by using CrystalDiskMark benchmark.

  • Page 10: Revision History

    dg_sata_ip_dev_demo_instruction_at7_en.doc 4 Revision History Revision Date Description 11-Apr-14 Initial version release 17-Jun-21 Update adapter and SATA speed 17-Jun-21 Page 10...
