dg_ll10gemacip_fpgasetup_xilinx.doc
FPGA Setup for LL10GEMAC-IP Loopback Test
This document describes how to setup FPGA board and prepare the test environment for running
LL10GEMAC-IP loopback demo and measuring the latency time. User sets test parameters on
FPGA board and monitors the hardware status via Serial console. More details of the demo are
described as follows.

1 Test environment List

To run loopback demo of LL10GEMAC IP, please prepare following test environment.
• FPGA development board: ZCU102
• (Optional) SFP+ Loopback cable for external loopback mode
• Two micro USB cables for programming FPGA and Serial console monitoring, connecting
between FPGA board and PC
• Serial console software such as TeraTerm installed on PC. The setting on the console is
Baudrate=115,200, Data=8-bit, Non-parity, and Stop=1.
• Vivado tool for programming FPGA, installed on PC
Note: The latency time in the test depends on clock phase shift characteristic when the board
boots up. Reset button is designed to reset the system which will change clock phase shift
characteristic. Therefore, the user can press Reset button and may get the different latency time
on the test.
29-Apr-21

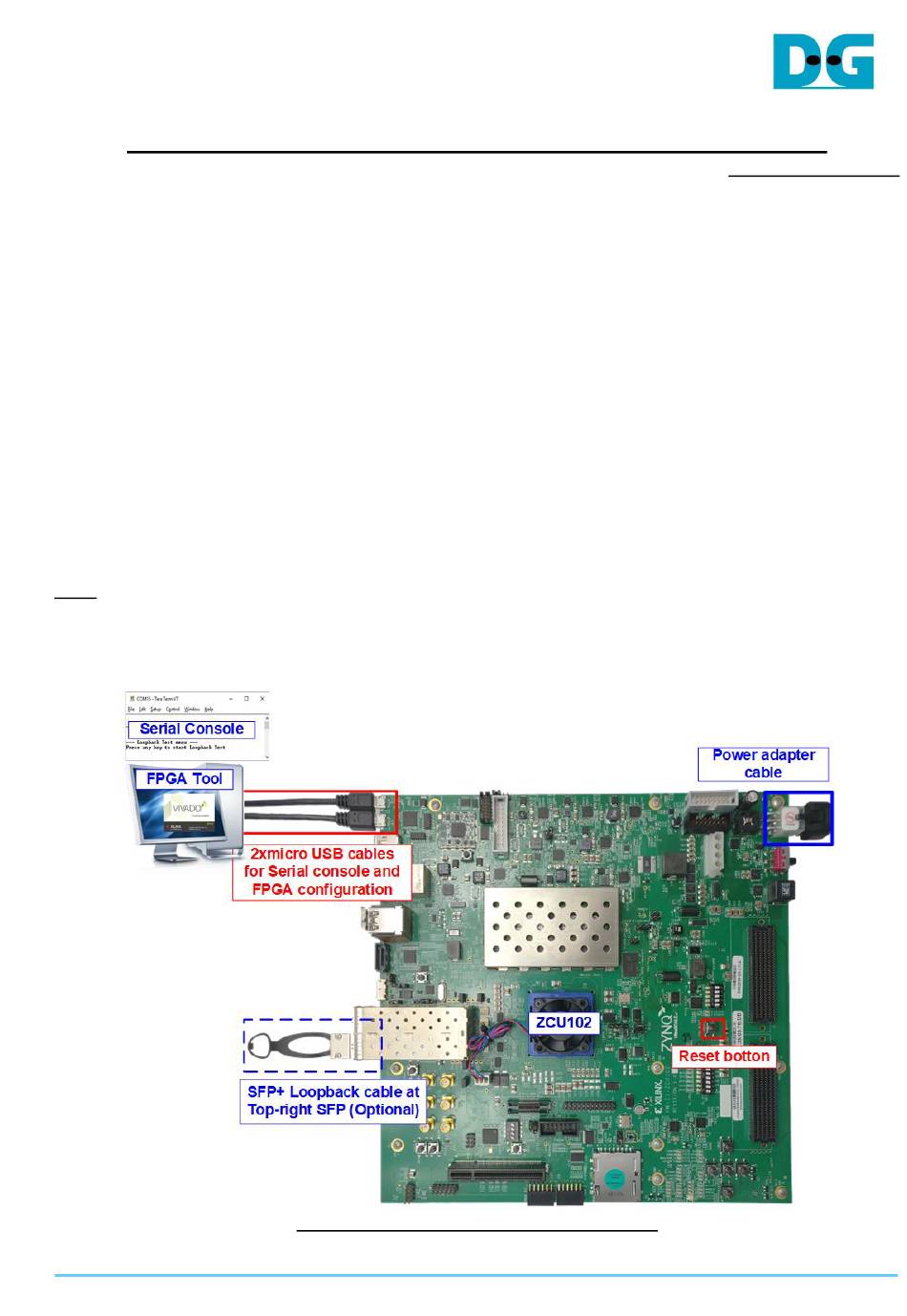

Figure 1-1 LL10GEMAC demo on ZC102
Rev1.0 29-Apr-21
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FPGA and is the answer not in the manual?

Questions and answers

Related Manuals for DG FPGA

Summary of Contents for DG FPGA

  • Page 1 This document describes how to setup FPGA board and prepare the test environment for running LL10GEMAC-IP loopback demo and measuring the latency time. User sets test parameters on FPGA board and monitors the hardware status via Serial console. More details of the demo are described as follows.
  • Page 2 2 Test environment Setup The step to setup test environment by using FPGA and PC is described in more details as follows. 1) Check DIPSW and jumper setting on FPGA board as shown in Figure 2-1. i) Insert jumper to J16 to enable Tx SFP+.
  • Page 3 5) Power on FPGA board. 6) Open Serial console. When connecting FPGA board to PC, many COM ports from FPGA connection are detected and displayed on Device Manager. For ZCU102, select COM port number of Interface0 to be Serial console.
  • Page 4 dg_ll10gemacip_fpgasetup_xilinx.doc 8) On Serial console, i) Input ‘0’ or ‘1’ to initialize demo in external loopback mode or internal loopback mode. ii) After User select mode, the system initialization begins. The main menu is displayed on Serial console after the initialization is finished. Figure 2-5 Main menu after system boot-up Note: When running Internal loopback mode, SFP+ Loopback module is not used.
  • Page 5 dg_ll10gemacip_fpgasetup_xilinx.doc 3 Revision History Revision Date Description 29-Apr-21 Initial version release 29-Apr-21 Page 5...
