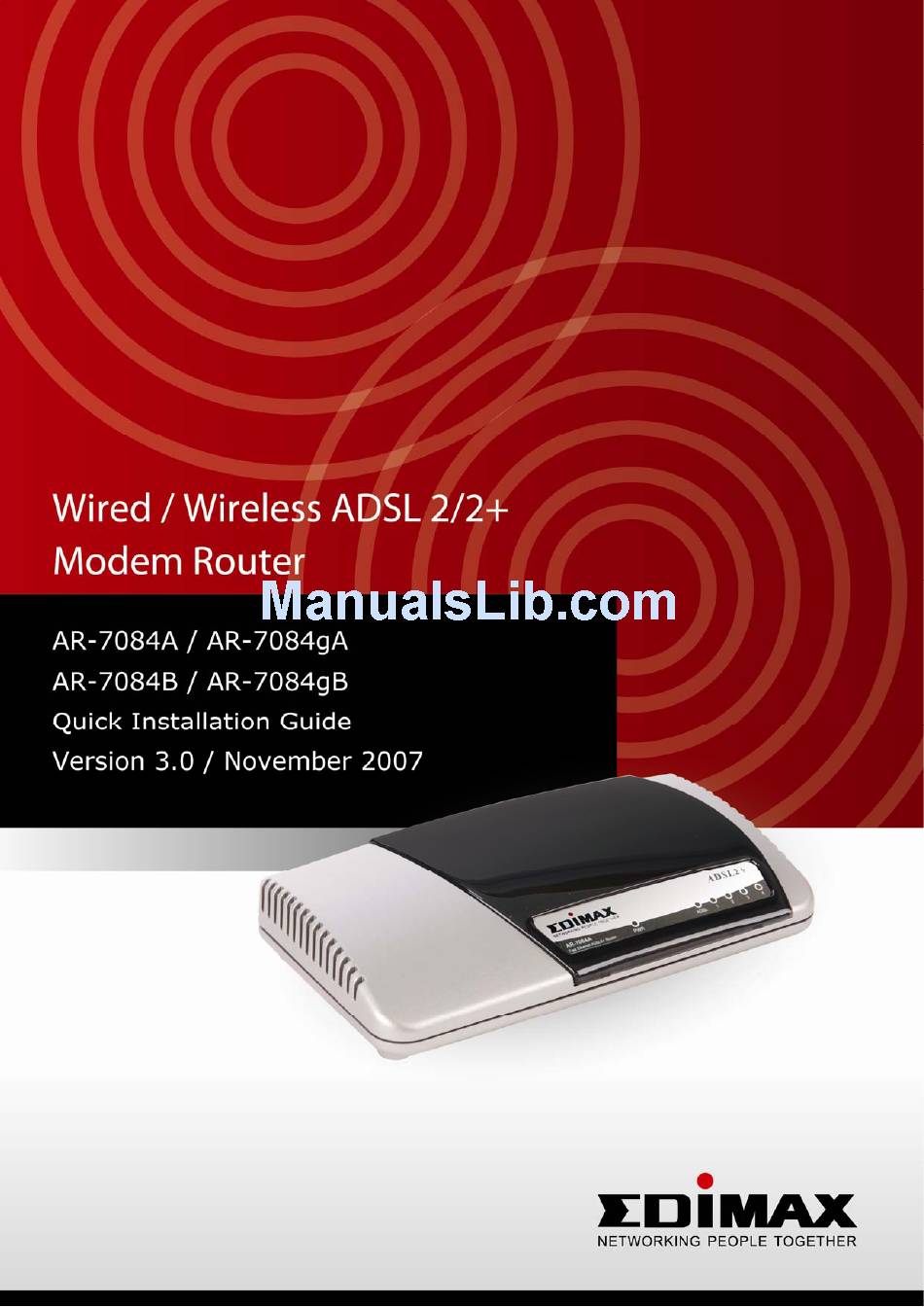

Edimax AR-7084A Install Manual
Wired / wireless adsl 2/2+ modem router
Hide thumbs
Also See for AR-7084A:
- Specifications (2 pages) ,
- User manual (86 pages) ,
- Quick installation manual (8 pages)
Related Manuals for Edimax AR-7084A
Summary of Contents for Edimax AR-7084A
- Page 3 Copyright© by Edimax Technology Co, LTD. all rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without...
- Page 4 Product Introduction Thank you for purchasing an Edimax product. This router is a cost-effective router, an ADSL2+ modem, Ethernet network switch and wireless access point (for wireless model only). You can surf the Internet and share the connection through the Edimax router without investing in other devices.
- Page 5 SMA connector to the router easily. 2) Reset The Reset button can be used to reset the router or restore to factory defaults. If problems occur with your router, press the router’s reset button with a pencil tip (for less than 5 seconds) and the router will re-boot itself, keeping your original configurations.
- Page 6 Front LEDs On the router’s front panel there are LED lights that inform you of the router’s current status. Below is an explanation of each LED and its description. Light Description Status The router is ready (Green) WLAN Wireless LAN is disabled...
- Page 7 PC and the router. ： Note You must use the power adapter shipped along with the router , do NOT use any other power adapter from other sources. Configure the PC LAN setting to automatically obtain an IP address from the router by following below steps.
- Page 8 Find an icon “Network Connection” then Double-Click to open the network connection setting. You will see an icon “Local Area Connection”, click the icon then Right-Click the mouse to open the sub-menu and select the “Properties” for setting the IP. Select the “Internet Protocol (TCP/IP)”...
- Page 9 Second, power on the modem. Third power on the router followed by PC for next step. Enter the router’s default IP address: “192.168.2.1” into your PC’s web browser and press “enter”. The login screen below will appear. Enter the “User Name” and “Password” and click “OK”...
- Page 10 Note: It’s highly recommended to change and save Router's log-in settings in another location. The main page will appear, click “Quick Setup”Following example is for “PPPoE” WAN setting.
- Page 11 4. ISP Settings This router provides a setup tool to configure the ADSL settings. To ensure the setup process is straight forward as promised, we introduce you to our setup tool. The wizard has a built in database of the ADSL settings so that the user can easily configure the router’s ADSL settings by only selecting the ISP vendor in the wizard.
- Page 12 NOTE：If the router cannot be found, please enter the IP Address and the Password of the router to search again. Click “Next” to continue Click the “Setup Wizard” , and choose Language and your Country Choose your ISP from the list. If you cannot find the ISP, please click “Other” to...
- Page 13 (A)Selected ISP Please select the ISP (Internet Service Provider) of your ADSL service. Enter the Username and Password which your ISP has provided to you if it is needed. Click “Next”. Click “Save” to save the settings and reboot the router.
- Page 14 IP address from the router automatically. Note1: To use the router to get into the Internet, the IP Address of each PC has to be set in the same network segment as the router. This wizard will help to set the proper IP Address to your computer.
- Page 15 (B) Manually Set ISP Information If you cannot find the ISP from the wizard, please follow the procedures below to set the ISP settings manually. Before configuring the ISP manually, please check with your ISP (Internet Service Provider) about the connection type such as PPPoE, PPPoA or RFC1483/2684. Gather the information as stated in the following table and keep it for reference.
- Page 16 Input the VPI, VCI and Encapsulation data supplied by your ISP. If the Connection Type is “Static IP Address”, you have to input the IP Address information supplied by your ISP. To know more about the explanation of each setting, please refer to Section 5.2 in the manual.
- Page 17 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 18 R&TTE Compliance Statement This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE) The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000.
