PZ303EK 1.2.0 11/2020. 2.0

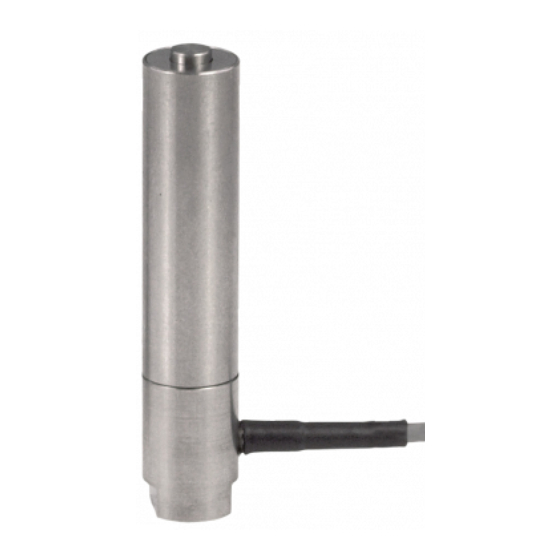

Housed PICMA® Actuators to 100 V
PZ303EK Short Instructions
P-810, P-820, P-830, P-840 to P-845
User Information
These short instructions contain an overview of the most important safety information and hand-
ling instructions for installing and operating piezo actuators with the above-mentioned product
numbers.
Subject to change. These short instructions are superseded by any new release. The latest respec-
tive release is available for download on our website.
Downloading and Reading the Manual
The actions during installation, startup, operation, and maintenance require additional information
from the manuals for the piezo actuator and/or the electronics.
Manuals may be titled as follows: "User Manual", "Technical Note".
Downloading the Manuals from the Website
1. Open the website www.pi.ws.
2. Search the website for the product number (e.g., C-663.12) or the product family (e.g., PICMA®
Bender).
3. Click the corresponding product to open the product detail page.
4. Click Downloads.
The manuals are shown under Documentation.
5. Click the desired manual and fill out the enquiry form.
The download link will then be sent to the email address entered.
If you cannot find the manual you are looking for or if you have any questions: Contact our custo-
mer service department via service@pi.de.
Physik Instrumente (PI) GmbH & Co. KG, Auf der Roemerstr. 1, 76228 Karlsruhe, Germany
Phone +49 721 4846-0, Fax +49 721 4846-1019, Email info@pi.ws, www.pi.ws
