PEERLESS Smartmount ST632 Manual

ST632 / ST632-S
ST632P / ST632P-S
FeatureS
VESA 75 and 100, 200 x 100
 ®
and 200 x 200mm compliant
Additional display adapter

plates also available
+15°/-5° tilt adjustment

without the use of tools
Display adapter plate

simply hooks onto the wall
plate for quick and easy
installation
Mounts to wood stud,

concrete, cinder block
and metal stud (metal stud
accessory required)
UL listed

* OSHPD Approval Pending

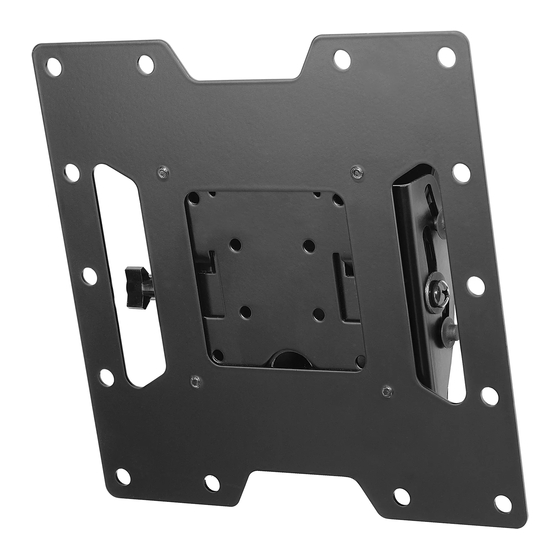

Universal Tilt Wall Mount
for 22" to 40" Flat Panel Displays
Small to medium displays are quick and easy to install with this pre-assembled mount. Just
mount the wall plate to the wall, attach the wall plate to the flat panel display and hook on
the VESA ® compliant adapter plate to the wall plate. Tilt can be adjusted without the use of
tools to guide the display to the ideal viewing angle.
StaNdardIzed COmpatIbILItY
VESA 75, 100, 200 x 100 and 200 x 200mm
®
compliant for reliable display compatibility
CLICK: www.peerless-av.com
Display size: 22"-40"
eaSY INStaLLatION
Adapter plate hooks onto
wall plate for safe, simple
installation
CaLL: 800.865.2112 FaX: 800.359.6500
Max load: 115lb (52kg)
IdeaL VIewINg aNgLe
Tilt adjustment of +15°/-5°
without the use of tools
Low-profile design holds display
only 1.66" (42mm) from the wall
