PEERLESS Smartmount ST640 Manual

ST640 / ST640-S
ST640P / ST640P-S
FeAtureS
Universal mount fits screens

with mounting patterns up to
18" W x 12.94" H (458 x 329mm)
Open wall plate architecture

allows for total wall access,
increasing electrical access
and cable management
options
Adjustable up to 15° of

forward tilt and -5° backward
tilt for optimal viewing angle
Pre-tensioned universal tilt screen

adapters allow for tilt adjustment
without the use of tools
Easy-grip lever locks the

screen position into place
Optional IncreLock
 TM
offers fixed angles of -5°, 0°,
5°, 10°, 15°
Horizontal screen adjustment

of up to 6" (152mm)
(depending on screen model)
for perfect screen placement
Universal screen adapters

easily hook onto wall plate
for fast installation
Mounts to wood studs,

concrete, cinder block or
metal studs (metal stud
accessory required)
Comes with Peerless'

Sorted-for-You™ fastener
pack with all necessary screen
attachment hardware
Integrated security

options available
UL listed


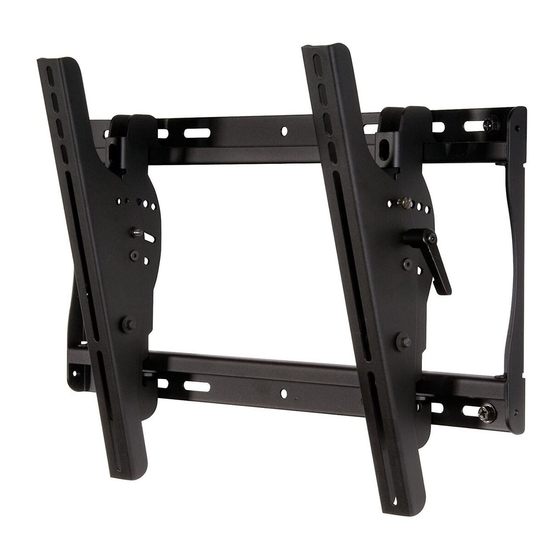

Universal Tilt Wall Mount
for 23" to 46" Flat Panel Screens
Medium sized screens are installed faster than ever with the new ST640. Its open wall plate
architecture offers screen placement flexibility and easy access to electrical and cable
management. Its exclusive pre-tensioned universal tilt screen adapters deliver the ultimate
ease in horizontal screen adjustment and viewing angle flexibility.
feature
CLICK: www.peerlessmounts.com
OPeN ArCHIteCture
Open wall plate
architecture for flexible
cable management and
wall placement
IdeAL VIewINg ANgLe
Pre-tensioned tilt
mechanism allows for
one-touch tilt adjustment
CALL: 800.865.2112
Screen size: 23"-46"
INCreLOCK
Optional tilt lock at 5°
increments
SCreeN ANgLe
AdjuStmeNt
Easy-grip lever locks tilt
angle into place without
the use of tools
Adjustable +15/-5° tilt
FAX: 708.865.2941
Max load: 150lb (68kg)
