17" high brightness lcd

Table of Contents

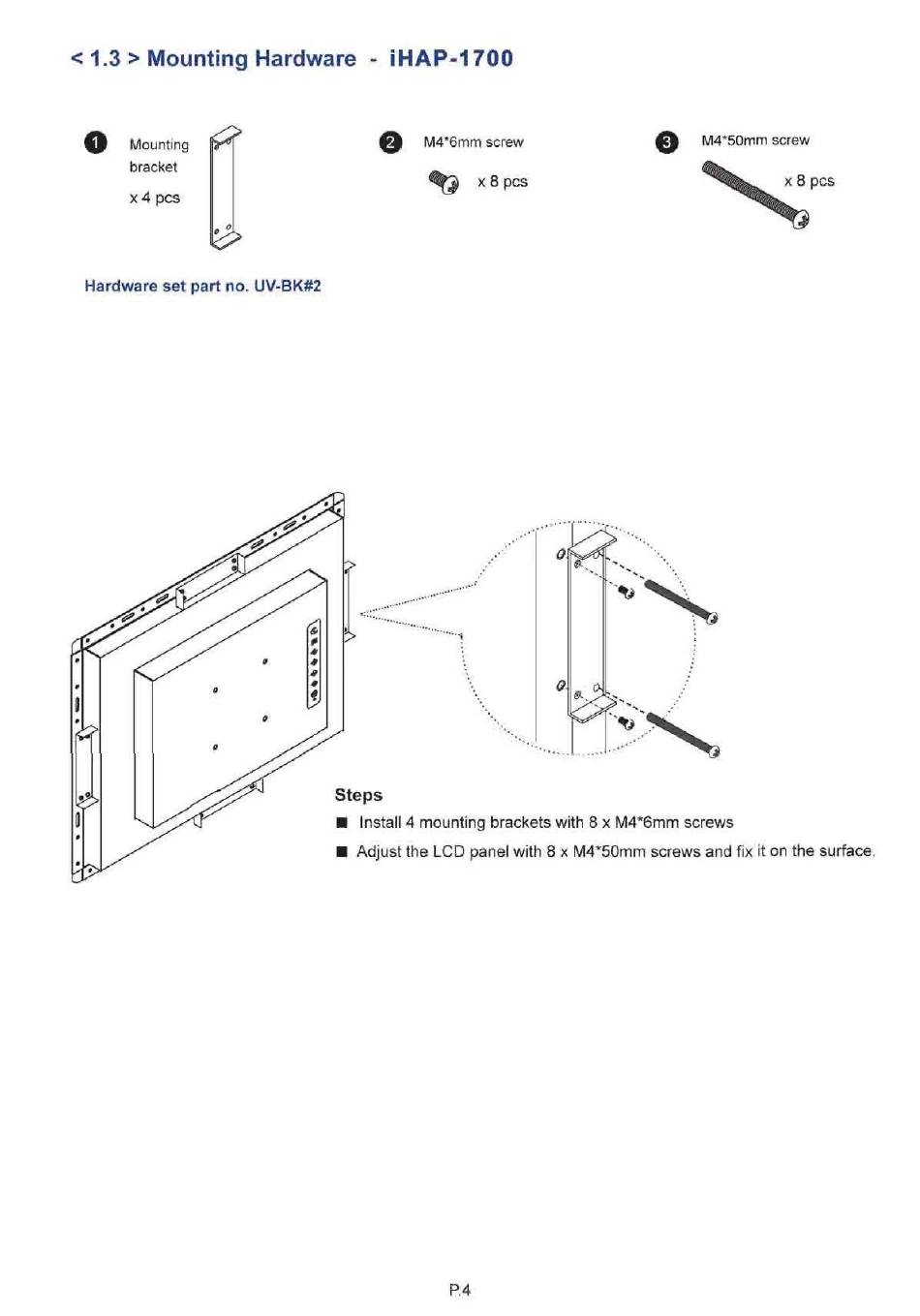

< 1.3 > Mounting Hardware - iHAP-1700

Mounting

bracket

x 4 pcs

l£

Hardware set part no. UV-BK#2

M4*6mm

screw

x8 pcs

■■••■(

'••.

Steps

■ Install 4 mounting brackets with 8 x M4*6mm screws

■ Adjust the LCD panel with 8 x M4*50mm screws and fix it on the surface.

P.4

M4*50mm screw

of*M

x 8 pcs
