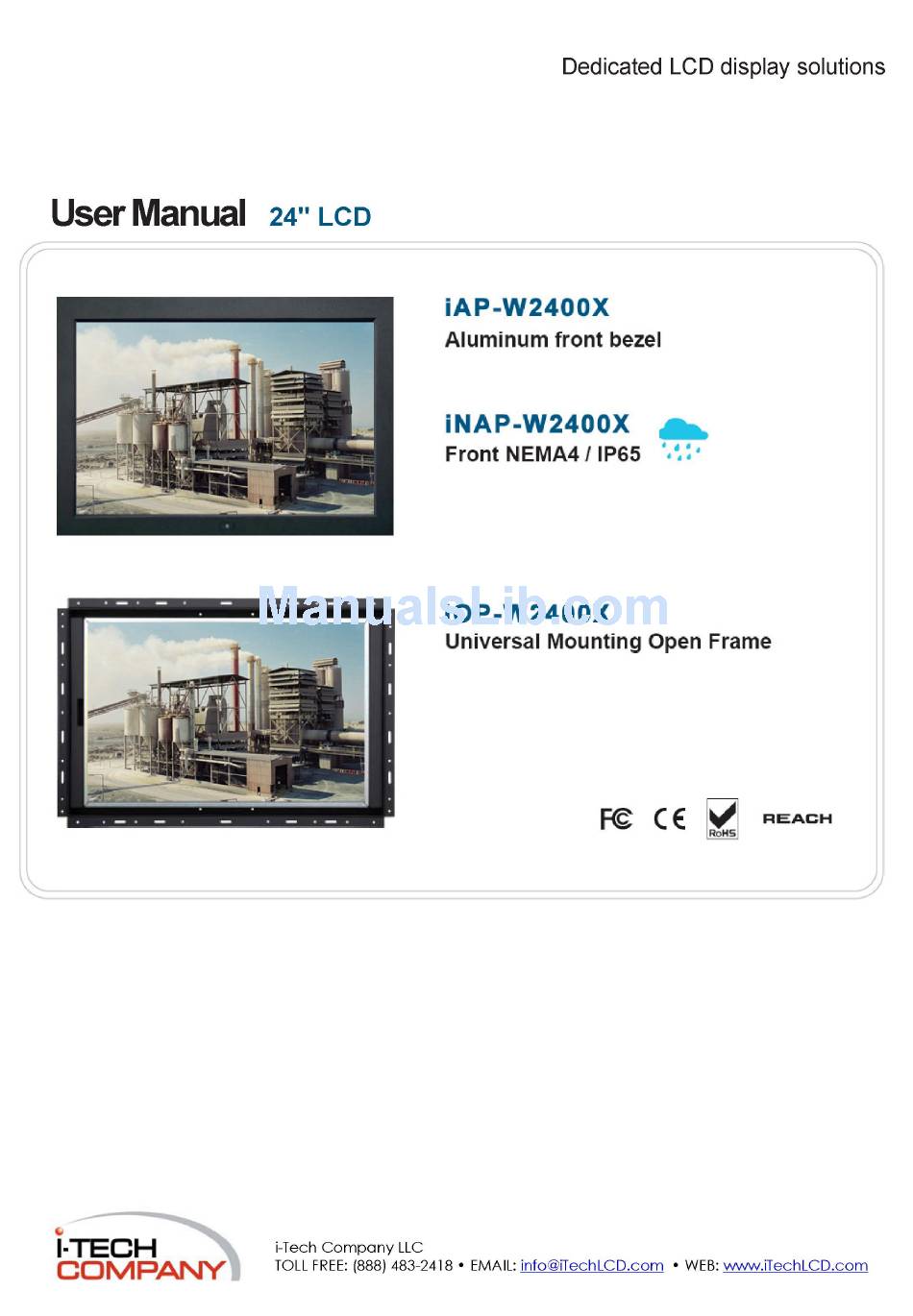

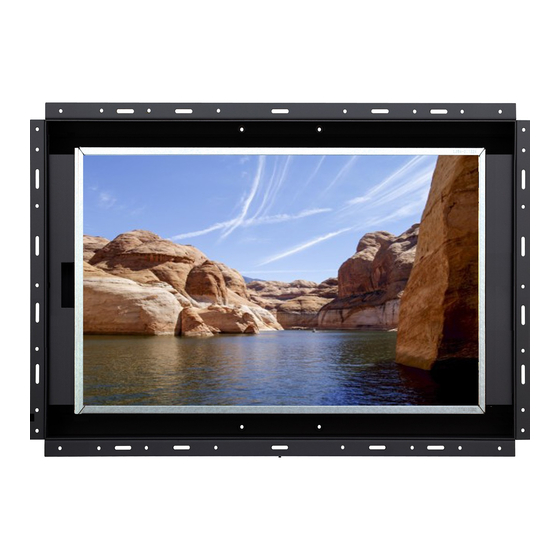

- Page 1 I N A P - W 2 4 0 0 X Front NEMA4/IP65 I O P - W 2 4 0 0 X Universal Mounting Open Frame REACH pg C€ ^ |-T~E^j|"~I i-Tech Company LLC C^DN^RA^TY TOLL FREE: (888) 483-2418 • EMAIL: info@iTechLCD.com • WEB: www.iTechLCD.com...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > IAP-W2400X / iNAP-W2400X Package Content Structure Diagram & Dimension Mounting Hardware & Installation <Part. 2 > iOP-W2400X Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 3 > Specifications / OSD /... -
Page 4: Before Installation
Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content. - Page 5 < Part 1 > < 1.1 > P a c k a g e C o n t e n t - i A P / J N A P - W 2 4 0 0 X 24" High Resolution LCD Display i A P / J N A P - W 2 4 0 0 X 24"...
- Page 6 < 1.2 > Structure Diagram - iAP / JNAP-W2400X Front view IAP-W2400X JNAP-W2400X © Rear case Rear view ■ ° • ■ • n n • - • - - , — : — ® LCD panel © 6mm aluminum front bazel .
- Page 7 < 1.2 > D i m e n s i o n - i A P / J N A P - W 2 4 0 0 X 24" High Resolution LCD Display Front View Side View JAP-W2400X iNAP-W2400X C°D 59.5 520.4 620.4...
- Page 8 < 1.3 > Panel Mount Installation - iAP / INAP-W2400X M4*50mm screw M4*6mm Mounting screw bracket x8 pcs x 8 pcs x 4 pcs l£ Hardware set part no. UV-BK#2 «..•' "■4 Steps ■ Install 4 mounting brackets with 8 x M4*6mm screws ■...
- Page 9 < 1.3 > VESA mount Installation - iAP / iNAP-W2400X 24" High Resolution LCD Display M4 screw > ? VESA mount (100*100mm ) Hardware and M4*4 pcs for VESA mount are not provided...
-
Page 10: Package Content
< Part 2 > < 2.1 > Package Content - iOP-W2400X IOP-W2400X 24" High Resolution LCD display X 1 6ft VGA cable X1 Power cord X 1 Remote controller X 1 Basic I/O P. 6... - Page 11 < 2.2 > Structure Diagram - iOP-W2400X 24" High Resolution LCD Display Front view JOP-W2400X (T) Rear case Rear view ( f ) LCD panel ( D Audio speaker, pair Universal open frame mounting ® o i> ♦ * m f> ©...
- Page 12 < 2.2 > Dimension - iOP-W2400X Front View Side View 32,837 37,37 37,37, 76 , 76 37,37 37,37,3732.2"? JOP-W2400X o r ' 17.5 80,6 _ ^ £ 518.4 617,4 UNIT: mm Rear View 1mm = 0.03937 inch M4*4pcs 181.3 586,4 Bottom View 617,4 o °...
- Page 13 24" High Resolution LCD Display < 2.3 > Installation - JOP-W2400X ( 1 ) Universal mount '"■ ^::r- 32-237J37.3 • 8 - R! ( I I ) VESA mount (100*100mm ) ...-•' ...-" M4 screw Hardware and M4M pcs for VESA mounting are not provided...
-
Page 14: Product Specifications
< Part 3 > < 3.1 > Product Specifications iOP-W2400X Mechanical Mechanical Mechanical Mechanical Mechanical Mechanical iAP / iNAP-W2400X Design Design Design Design Design Design Front Panel Black. RAL 9005 Black. RAL 9005 Rear Casing Black, RAL 9005 VESA Mounting 100 x 100mm 100x 100mm Other Mounting... - Page 15 < 3.1 > Product Specifications 24" High Resolution LCD Display Regulatory Safety FCC & CE certified Environmental RoHS2 & REACH compliant Environmental Environmental Environmental Environmental Environmental Operating Operating Temperature 0 to 50"C degree Conditions Conditions Conditions Conditions Conditions 20-90%, non-condensing Humidity Storage Storage...
-
Page 16: On-Screen Display Operation (Osd )
< 3.2 > On-screen Display Operation ( OSD ) Power light © < ► < ► ♦ * • Green = On • Orange = Power saving M e m b r a n e S w i t c h F u n c t i o n Power on / off LCD Display the OSD menu... - Page 17 < 3.2 > On-screen Display Operation ( OSD ) 24" High Resolution LCD Display © Audio Audio mode: Movie / Voice / Normal / Music mode to choose \udio mode Volume: Adjust the volume of sound Volume Bass Set the value of bass sound Audio track Treble: Set the value of treble sound...
-
Page 18: Picture In Picture ( Pip ) / Picture By Picture ( Pbp ) R14
< 3.3 > How to Use Picture In Picture ( PIP ) Picture By Picture ( PBP ) < 3.3.1 > Picture in Picture ( PIP ) Mode Display the screen in the Main screen. OSD Menu • MISC • PIP Mode •... - Page 19 24" High Resolution LCD Display < 3.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu - MISC -* PIP Mode • PBP Main screen Sub screen Size LCD Monitor Main / Sub screen 1920x1200 955x716...
-
Page 20: Remote Controller ( Rc-2 )
< 3.4 > Remote Controller ( RC-2 ) & © © © ® © © © © ® <E) (MENUJ f/\) ^EL=CTJ ksPECTJ <D M0W@ <£> f i-^z O © 0 0 © ( e c u ^ (sWA=) Q j J J ©... -
Page 21: Part. 4 > Options
< Part 4 > O p t i o n s 24" High Resolution LCD Display < 4.1 > Option Table Options i A P / i N A P i O P • Touchscreen MCS multi-screen control MIL-type / lockable connector DC Power •... - Page 22 < 4.2 > Options : 3G HD / SD-SDI input iTechLCDs' SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with NetView Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, iTechLCD provides a SDI input module without using additional space or power and it comes standard with a 2-year warranty.
-
Page 23: Mcs
24" High Resolution LCD Display < 4.3 > Options : MCS More control is always good. Especially when it is necessary and ( Multi-display Control) easy. iTechLCD provides MCS solution to control the OSD of various N e t V i e w LCD display up to 64 units. The RS-232C is used for the communication between the PC and the first display via a 15 feet serial cable while the CAN bus is used for the various LCD displays cascade together via CAT 5/6... - Page 24 < 4.4 > Options : Touchscreen & driver X24" USB Touchscreen Specification Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model Model e-Resistive Technology Technology Technology Technology Technology Technology Technology Technology Technology Technology Technology Technology Technology...
- Page 25 < 4.4 > Options : Touchscreen & driver 2 4 " High Resolution L C D Display TRB Driver > Please follow the below steps to setup the touch screen:- Step 1. Run the bundled CD disc or download the driver Step 2.
-
Page 26: Mll-Type Or Lockable Connector
< 4.6 > Options MIL-type or Lockable Connector Input Part no. MIL Standard type type MIL - D T L - 26482 MS3470W8-33P tfS^Q DC Power *** Connector Connector (Male) MS3470W14-15P MS3470W14-15P MIL - D T L - 26482 MIL - D T L - 26482 VGA *** VGA *** (Male ) -
Page 27: Tv (Analog)
24" High Resolution LCD Display < 4.7 > Options : TV ( A n a l o g ) Power HDMI HDMI HDMI HDMI DVI-D DVI-D Audio S-Video Audio S-Video R C A R C A Audio Audio (ft| (ft| F = 5 | H H H H F = 5 | H H H H ifHii... - Page 28 I-TECH i-Tech Company LLC C O M P A N Y TOLL FREE: (888) 483-241 8 • EMAIL: info wiTechLCD.com • WEB: www.iTech .com...
