Page 1: User Manual

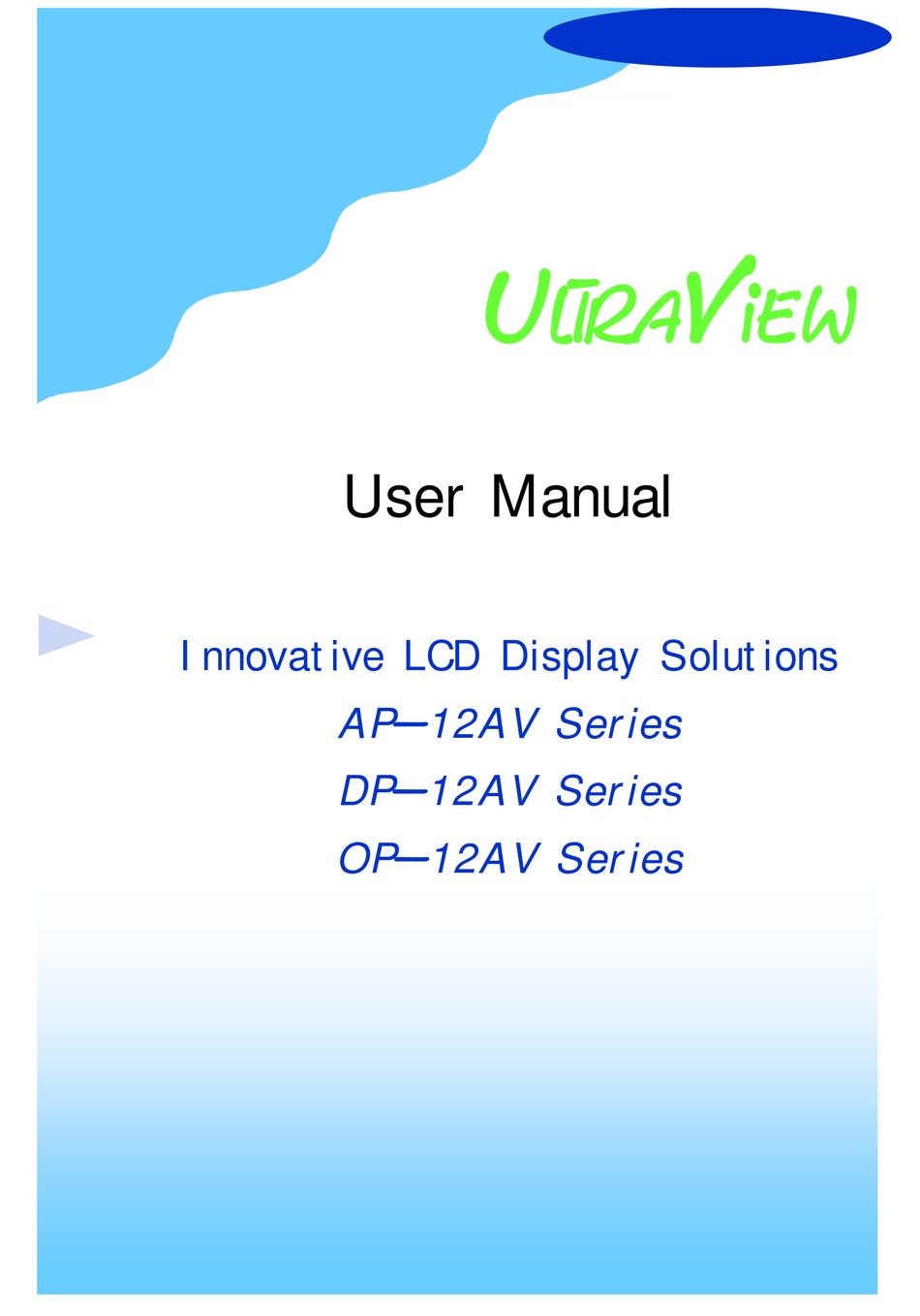

ltra User Manual Innovative LCD Display Solutions AP — 12AV Series DP — 12AV Series OP — 12AV Series... -
Page 2: Table Of Content
AP-12AV/ DP-12AV / OP-12AV Series Table of Content Introduction Installation Using the System Jan 05 1. Table of Content A) Overview B) Features C) Dimension Diagrams D) Technical Specifications A) Package Contents B) Caution to the user C) Cleaning D) Precautions A) Product Views B) I/O Outlet C) Installation Procedures... - Page 3 (TFT) liquid crystal display to provide superior display performance. A maximum resolution of 800 x 600 is ideal for displaying complex graphics and high definition images. Other outstanding designs that enhance this LCD monitor’s performance are Plug & Play compatibility and OSD (On Screen Display) controls. Features High contrast color TFT LCD display support resolution up to 800 x 600.
- Page 4 AP-12AV/ DP-12AV / OP-12AV Series User Manual 2. Introduction Dimension Diagrams AP-12AV series Jan 05...
- Page 5 AP-12AV/ DP-12AV / OP-12AV Series User Manual 2. Introduction Dimension Diagrams DP-12AV series Jan 05...
- Page 6 AP-12AV/ DP-12AV / OP-12AV Series User Manual 2. Introduction Dimension Diagrams OP-12AV series Jan 05...
- Page 7 AP-12AV/ DP-12AV / OP-12AV Series Monitor Power Supply Connectors Video Product Dimension Packing Dimension Jan 05 2. Introduction Technical Specifications Panel 12.1" LCD Panel Display Type TFT LCD active matrix colour Resolutions 800 x 600 Response Time Tr=20ms, Tf=35ms Contrast Ratio...
- Page 8 LCD. 3. Do not pour or spray any liquid directly onto the screen or case of the LCD monitor. Chemical cleaners have been reported to damage the screen or case of the LCD monitor. Jan 05 3.
- Page 9 Product Do not cover or block the vent holes in the case. ● Do not insert sharp objects or spill liquid into the LCD monitor through ● cabinet slots. They may cause accident fire, electric shock or failure. Disconnect the power plug from the AC outlet if you will not use it for an ●...
- Page 10 5. Ensure that the total ampere ratings on all units plugged into the extension cord is not above the cord’s rating. 6. If the power supply cord, which came with your monitor, is to be connected to the PC instead of the wall outlet, this equipment is to be used with UL/TÜV approved computers with receptacle rated...
- Page 11 AP-12AV/ DP-12AV / OP-12AV Series User Manual 4. Using the System Product Views AP Series - Front View AP Series - Rear View Jan 05 P.10...
- Page 12 AP-12AV/ DP-12AV / OP-12AV Series User Manual 4. Using the System Product Views (Cont.) DP Series - Front View DP Series - Rear View Jan 05 P.11...
- Page 13 AP-12AV/ DP-12AV / OP-12AV Series User Manual 4. Using the System Product Views (Cont.) OP Series - Front View OP Series - Rear View Jan 05 P.12...
- Page 14 AP-12AV/ DP-12AV / OP-12AV Series I/O Outlet (1) DC IN (2) PC IN (3) S-Video IN (4) RCA IN Jan 05 4. Using the System Front ： This is for connecting the power cable. ： This can be connected with the D-Sub 15 pin signal connector. ：...
- Page 15 AP-12AV/ DP-12AV / OP-12AV Series Installation Procedures This monitor is equipped with an auto-sensing power supply for voltage ranges 100~240V, 50~60Hz. Please follow the following instruction to install LCD monitor. 1. Make sure that the system power is turned off.
- Page 16 TouchWare software icon on the Windows desktop and control panel. TouchWare will also determine multiple monitor configurations at this time. For details of Custom option, please refer to the website of 3M and download the user guide of TouchWare software.
- Page 17 AP-12AV/ DP-12AV / OP-12AV Series Setup Touchscreen For Windows 95, 98, Me, NT4.0, 2000 & XP (Cont.) Once installation is complete, restart the system. As the system restarts, Windows detects and loads the driver. For serial controllers, restart the system. As the system restarts, Win- ●...
- Page 18 AP-12AV/ DP-12AV / OP-12AV Series Setup Touchscreen For DOS (Cont.) Type INSTALL followed by the source disk drive, the destination drive, and the destination directory. For example, the following command copies the files from Drive A (source drive) to Drive C (destination drive) and the \MTS\TOUCH directory : INSTALL A: C:\MTS\TOUCH Press Enter.
- Page 19 AP-12AV/ DP-12AV / OP-12AV Series Setup Touchscreen For DOS (Cont.) Loading the DOS Touchscreen Driver After you install the files for the DOS touchscreen driver, you must load the driver before you can run a DOS touch application or open the DOS Touchscreen control panel.
- Page 20 AP-12AV/ DP-12AV / OP-12AV Series OSD Switch Power Input Select: OSD Menu: Increase(à): Decrease(ß): Power Switch: Jan 05 4. Using the System Menu/Selection Exit Right Left This button is used to select CVBS for composite video input, RGB for VGA input and S-Video for Super-Video input This button is used to enter OSD main Menu This button is used to adjust the increasing or next value of...
-
Page 21: Main Menu
AP-12AV/ DP-12AV / OP-12AV Series OSD Control For VGA Input Version LCD Membrane Diagram Main Menu Bright / Contrast To enter into the Bright, Black level & Contrast sub-menu ● Auto Adjust To perform automatic optimisations of all functions ● An “... - Page 22 AP-12AV/ DP-12AV / OP-12AV Series OSD Control For VGA Input Version Bright / Contrast 1. Brightness To perform brightness adjustment of the input RGB signal ● Use the Left & Right button to adjust and button ● 2. Contrast To adjust the contrast level of the input signal ●...
- Page 23 AP-12AV/ DP-12AV / OP-12AV Series OSD Control For VGA Input Version MISC 1. Information The first header row shows the current resolution setup ● The second header row shows the horizontal frequency of the current ● input signal The third header row shows the vertical frequency of the current input ●...
-
Page 24: Colour Configuration Page
AP-12AV/ DP-12AV / OP-12AV Series OSD Control For Video Input Version OSD Control For Video Input Version Jan 05 4. Using the System Colour Configuration Page Colour Brightness Contrast Colour Adjust Exit Brightness ︰ Adjust the brightness value from 1 to 100 using (à) and (ß) buttons. - Page 25 AP-12AV/ DP-12AV / OP-12AV Series OSD Control For Video Input Version Jan 05 4. Using the System Picture Configuration Page Picture H.Position V.Position Sharpness Phase Clock Exit H.Position ︰ Press (à) shifting display image to right with value from 0 to 100; Press (ß) shifting display image to left from value 0 to 100.
-
Page 26: Auto Adjust
AP-12AV/ DP-12AV / OP-12AV Series OSD Control For Video Input Version Jan 05 4. Using the System Function Configuration Page Function Auto Adjust Auto Position Auto Phase Auto Clock Exit Auto Adjust ︰ Enable or disable function for auto adjusting brightness, contrast, color etc. Yes ︰... -
Page 27: Osd Timer
AP-12AV/ DP-12AV / OP-12AV Series OSD Control For Video Input Version Jan 05 4. Using the System OSD Menu Configuration Page OSD Menu Language OSD H.Position OSD V.Position OSD Timer Translucent Exit Language ︰ Change language of OSD Menu for English or traditional Chinese OSD H.Position ︰... - Page 28 AP-12AV/ DP-12AV / OP-12AV Series OSD Control For Video Input Version OSD Control For Video Input Version Jan 05 4. Using the System Miscellaneous Mode Select Reset Exit Mode Select ︰ Switch the display size for 640 x 400 or 720 x 400 in DOS mode Reset ︰...
