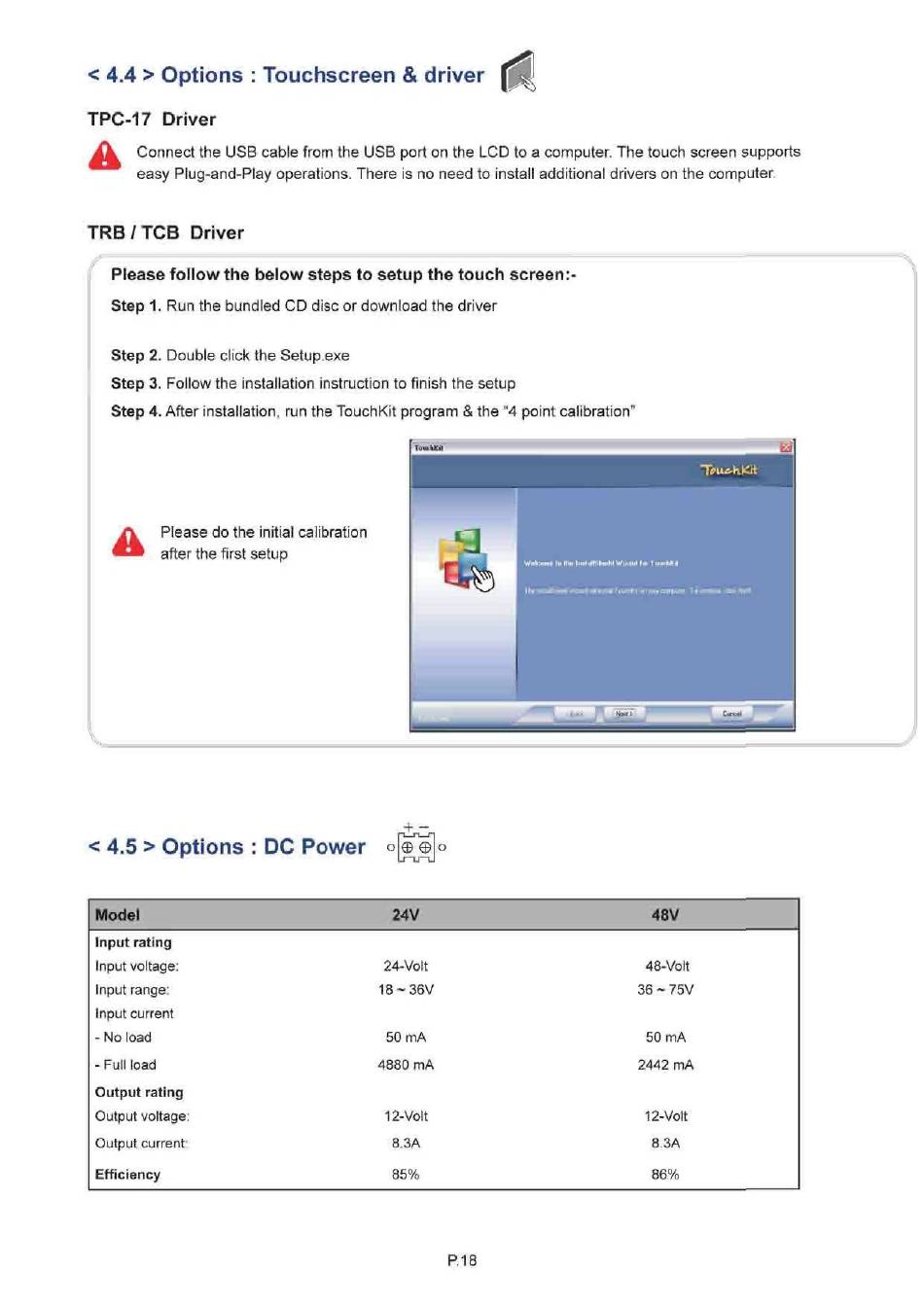

I-Tech iHAP-1700 User Manual page 22

< 4.4 > Options : Touchscreen & driver
TPC-17 Driver
Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports
easy Plug-and-Play operations. There is no need to install additional drivers on the computer.
T R B / T C B Driver
Please follow the below steps to setup the touch screen:
Step 1. Run the bundled CD disc or download the driver
Step 2. Double click the Setup.exe
Step 3. Follow the installation instruction to finish the setup
Step 4. After installation, run the TouchKit program & the "4 point calibration"
Please do the initial calibration
after the first setup
< 4.5 > Options :
Model
Input rating
Input voltage:
Input range:
Input current
- No load
- Full load
Output rating
Output voltage:
Output current
Efficiency
flo-Mil
+ -
DC Power
24V
24-Volt
1 8 - 3 6 V
50 mA
4880 mA
12-Volt
8.3A
85%
HI
P.18
TouchKit
48V
48-Volt
36 r 75V
50 mA
2442 mA
12-Volt
8.3A
86%
