I-Tech iHAP-1700 User Manual page 6

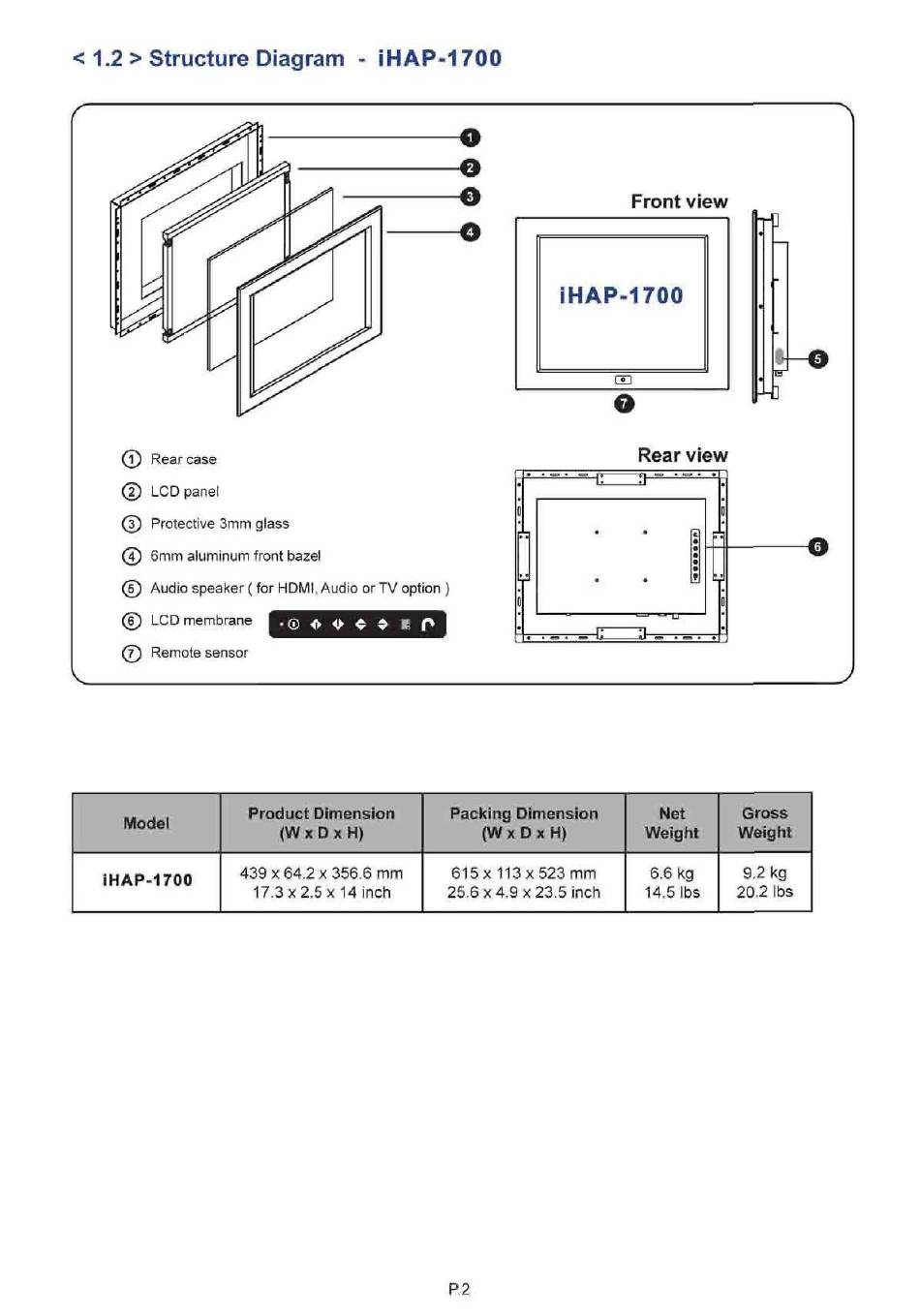

< 1.2 > Structure Diagram - iHAP-1700
(T) Rear case
© LCD panel
( | ) Protective 3mm glass
(4) 6mm aluminum front bazel
(5) Audio speaker (for HDMI, Audio or TV option )
(e) LCD membrane
(7) Remote sensor
Model
439x64.2x356,6 mm
iHAP-1700
® O » « * t
Product Dimension
(W x D x H)
17.3 x 2.5 x 14 inch
-
g •
- •
1
a
f*
T—. — .—=—1.»
Packing Dimension
(W x D x H)
615 x 113x523 mm
25.6x4.9x23.5 inch
P. 2
Front view
T-0
■ - ]
Rear view
[
• ra
• -
r
a 0-J3
-
■ ! — = — . — . —
Gross
Net
Weight
Weight
9.2 kg
6.6 kg
20.2 lbs
14.5 lbs
