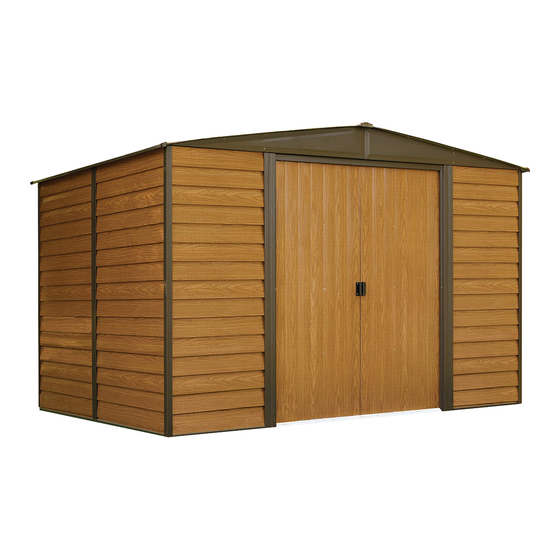

Arrow Storage Products ED108 Owner's Manual & Assembly Instructions

Arrow Storage Products ED108 Owner's Manual & Assembly Instructions

Advertisement

Quick Links

Owner's Manual & Assembly Instructions
ED01
Model No. ED108
723710717
Storage Area:
74 Sq. Ft.
6,9 m
BUILDING DIMENSIONS * Size rounded off to the nearest foot
*Approx.
Base
Size
Size
10' x 8'
121" x 92 3/4"
3,0 m x 2,3 m
307,3 cm x 235,6 cm
WR108
ED108BS
ED108L
Missing Parts, Questions on Assembly?
Call: 1-800-851-1085 or
assist@arrowsheds.com
Do not return to dealer, they are not
equipped to handle your requests.
470 Cu. Ft.
13,3 m
2
3
Exterior Dimensions
(Roof Edge to Roof Edge)
Width
123 1/4"
313,1 cm
241,9 cm
ED108LG
ED108SB
ED108T
ED108Z
VDGY108
Depth
Height
95 1/4"
82 1/8"
118 1/4"
208,6 cm
300,4 cm
SBVD108 A
WR108EU
VD108EU A
VDGY108EU
697.68618
CAUTION: SOME PARTS HAVE SHARP EDGES. CARE
MUST BE TAKEN WHEN HANDLING THE VARIOUS
PIECES TO AVOID A MISHAP. FOR SAFETY SAKE,
PLEASE READ SAFETY INFORMATION PROVIDED IN
THIS MANUAL BEFORE BEGINNING CONSTRUCTION.
WEAR GLOVES WHEN HANDLING METAL PARTS.
Interior Dimensions
(Wall to Wall)
Width
Depth
Height
90"
80 7/8"
228,6 cm 205,4 cm
VD108 A
Door
Opening
Width
Height
55 1/2"
69 1/4"
141,0 cm
175,9 cm

Advertisement

loading
Need help?

Need help?

Do you have a question about the ED108 and is the answer not in the manual?

Questions and answers

Summary of Contents for Arrow Storage Products ED108

  • Page 1 Owner's Manual & Assembly Instructions ED01 Model No. ED108 ED108LG SBVD108 A WR108 ED108SB WR108EU ED108BS ED108T VD108 A ED108L ED108Z VD108EU A VDGY108 VDGY108EU 697.68618 Missing Parts, Questions on Assembly? Call: 1-800-851-1085 or assist@arrowsheds.com Do not return to dealer, they are not equipped to handle your requests.
  • Page 3 BEFORE YOU BEGIN..Owner's Manual Before beginning construction, check local building codes regarding footings, location and other requirements. Study and understand this owner's manual. Important information and helpful tips will make your construction easier and more enjoyable. Assembly Instructions: Instructions are supplied in this manual and contain all appropriate information for your building model.
  • Page 4: Tools And Materials

    PLAN AHEAD..Watch the Weather: Be sure the day you select to install your building is dry and calm. Do not attempt to assemble your building on a windy day. Be careful on wet or muddy ground. Teamwork: Whenever possible, two or more people should work together to assemble your building.
  • Page 5 SAFETY FIRST..Safety precautions are important to follow throughout the construction of your building. •Care must be taken when handling various •Practice caution with the tools being used in pieces of your building since some contain the assembly of this building. Be familiar with sharp edges.
  • Page 6 CARE & MAINTENANCE..Finish: For long lasting nish, periodically clean and wax the exterior surface. Touch-up scratches as soon as you notice them on your unit. Immediately clean the area with a wire brush; wash it and apply touch-up paint per manufacturer's recommendation. Roof: Keep roof clear of leaves and snow with long handled, soft-bristled broom.
  • Page 7 ACCESSORIES..FLOOR FRAME KITS ROOF STRENGTHENING (heavy snow load) KITS Extra roof beams and gable braces designed for added protection against heavy snow accumulation. Increases the strength of your roof. BEFORE AFTER ANCHOR KITS Model No. AK4 MODELS FB47410, FB5465, FB106-A Anchor Kit contains heavy-duty steel FB109-A and FB1014-A augers, 60' (18 m) of steel cable and...
  • Page 8 ORDERING ACCESSORIES..02/13 We recommend that you purchase accessory items from your local storage building dealer whenever possible; however, because the full line of accessories is not always available from all dealers, Arrow is o ering them to you on a direct basis. There are two ways to order Arrow Storage Building Accessories: Option 1 Option 2...
  • Page 9 Base The Base For Your Building No matter which of the options below you choose for a base, an ARROW ANCHORING KIT is recommended as an e ective method of properly securing your building after assembly is complete. OPTION 1: Directly on ground (earth) Assemble your building directly on level ground (grass, dirt, rock, sand, etc.).
  • Page 10 Anchoring Anchoring Down The Building It is important that the entire oor frame be anchored after the building is erected. Below are recommended ways of anchoring. Anchoring into Wood/Post: Arrow Anchoring Kit: (Model No. AK4 or 60298) Use 1/4" (6 mm) Wood Screws. There are 1/4" (6 mm) Recommended for use with any suggested base.
  • Page 11 Hardware BB11ctr Remove from bag of screws and save for the last step 65900A 65923 65004 #10Bx1/2" (13 mm) #8-32x3/8" (10 mm) #8Ax5/16" (8 mm) 65103 Black Screw (8) #8-32 Hex Nut (145) Bolt (145) Screw (324) (Packed with Screws) 66646 5971 66045...
  • Page 12: Parts List

    Parts List ED12 Assembly Part Part Quantity Check Key No. Number Description in Carton List 8934 Ramp 9367 Front Floor Frame 8936 Rear Floor Frame 9338 Right Rear Wall Angle 9366 Door Track 5287 Splice Post 9339 Left Rear Wall Angle 6001 Left Gable 6000...
  • Page 13 Assembly by Key No. ED13...
  • Page 14 Step 1 8934 Ramp (1) Parts Needed For 9367 Front Floor Frame (2) Floor Frame Assemblies 8936 Rear Floor Frame (2) G14 ctr 9203 Side Floor Frame (4) (13) 9367 The front oor frame is made up of 8934 three pieces. The side floor frames and the rear floor frame are made 9367 up of two pieces.
  • Page 15: Frame Assemblies

    Step 2 9338 Right Rear Wall Angle (1) Parts Needed For 9339 Left Rear Wall Angle (1) Frame Assemblies 9340 Right Side Wall Angle (2) Y15 ctr 9341 Left Side Wall Angle (2) The main frame pieces reinforce the walls. These pieces will later be installed at the top edge of the side walls and the rear wall.
  • Page 16 Step 3 Parts Needed For 10470 Roof Beam (8) Roof Beam Assemblies D16 ctr (30) 10470 The roof beams join the two gables and support the roof panels. The main roof beam is made up of four 10470 pieces overlapped back to back at the center.
  • Page 17 Step 4 Parts Needed For 6403 Door Track Splice (1) Door Track Assembly 9366 Door Track (2) A17 ctr NOTE: Door Track Splice (painted part) 6403 The door track assembly supports the sliding doors and reinforces the front wall. It is made up of three pieces. Using the door track splice, (painted), join the door track (galvanized) pieces end-to-end as...
  • Page 18 Step 5 Front Floor Assembly (1) Parts Needed For Side Floor Assembly (2) Floor Frame Rear Floor Assembly (1) G18 ctr RIGHT REAR 9203 Assemble the four corners of STEP 8936 the oor frame using two screws at each corner as shown. At the front corners fasten bolts through from the bottom with nuts on top.
  • Page 19 5288 Corner Post (4) Step 6 Parts Needed For Door Track Assembly (1) Posts/Top Frames Rear Wall Angle Assembly (1) Y19 ctr Side Wall Angle Assembly (2) (22) REAR 5288 NOTE 5288 The remainder of the building assembly requires many hours and more than one person.
  • Page 20 Step 7 Parts Needed For 5287 Splice Post (3) Splice Post/Door Jamb 7311 Door Jamb (2) Y20 ctr (12) STEP The door jambs reinforce the door opening and provide an attractive trim. The splice post supports the 5287 wall. 5287 Position splice post at the center of the rear wall and fasten using 4 bolts and nuts into rear wall angle...
  • Page 21 Step 8 Parts Needed For 9344 Siding Stud (6) Studs/Front Channel 9365 Front Wall Channel (2) Y21 ctr The studs provide a surface for at- taching the siding panels. Following dimensions, measuring from the ends of angles, place a stud between each corner and splice post.
  • Page 22 Step 9 Parts Needed For 8584 Side Siding (12) Side Siding Y22 ctr (48) (28) Each screw and bolt in the wall requires a washer. STEP CORRECT INCORRECT Slide side siding into channels STEP of corner and splice posts, at edge 8584 upward, bottom edge down rest- ing on floor frame.
  • Page 23 Step 10 Parts Needed For 8736 Rear Siding (6) Rear/Front Siding 8737 Front Siding (6) Y23 ctr STEP STEP (48) (14) Fasten Top Center of Last Siding to Stud Slide rear siding into channel of 8736 corner and splice posts fastening to rear frame as shown in previous 8736 step.
  • Page 24 Step 11 Parts Needed For 6000 Right Gable (2) 6001 Left Gable (2) Gable Assemblies 5971 Roof Beam Bracket (4) Y24et ctr STEP Edge Trim (Plastic Piece) The gables go on top of the front and rear walls to support the roof beams. NOTE The gables are packed nested together and might be mistaken...
  • Page 25 Step 12 Left Gable Assemblies (2) Parts Needed For Right Gable Assemblies (2) Gables/Braces 6635 Gable Brace (2) X25 ctr (20) Lift and fasten a right and left gable, under angle at corner, to the rear wall angle with screws. Hint: On the rear gable, use a bolt and nut at the overlapping rear wall angle.
  • Page 26 Step 13 Parts Needed For Main Roof Beam (1) Roof Beams Single Roof Beam (2) Y26 ctr STEP (12) Spread the two halves of the main roof beam and fasten the roof beam Single Roof Beam Assembly to the gable brace of the front gable. Fasten the other end of the main roof beam to the gable brace of the rear gable.
  • Page 27: Right Roof Panel

    Step 14 Parts Needed For 8468 Right Roof Panel (1) Right Roof Panel Y27et ctr STEP 8468 8469 Installing the roof panels is best done 7483 with a step ladder. Begin installing 7483 roof panels at the back right corner of the building.
  • Page 28: Roof Assembly

    8468 Right Roof Panel (1) Step 15 8469 Left Roof Panel (2) Parts Needed For 7483 Roof Panel (2) Roof Assembly 6529 Roof Panel (2) Y28 ctr 8840 Ridge Cap (1) STEP 8469 Left Roof Panel Weather Stripping (23) (38) 7483 Roof Panel Tape Roll 7483 Roof Panel...
  • Page 29 8486 Ridge Cap (1) Step 16 Parts Needed For 7483 Roof Panel (2) Panels/Ridge Cap/Trim 8485 Left Side Roof Trim (2) Y29 ctr 8836 Right Side Roof Trim (2) (16) (48) STEP Install the second ridge cap overlapping the rst ridge cap while 8486 installing the remaining roof panels.
  • Page 30: Door Assembly

    Step 17 3719 Door Handle Brace (2) Parts Needed For 10472 Right and Left Doors (2) Door Assembly 10497 Horizontal Door Brace (4) BB30 ctr 6301 Vertical Door Brace (2) (12) The steps on this page tell how to assemble the right door. You will per- form exactly the same procedures for 66045 the left door.
  • Page 31 Step 18 Parts Needed For Right Door Assembly (1) Door Installation & Adjustment Left Door Assembly (1) A31ctr Horizontal Door Brace Gable Door Track Door Slide From inside the building, put the bottom of the right door assembly (on your left when you are inside the building) behind door jamb into the front frame track.
  • Page 32 ED108 ED108BS ED108SB ED108LG 697.68618 SBVD108 A ED108Z VDGY108EU ED108L ED108T WR108EU VD108 A VD108EU A VDGY108 WR108 ED32 Anchoring and Floor Frame Anchoring Anchor your building at this time. Floor Frame If you have purchased a Floor Frame Kit you need to install it at this time.
