Confer Plastics STEP-1 Assembly And Installation Manual page 2

CONFER-STEP MODEL # STEP-1
Inpool Steps from Confer Plastics
PARTS LIST
Qty Description
2 - Bases
2 - Side Panels
2 - Handrails
2 - Long Handrail Posts
2 - Short Handrail Posts
4 - Risers
4 - Steps (with 16 wedges)
See Step 1

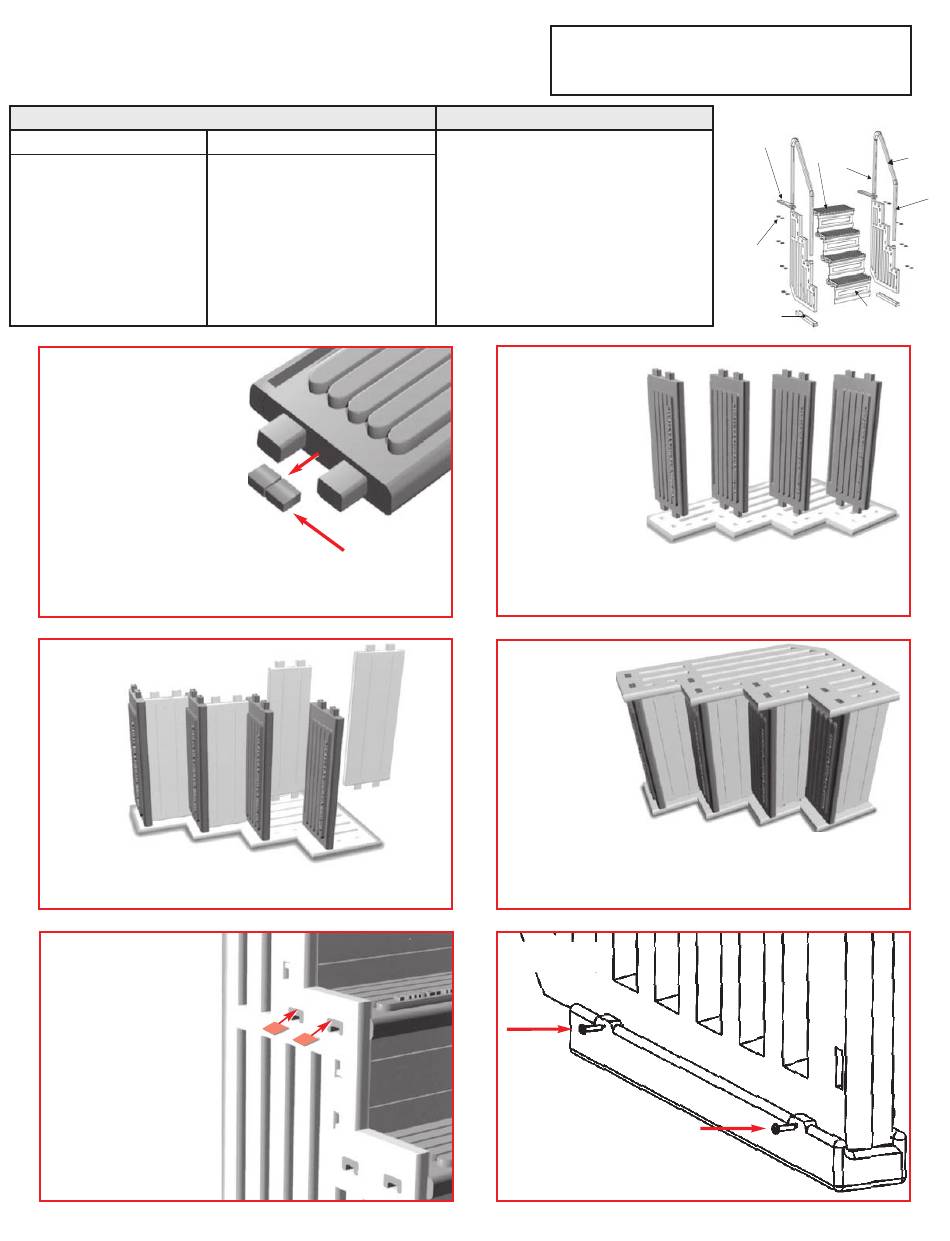

Step 1
Using pliers remove the
locking wedges from both
ends of each step
and SAVE.
The four handrail posts
are joined together as one
unit and must be separated
before starting assembly.
Using a sharp knife, carefully
cut the posts apart. When
finished you will have two
long posts and two short
posts as required in step #7.
Step 3
Insert a riser between each of the steps so that the ends of the risers
align in the riser recesses on the same panel.
Note: Position riser so center hole faces "back" of steps.
Step 5
Secure each step by
fully inserting the locking
wedges, saved from
step #1, between the
side panel and the top
surface of both ends of
each step.
2
HARDWARE
Qty Description
22 - #10 x 1-1/4" Screw
2 - Label - No Jumping/Diving • Cordless Drill Motor
2 - Mounting Brackets
Remove wedges
and save for Step 5.
NOTE : FOR INSTALLATION ON FLAT BOTTOM
ABOVE GROUND POOLS ONLY. NOT FOR
DISHED/SLOPED BOTTOMS
TOOLS REQUIRED FOR ASSEMBLY:
• Mallet or hammer and block of wood
• Phillips Screwdriver
• 1/8" Drill Bit
• Knife
• Pliers
• Liquid Soap or Spray Lubricant
• Sand (approximately 40 lbs.)
Step 2
Make sure
wording is facing
forward.
Lay one of the
side panels down
on a clean, flat
surface. Push the
end of each step
into the openings
of the side panel. Make sure that the riser groove in the top of each
step is lined up with the riser recess in the side panel and the
engraved markings "Danger No Jumping/No Diving" are facing
toward the front of the unit.
Step 4
Position the second side panel over the steps and risers and press
the panel down so that each step and riser are fully seated into the
second side panel. It may be necessary to tap the side panel, using
a mallet or a hammer and block of wood, to fully seat it.
Step 6
Position the base
under the side panel.
Secure the base to each
side panel with four #10 x 1-1/4"
screws. Use the molded locators on
each tab of the base.
MOUNTING BRACKET
STEP
LONG HANDRAIL
POST
WEDGES (SEE STEP 1)
RISER
BASE
HANDRAIL
SHORT HANDRAIL
POST
