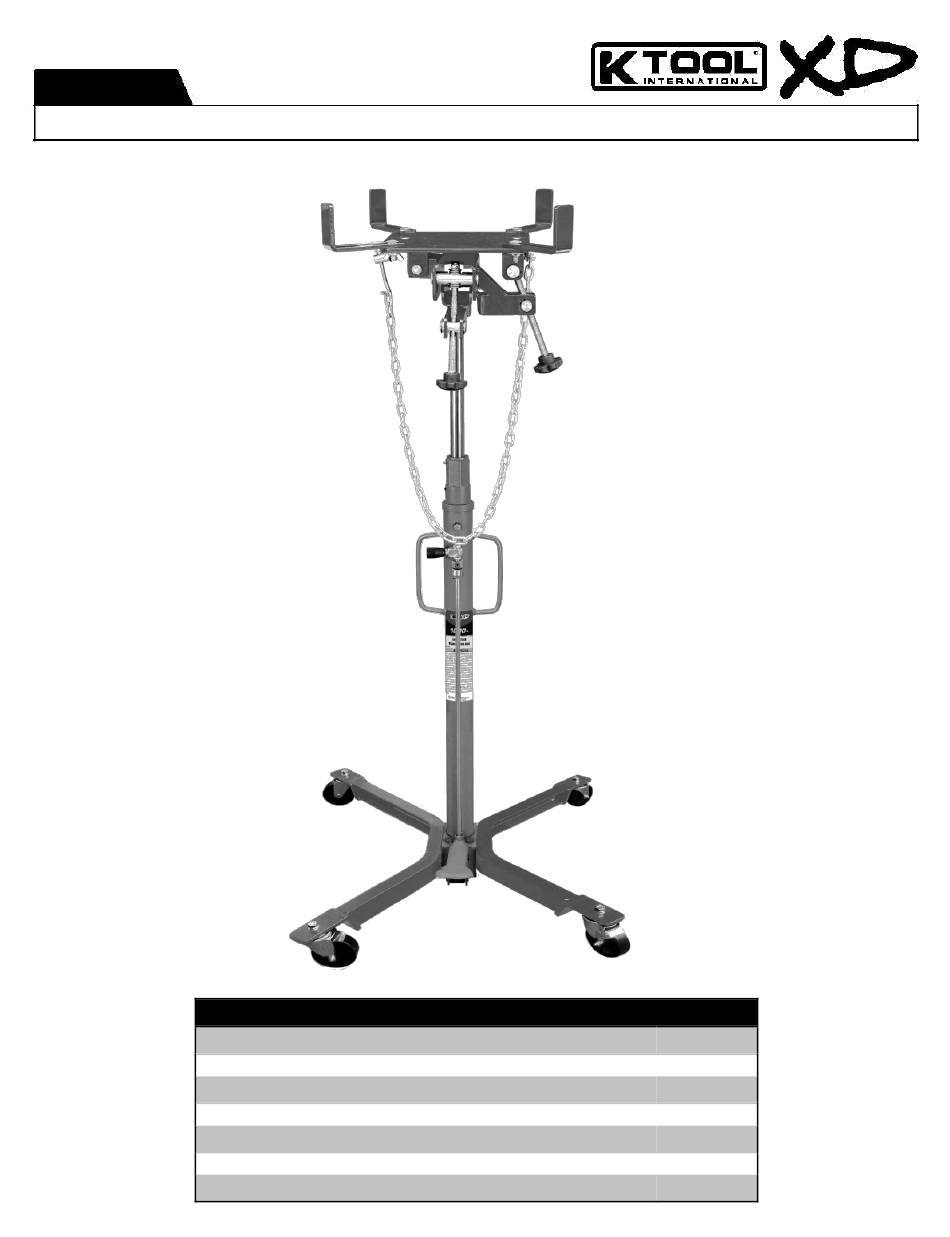

KTI63502A

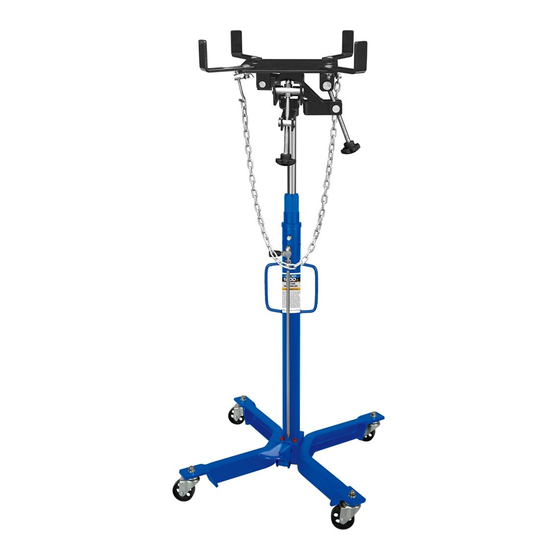

1000 LB. Single Stage Transmission Jack
OWNERS MANUAL
Capacity...........................................................................
Low Height.......................................................................
High Height.......................................................................
Saddle Tilt Forward..........................................................
Saddle Tilt Backward........................................................
Saddle Lateral Tilt.............................................................
Shipping Weight................................................................
KTI63502A
SPECIFICATIONS
1000 Lbs
48.2"
80.1"
43˚
24˚
10˚-27°
116LBS
11/10/2019
Advertisement
Table of Contents
Related Manuals for K Tool International XD KTI63502A
Summary of Contents for K Tool International XD KTI63502A
- Page 1 KTI63502A 1000 LB. Single Stage Transmission Jack OWNERS MANUAL SPECIFICATIONS Capacity................1000 Lbs Low Height............... 48.2" High Height............... 80.1" Saddle Tilt Forward............43˚ Saddle Tilt Backward............24˚ Saddle Lateral Tilt............. 10˚-27° Shipping Weight..............116LBS KTI63502A 11/10/2019...
-
Page 2: Warning Information
WARNING INFORMATION This is the safety alert symbol. It is used to alert you to WARNING: Indicates a hazardous situation WARNING potential personal injury hazards. Obey all safety messages which, if not avoided, could result in death that follow this symbol to avoid possible injury or death. or serious injury. -
Page 3: Preventative Maintenance
INSPECTION AND SETUP INSTRUCTIONS Visual inspection should be made before each use of the transmission jack, checking for leaking hydraulic fluid and damaged, loose or missing parts. Each jack must be inspected by a manufacturer’s repair facility immediately if accidentally subjected to an abnormal load or shock. -
Page 4: Troubleshooting
Lubricate moving parts, excluding the hydraulic components, monthly with a general purpose grease. Periodic lubrication should be subject to a maintenance schedule based on frequency of use. A weekly lubrication inspection is suggested. Premature wearing of components due to lack of or inadequate lubrication is not eligible for warranty consideration. Inspect the jack before each use. -
Page 5: Parts Breakdown
KTI63502A 1000 LB. Single Stage Transmission Jack PARTS BREAKDOWN KTI63502 KTI63502A 11/10/2019... - Page 6 1000 Single Stage Transmission Jack PARTS BREAKDOWN REF. # PART # DESCRIPTION QTY. REF. # PART # DESCRIPTION QTY. Screw Spring Handle Bolt KTP63502A40 Connect Bar Handle Connector KTP63502A40 Pin KTP63502A40 Release Valve Bar Screw O Ring Spring Seat Steel Ball Spring Release Valve Seat Spring Seat...
