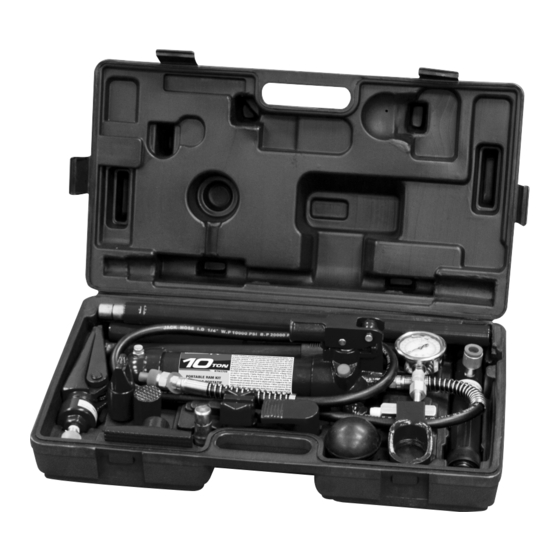

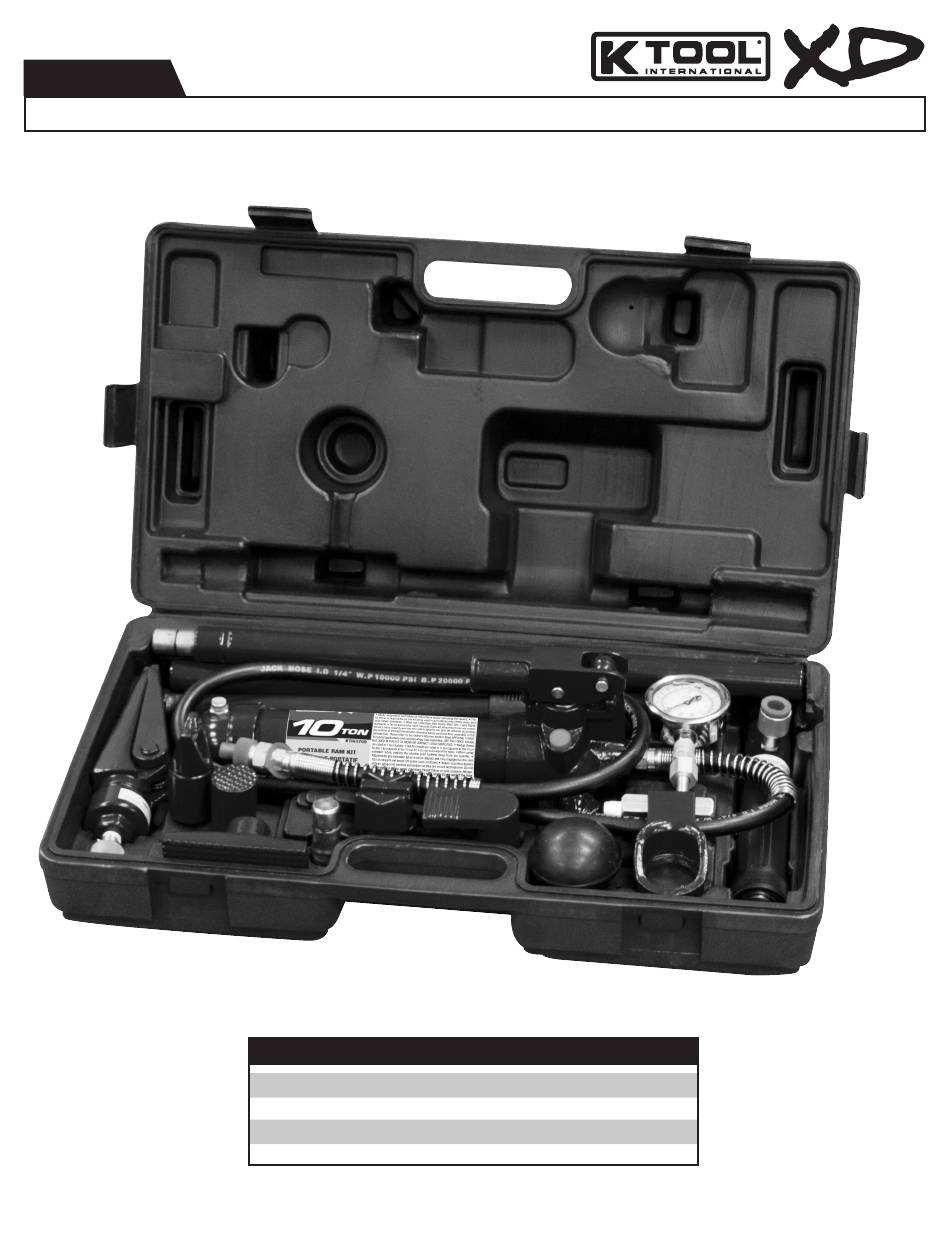

10 TON PORTABLE RAM KIT
OWNERS MANUAL
KTI63709
SPECIFICATIONS
Ram Capacity ................................................. 10 Ton @ 7,250 psig
Ram Minimum Height .......................................................... 12.68"
Stroke ..................................................................................... 5.12"
Fluid Capacity .................................................................... 17.5 oz.
07/10/14
Advertisement
Table of Contents
Related Manuals for K Tool International KTI63709
Summary of Contents for K Tool International KTI63709
- Page 1 KTI63709 10 TON PORTABLE RAM KIT OWNERS MANUAL SPECIFICATIONS Ram Capacity ..........10 Ton @ 7,250 psig Ram Minimum Height ............12.68" Stroke ..................5.12" Fluid Capacity ..............17.5 oz. KTI63709 07/10/14...
-
Page 2: Warning Information
• Failure to heed these warnings may result in personal injury, property damage, or both. CONSEQUENCES OF NOT AVOIDING HAZARDOUS SITUATIONS WARNING Failure to read this manual completely and thoroughly, failure to understand its OPERATING INSTRUCTIONS, SAFETY WARNINGS, MAINTENANCE INSTRUCTIONS and comply with them, and failure to comply with the METHODS TO AVOID HAZARDOUS SITUATIONS could cause accidents resulting in serious or fatal personal injury and/or property damage. KTI63709 07/10/14... - Page 3 (#P04). Completely retract the ram before adding hydraulic fluid. Do not overfill in order to avoid personal injury and hydraulic malfunction. Use only hydraulic jack oil, Chevron Hydraulic Oil AW ISO 32 or its equivalent Unocal Unax AW 150 . Other fluids will cause damage to the hydraulic seals. KTI63709 07/10/14...
- Page 4 Purge air from hydraulic system by following procedure under SETUP. ACTION: PROBLEM: UNIT WILL NOT LIFT TO FULL HEIGHT Purge air from hydraulic system by following procedure under SETUP. ACTION: PROBLEM: UNIT STILL DOES NOT OPERATE Contact K-Tool International authorized hydraulic service center. ACTION: KTI63709 07/10/14...
- Page 5 INTERNATIONAL PROFESSIONAL LIFTING EQUIPMENT. ALL OTHER WARRANTIES, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. KTI63709 07/10/14...
- Page 6 KTI63709 10 TON PORTABLE RAM KIT 10 TON RAM KIT PARTS LIST AND DRAWING B. HOSE A. PUMP D. SPREADER C. RAM Item # Part # Description Quantity Item # Part # Description Quantity KTP63709A Pump (Incl. Hose) KTP6370903 Flat Base...
- Page 7 KTI63709 10 TON PORTABLE RAM KIT KTP63709A 10 TON PUMP PARTS BREAKDOWN Item # Part # Description Quantity Item # Part # Description Quantity Valve Block Screw Protector Oil Filter Nylon Ring O-Ring Valve Base Reservoir Valve Cover Tie Rod...
- Page 8 KTI63709 10 TON PORTABLE RAM KIT KTP63709C RAM PARTS BREAKDOWN Item # Part # Description Quantity KTP63709R01 Cover Circlip Piston Rod Circlip Bushing Nylon Ring Sealing Ring Circlip Spring Screw KTP63709R12 Protection Cap Ring for Ram Cylinder Screw KTP63709CP Coupler (Includes: S10, S11, P11, S12, S13) Items identified by an asterisk are available in Ram Seal Kit, KTP63709RSK.
-
Page 9: Especificaciones
KTI63709 10 TON EQUIPO PORTÁTIL DE PISTONES MANUAL DEL PROPIETARIO ESPECIFICACIONES Ram Capacidad ........ 10 Toneladas @ 7,250 psig Altura mínima del pistón ......... 322mm/12.68" Recorrido .............. 130mm/5.12" Capacidad Fluida ............... 17.5 oz. KTI63709 07/10/14... -
Page 10: Información De Advertencia
La versatilidad del uso está limitada sólo por la imaginación y la ingeniosidad de su operador; por ende, K Tool International no podrá responsabilizarse por los daños al producto o lesiones personales debido al juicio incorrecto del operador o al uso inadecuado del equipo. -
Page 11: Manual Del Propietario
Retracte el pistón completamente antes de añadir líquido hidráulico. No lo sobrellene para así evitar lesiones personales y el mal funcionamiento hidráulico. Use sólo aceite para gatos hidráulico, aceite hidráulico AW ISO 32 de Chevron o su equivalente Unocal Unax AW 150. Otros fluidos ocasionarán daños a los sellos hidráulicos. KTI63709 07/10/14... -
Page 12: Mantenimiento Preventivo
KTI63709 07/10/14... - Page 13 PROFESIONAL DE K-TOOL INTERNATiONAL. TODAS LAS DEMÁS GARANTÍAS, PARA INCLUIR CUALQUIER GARANTÍA IMPLICADA O MERCANTIBILIDAD O APTITUD PARA CUALQUIER DESTINO PARTICULAR, SON EXCLUÍDAS. ESTA GARANTÍA LE BRINDA UNOS DERECHOS LEGALES ESPECÍFICOS Y USTED PODRÁ TAMBIÉN CONTAR CON OTROS DERECHOS LOS CUALES VARÍAN DE ESTADO A ESTADO. KTI63709 07/10/14...
-
Page 14: Specifications
KTI63709 10 TON PORTABLE RAM KIT GUIDE DU PROPRIÉTAIRE SPECIFICATIONS Ram Capacité ........ 10 Tonnes @ 7,250 psig Hauteur minimale du vérin ........ 322mm/12.68" Course .............. 130mm/5.12" Capacité en fluide............ 17.5 oz. KTI63709 07/10/14... - Page 15 La polyvalence d’emploi est limitée uniquement par l’imagination et l’ingénuité de l’opérateur; c’est pourquoi K Tool International ne peut être tenu responsable de dommages matériels ou de blessures corporelles dus au mauvais jugement de l’opérateur ou à...
-
Page 16: Installation
Ne pas dépasser les niveaux recommandés afin d’éviter tout risque de blessure corporelle et de mauvais fonctionnement du sys- tème hydraulique. Utilisez uniquement de l’huile à cric hydraulique, l’huile hydraulique Chevron AW ISO 32 ou son équivalent Unocal Unax AW 150. Tout autre liquide endommagera les joints hydrauliques. KTI63709 07/10/14... -
Page 17: Entretien Préventif
être lues et discutées avec l’opérateur dans sa langue maternelle par l’acheteur-propriétaire ou toute personne habilitée par lui à le faire, en veillant à ce que l’opérateur en saisisse bien le contenu. KTI63709 07/10/14... - Page 18 PROFESSIONNEL K-TOOL INTERNATIONAL. TOUTES LES AUTRES GARANTIES, Y COMPRIS TOUTE GARANTIE IMPLICITE DE QUALITÉ MARCHANDE OU D'ADÉQUATION À UN USAGE PARTICULIER, SONT EXCLUES. CETTE GARANTIE VOUS DONNE DES DROITS JURIDIQUES PRÉCIS ET VOUS POUVEZ AUSSI AVOIR D'AUTRES DROITS QUI PEUVENT VARIER D'UN ÉTAT (OU D'UNE PROVINCE) À L'AUTRE. KTI63709 07/10/14...
- Page 19 AAA HYDRAULICS • 511A HARBOR BLVD. • W. SACRAMENTO, CA 95691 • (916) 617-2656 CT&S • 1805 E. MAIN ST., STE. E • VISALIA, CA 93292 • (559) 623-2157 COLORADO WILLIAM’S SALES & SERVICE • 11380 W. EXPOSITION AVE. • LAKEWOOD, CO 80226 • (303) 985-8868 CONNECTICUT TOOL & EQUIP SERV SOLUTIONS • 2554 STATE ST. • HAMDEN, CT 06517 • (203) 248-7553 FLORIDA P & H HYDRAULICS • 6530 TRIXEY ST. • JACKSONVILLE, FL 32219 • (904) 781-3558 TRI-CITY HYDRAULICS • 4628 N. FLORIDA AVE. • TAMPA, FL 33603 • (813) 232-1280 J. R. JACK & EQUIP REPAIR • 4513 CLEMENTS RD. • LAKELAND, FL 33811 • (863) 646-8087 R & R TOOL REPAIR • 13591 LINDEN DR. • SPRING HILL, FL 34609 • (352) 263-3587 STIRLING JACK SERVICE • 2110 S.W. 56TH AVE. • WEST PARK, FL 33023 • (954) 987-6910 GEORGIA INDUSTRIAL CONTROLS • 1710 EASTMAN DR. • TIFTON, GA 31793 • (229) 386-2929 BOB'S HYDRAULIC REPAIR • #8 BROWN FOX DR. • ROME, GA 30165 • (706) 234-4471 TOOL SERVICE CO. • 178 MARBLE MILL RD. • MARIETTA, GA 30060 • (404) 524-4249 HAWAII C & C AIR & HYDRAULICS • 94-148 LEOWAENA ST. BLDG.T • WAIPAHU, HI 96797 • (808) 671-8598 ILLINOIS PRO-POINT CO. • 5328 GRAND AVE. • DOWNERS GROVE, IL 60515 • (630) 852-7233 HYDRAULIC SPECIALTY, INC. •1300 WEST ELM ST. • WEST FRANKFORT, IL 62896 • (618) 937-4099 INDIANA ABC SPECIALTY CO. • 1075 KENWOOD AVE. • FORT WAYNE, IN 46805 • (260) 483-8913 TOOLS & EQUIPMENT SERVICE • 6718 EAST 38TH ST. • INDIANAPOLIS, IN 46226 • (317) 632-2208 B&K HYDRAULICS • 2184 S. SALEM RD. • MONROE, IN 46772 • (260) 592-7122 IOWA HYDRA QUIP • 3400 DELAWARE AVE. • DES MOINES, IA 50313 • (515) 265-1453 BROZENE HYDRAULICS • 1400 MT. PLEASANT • BURLINGTON, IA 52601 • (319) 752-4017 KANSAS ACME HYDRAULICS • 815 KANSAS AVE. • KANSAS CITY, KS 66105 • (913) 321-6385 KENTUCKY PEMBERTON TOOL REPAIR • 822 EXETER AVE. • MIDDLESBORO, KY 40965 • (606) 248-7907 LOUISIANA EAGLE SERVICE COMPANY • 2224 LEE ST. • ALEXANDRIA, LA 71301 • (318) 445-6140 MAINE B & M HYDRAULIC JACK REPAIR • 576 MAIN ST. • MADAWASKA, ME 04756 • (207) 728-6713 MARYLAND HYDRAULIC SERVICE, INC • 3304 BARCLAY ST. • BALTIMORE, MD 21218 • (410) 467-9459 KTI63709 07/10/14...
- Page 20 HEARTLAND PNEUMATICS • 3527-C PERRYVILLE RD. • CAPE GIRARDEAU, MO 63701 • (573) 334-9085 MONTANA NORTHERN HYDRAULICS • 2600 17TH ST. NE • BLACK EAGLE, MT 59414 • (406) 761-8079 NEBRASKA FLOHR ELECTRIC SERVICE • 4356 SO. 90TH ST. • OMAHA, NE 68127 • (402) 331-6863 NEW HAMPSHIRE AMERICAN HYDRAULIC CORP. • 1064 GOFFS FALLS RD. • MANCHESTER, NH 03108 • (603) 623-5444 NEW JERSEY COUGAR ELECTRONICS • 622 BROADWAY • LONG BRANCH, NJ 07740 • (732) 870-3302 METRO HYDRAULIC JACK • 1271 MC CARTER HIGHWAY • NEWARK, NJ 07104 • (973) 350-0111 NEW MEXICO A-ONE EQUIPMENT LTD. • 1108 RHODE ISLAND N.E. • ALBUQUERQUE, NM 87108 • (505) 256-0074 NEW YORK ACE HYDRAULIC SERVICE • 6720 VIP PARKWAY • SYRACUSE, NY 13211 • (315) 454-8989 HYDRAULIC JACK/CYLINDER REPAIR • 13457 GENESEE ST. • ALDEN, NY 14004 • (716) 937-6008 AUTOMATIC REPAIR • 130 FLORIDA ST. • FARMINGDALE, NY 11735 • (631) 420-0103 NORTH CAROLINA SOUTHERN HYDRAULIC SERVICE • 6914 STATESVILLE RD. • CHARLOTTE, NC 28269 • (704) 597-9244 CAROLINA TOOL REPAIR • 807 HUFFMAN ST. • GREENSBORO, NC 27405 • (336) 275-6124 NORTH DAKOTA TOOL WAREHOUSE INC. • 127 WEST MAIN AVE. • WEST FARGO, ND 58078 • (701) 282-6151 OHIO MATS EQUIPMENT CO. INC. • 51 PIERCE AVE. • WEST CARROLLTON, OH 45449 • (937) 859-8057 DINGER’S TOOL SERVICE • 22540 STIVERSON RD. • SUGAR GROVE, OH 43155 • (740) 746-0240 A & A HYDRAULIC REPAIR • 5301 W. 161ST ST. • CLEVELAND, OH 44142 • (216) 362-4000 OKLAHOMA HYDRAULIC EQUIPMENT CO. • 2800 WEST CALIFORNIA, STE. A • OKLAHOMA CITY, OK 73107 • (405) 235-3318 OREGON KARN REPAIR SERVICE • 1800 N.W. 169TH PLACE, STE. D300 • BEAVERTON, OR 97006 • (503) 690-9500 PENNSYLVANIA HYDRAULIC IND. SUPPLY • HOLLY & MADISON AVE. BLDG #1 • CLIFTON HEIGHTS, PA 19018 • (610) 284-2100 HUMPHREY'S HYDRAULICS • 2214 HUCKLEBERRY RD. • ALLENTOWN, PA 18104 • (610) 435-9287 KTI63709 07/10/14...
- Page 21 TENNESSEE AUTHORIZED EQUIPMENT SERVICE • 812 POLK AVE. • MEMPHIS, TN 38126 • (901) 774-0850 LUBRICATION EQUIPMENT • 2501 MITCHELL ST. • KNOXVILLE, TN 37917 • (865) 525-8401 TEXAS AAA PNEUMATICS & SUPPLY • 907 EDEN ROC ST. • VICTORIA, TX 77904 • (361) 573-9920 STAR HYDRAULIC & TOOL SERVICE • 7012 LONG POINT • HOUSTON, TX 77055 • (713) 681-4105 VMW MAINTENANCE SOLUTIONS • 2328 BLANCO RD. • SAN ANTONIO, TX 78212 • (210) 736-4285 HYDRAULIC SERVICE & SUPPLY • 100 HOWELL ST. • DALLAS, TX 75207 • (214) 748-6015 WATCO EQUIPMENT SERVICES • 6005 MILWEE ST., STE. 706 • HOUSTON, TX 77092 • (713) 290-9033 UTAH GUSTIN HYDRAULIC • 151 W. 2125 SOUTH • SALT LAKE CITY, UT 84115 • (801) 487-0624 VIRGINIA JACK-MAN • 110 ANN ST. • MADISON HEIGHTS, VA 24572 • (434) 847-6963 HYDRAULIC SERVICE COMPANY • 3215 VICTORY BLVD. • PORTSMOUTH, VA 23702 • (757) 487-2513 SARVERS HYDRAULICS • 2550 JOHNSON AVE. • ROANOKE, VA 24017 • (540) 344-0799 WASHINGTON SPOKANE PUMP • 3626 E. TRENT AVE. • SPOKANE, WA 99202 • (509) 535-9771 UNIVERSAL REPAIR • 1611 BOYLSTON AVE. • SEATTLE, WA 98122 • (206) 322-2726 WEST VIRGINIA GILLETTE REPAIR SERVICE • ROUTE 8, BOX 128-A • FAIRMONT, WV 26554 • (304) 366-3119 WISCONSIN AFI DIRECT SERVICES • 7515 S. 10TH ST. • OAK CREEK, WI 53154 • (414) 764-1160 CANADA ALBERTA PRECISION HYDRAULICS • 940-48 AVE. SE • CALGARY, ALBERTA T2G 5B1 • (403) 243-5997 DAN’S POWER TOOL REPAIR • 8149 WAGNER RD. NE • EDMONTON, ALBERTA T6E 4N6 • (780) 490-1955 OR (780) 490-1956 BRITISH COLUMBIA RAMTORC TOOLS, INC. • 160-11960 HAMMERSMITH WAY • RICHMOND, BRITISH COLUMBIA V7A 5C9 • (604) 271-3220 MANITOBA ACCUTOOL SERVICE • 465 LUCAS AVE. • WINNEPEG, MANITOBA R3C 2E6 • (204) 772-6523 ONTARIO MONARCH REBUILDING, INC. • 97 BESSEMER RD. UNIT 5 • LONDON, ONTARIO N6E 1P9 • (519) 681-5640 QUEBEC INSTRUMENT SALES & SERVICE • 6059 DE MAISONNEUVE BLVD. • W. MONTREAL, QC H4A 3R8 • (514) 481-8111 MINI HYDRAULIQUE INC. • 2732 RUE DE LA FAUNE • QUEBEC, QC G3E 1H4 • (418) 843-6177 MR. TANGUAY & FILS • 1110 CROISSIANT CLAIRE • LACHINE, QUEBEC H8S 1A1 • (514) 933-8073 OR (514) 639-8825 KTI63709 07/10/14...
