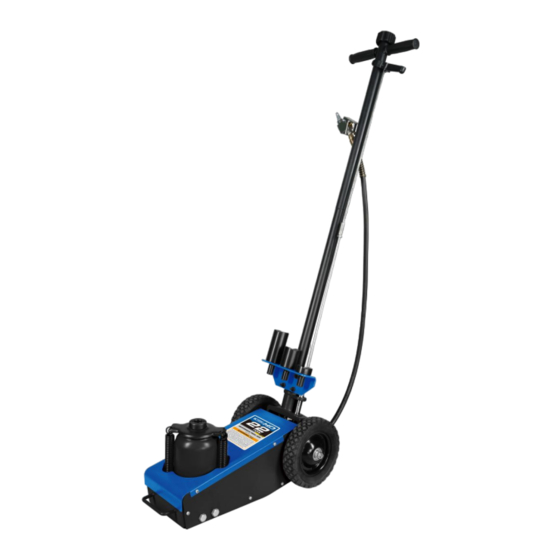

22 TONS CAPACITY AIR/HYDRAULIC TRUCK JACK
OWNERS MANUAL
Capacity ...............................................................................22 Tons
Low Height.............................................................................8 2/3"
Raised Height.......................................................................13 1/2"
Ram Travel ...........................................................................4 7/8"
KTI63197
SPECIFICATIONS
Complies with ASME PASE-2014 Safety Standard
Air Pressure ................................................................ 100-120 psi
Ext. Screw Adj...............................................................4"
Shipping Weight.............................................................77 Lbs.
01/17/2020
Advertisement
Table of Contents
Related Manuals for K Tool International KTI63197
Summary of Contents for K Tool International KTI63197
- Page 1 KTI63197 22 TONS CAPACITY AIR/HYDRAULIC TRUCK JACK OWNERS MANUAL SPECIFICATIONS Capacity ................22 Tons Air Pressure ..............100-120 psi Low Height................8 2/3" Ext. Screw Adj...............4" Raised Height...............13 1/2" Shipping Weight.............77 Lbs. Ram Travel ................4 7/8" Complies with ASME PASE-2014 Safety Standard...
- Page 2 SITUATIONS could cause accidents resulting in serious or fatal personal injury and/or property damage. WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. KTI63197 01/17/2020...
- Page 3 Inspect the relationship of the safety support stands (jack stands) with the ground and the safety support stand (jack stand) columns and saddles with the vehicle to prevent any unstable conditions. If conditions look unstable, rotate the air KTI63197 01/17/2020...
- Page 4 PROBLEM: UNIT WILL NOT LIFT TO FULL HEIGHT. ACTION: Purge air from hydraulic system as above or check oil level in reservoir. PROBLEM: UNIT STILL DOES NOT OPERATE. ACTION: Contact your place of purchase for details on handling warranty. KTI63197 01/17/2020...
- Page 5 INTERNATIONAL PROFESSIONAL LIFTING EQUIPMENT. ALL OTHER WARRANTIES, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. KTI63197 01/17/2020...
- Page 6 KTI63197 22 TON CAPACITY AIR/HYDRAULIC TRUCK JACK EXPLODED DRAWING Complete Assembly PUMP ASSEMBLY KTI63197 01/17/2020...
- Page 7 KTI63197 22 TON CAPACITY AIR/HYDRAULIC TRUCK JACK KTI63197 01/17/2020...
- Page 8 KTI63197 22 TON CAPACITY AIR/HYDRAULIC TRUCK JACK PARTS LIST REF. # PART # DESCRIPTION Q'TY REF. # PART # DESCRIPTION Q'TY Screw Spring Bolt Extension Rod Right Side Plate Screw KTP6319704 Flat Washer KTP6319705 Wheel Lock Lever Bolt Handle Sleeve...
