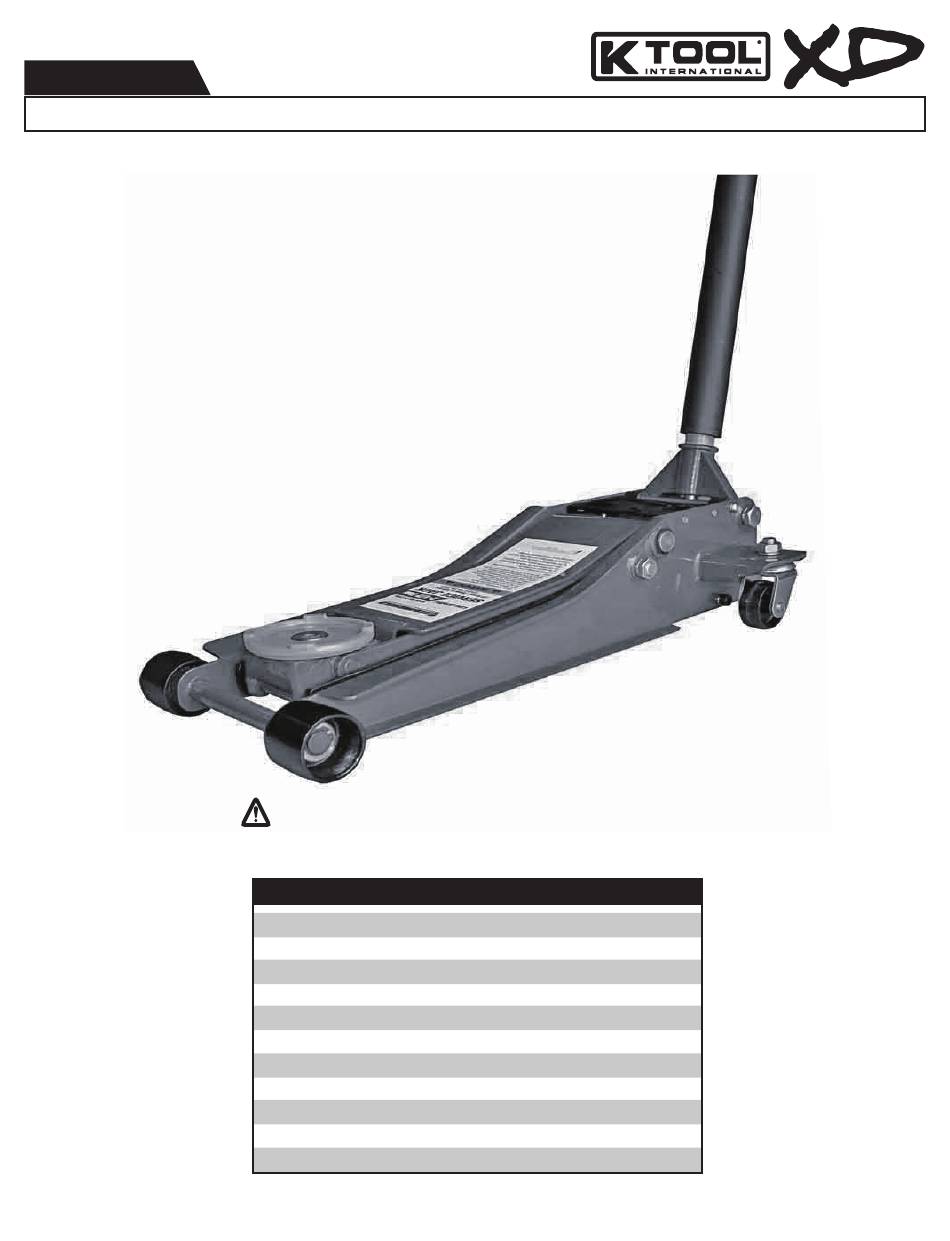

KTI-63101A

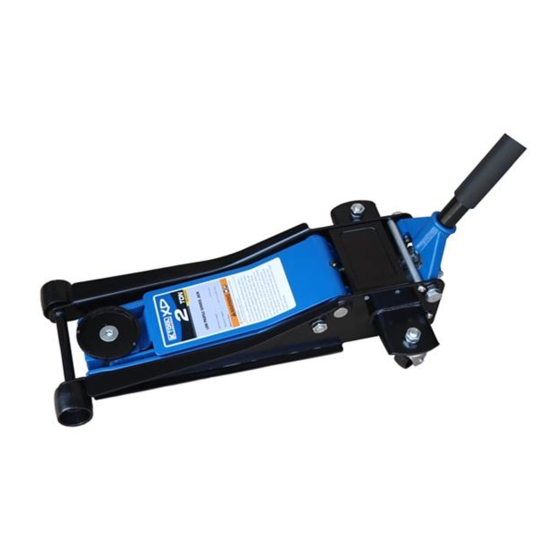

2 TON LOW PROFILE SERVICE JACK
OWNER'S MANUAL
KTI-
6
3
1
0
1
A
WARNING:
Cancer and Reproductive Harm-
www.P65Warnings.ca.gov
SPECIFICATIONS
Capacity ............................................................................... 2 Ton
Low Height .............................................................................. 3"
High Height ........................................................................ 19-15/16"
Chassis Length ......................................................................26-1/5"
Overall Width .........................................................................13-4/5"
Chassis Height ........................................................................5-2/5"
Handle Length ......................................................................... 45"
Saddle Diameter ......................................................................4-1/4"
Caster Diameter .................................................................... 2-2/5"
Front Wheel .................................................................... ........2-2/5"
Net Weight ......................................................................... 69.2 lbs.
Complies with ASME PASE/2014 Safety Standard
Advertisement
Related Manuals for K Tool International KTI-63101A
Summary of Contents for K Tool International KTI-63101A
- Page 1 KTI-63101A 2 TON LOW PROFILE SERVICE JACK OWNER'S MANUAL WARNING: Cancer and Reproductive Harm- www.P65Warnings.ca.gov SPECIFICATIONS Capacity ................2 Ton Low Height ................3" High Height ................ 19-15/16" Chassis Length ..............26-1/5" Overall Width .................13-4/5" Chassis Height ................5-2/5" Handle Length ................. 45"...
- Page 2 Failure to read this manual completely and thoroughly, failure to understand its OPERATING INSTRUCTIONS, SAFETY WARNINGS, MAINTENANCE INSTRUCTIONS and comply with them, and failure to comply with the METHODS TO AVOID HAZARDOUS SITUATIONS could cause accidents resulting in serious or fatal personal injury and/or property damage. KTI-63101A...
- Page 3 Proceed to pump the jack 15 full incremental pump strokes. Rotate the pump handle clockwise until it stops and proceed to pump the handle until the lift arm reaches maximum height. Repeat steps "A" through "C" until all air is purged from the system. KTI-63101A...
- Page 4 ACTION: Purge air from hydraulic system as above. PROBLEM: UNIT WILL NOT LIFT TO FULL HEIGHT. ACTION: Purge air from hydraulic system as above or check oil level in reservoir. PROBLEM: HANDLE TENDS TO RAISE UP WHILE THE UNIT IS UNDER RATED LOAD. ACTION: Pump the handle rapidly several times to push oil past ball valves in power unit. KTI-63101A...
-
Page 5: Regular Maintenance
(Use white lithium spray grease only.) #3 Remove handle; lubricate handle receptacle and handle end. (Use white lithium spray grease only.) #4 Lubricate both rear casters bearings and both front wheels. (Use white lithium spray grease only.) Tighten all accessible hardware. KTI-63101A... - Page 6 K-Tool International’s option, without charge. This warranty does not apply to damage from accident, overload, misuse or abuse, nor does it apply to any equipment which has been altered or used with special attachments other than those recommended. Michigan KTI-63101A...
- Page 7 KTI-63101A 2 TON LOW PROFILE SERVICE JACK EXPLODED DRAWING KTI-63101A...
- Page 8 KTI-63101A 2 TON LOW PROFILE SERVICE JACK PARTS LIST REF. # PART # DESCRIPTION REF. # PART # DESCRIPTION C ring Washer Washer KTP63101A03 Front Wheel Left Side Plate Bolt C ring KTP63101A25 Rear Wheel Unit KTP63101A06 Rod Link Washer...
