NOMENCLATURE AND FUNCTIONS

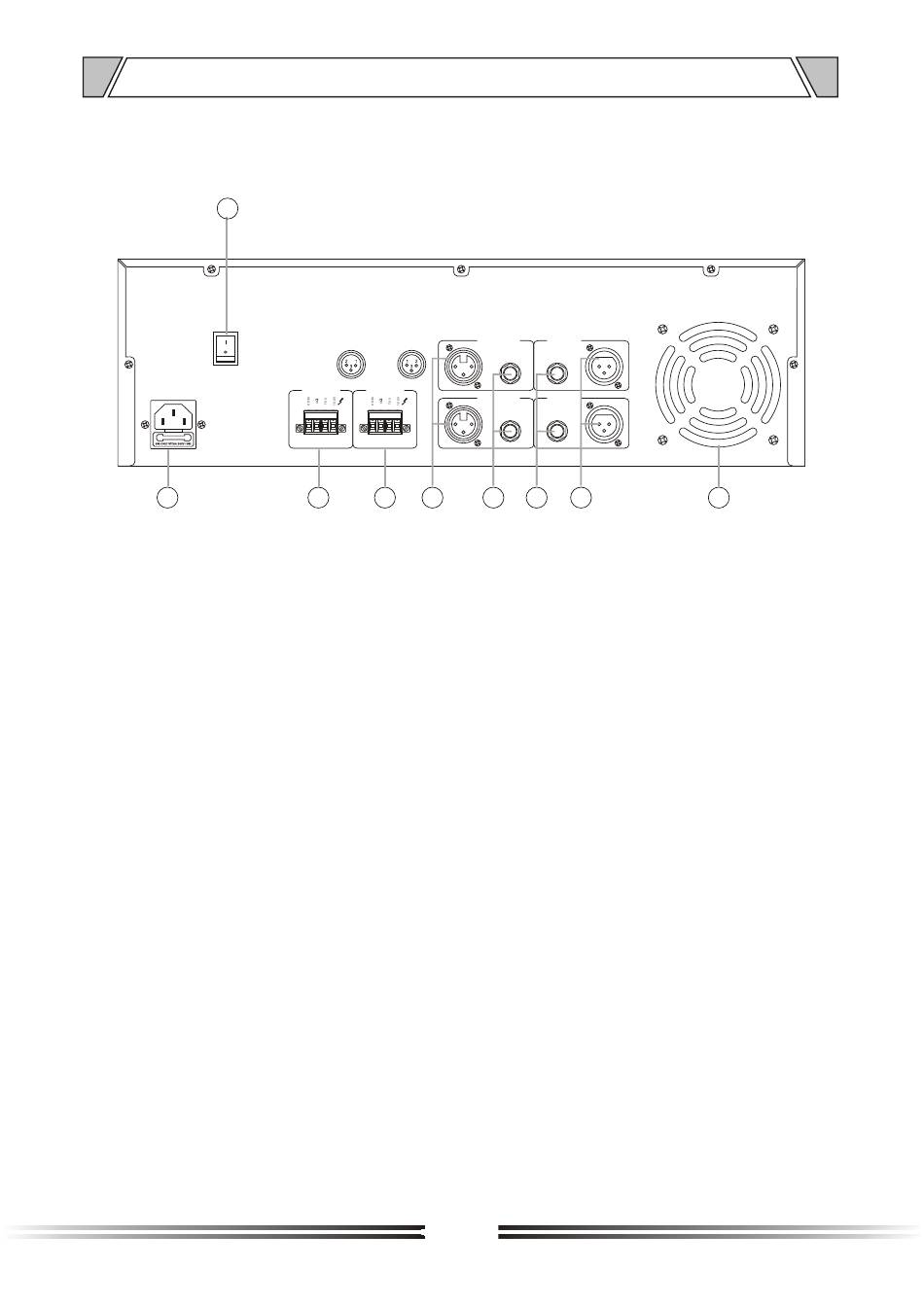

4.4 REAR PANEL(3U)

16
GND
LIFT
8
8. ~220-240V 50/60Hz POWER INPUT
9. OUTPUTS2
Connectors for 4 ohms or 70V and 100V
speaker
10. OUTPUTS1
Connectors for 4 ohms or 70V and 100V
speaker
11. LINE INPUT (XLR)
Music signal input balance
12. LINE INPUT (6.35TRS)
Balanced or unbalanced input music signal (unbalanced input, use of non-equilibrium
6.35TRS jack)
13. LINK OUTPUT (6.35TRS)
Balanced or unbalanced output music signal (unbalanced output, use of non-equilibrium
6.35TRS jack)
14. LINE CASCADE OUTPUT (CORLEONE SOCKET)
XLR, output signal of power amplifier
15. COOLING FANS
GROUND LIFTER
16.
Earth line ground or lift switch. Enable the switch to "GND" position when one unit is used,
disable the switch "LIFT" when several units are used to avoid noise caused by several earth
line grounded.
INPUTS LINK
XLR BAL
1-GND
2 1
2-HOT+
3
3-COLD-
OUTPUTS 2 OUTPUTS 1
¦¸ ¦¸ ¦¸ ¦¸
2 2 1 1
3 3
9 10 11
9
CH 2 INPUTS CH 2 LINK
CH 1 INPUTS CH 1 LINK
12 13 14 15
