NOMENCLATURE AND FUNCTIONS

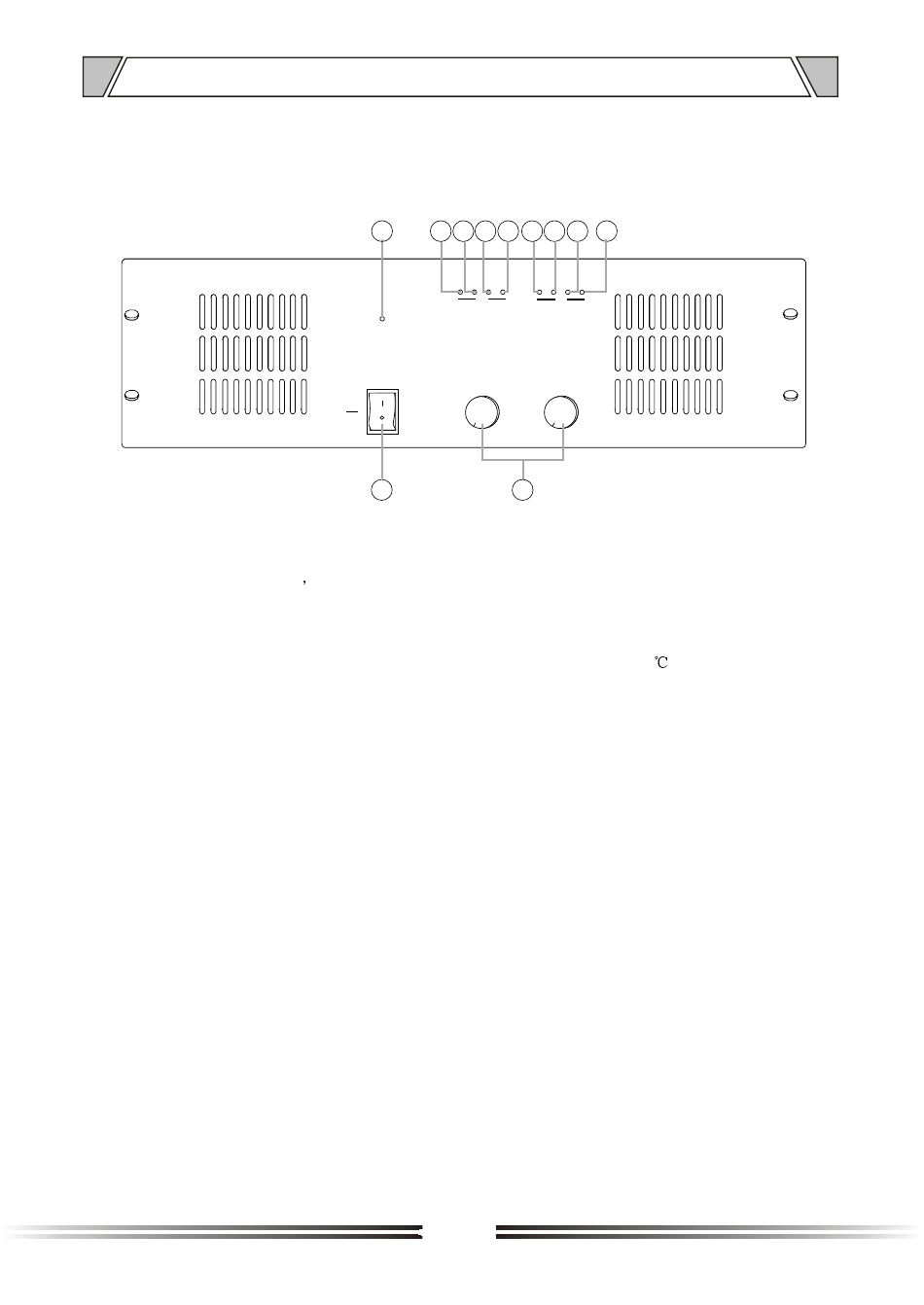

4.3 FRONT PANEL(3U)

1. POWER SWITCH
On top of the opening Power
2. CH1\CH2 VOLUME
Channel volume control
3. TEMP (CH1\CH2)
The protection indicator will be light on when the inside temperature is over 90
cut to protect the amplifier from damage. It will resume to work after cooling down
4. PROT (CH1\CH2)
The protection indicator will be light on when the constant output is 160% higher than the rated
output, the output will be cut to protection the amplifier from damage. This indicator will be exting-
uished when amplifier is under normal working conditions.
5. CLIP (CH1\CH2)
Clip lit when max wattage output & output signal distortion.
6. SIGNAL (CH1\CH2)
Signal indicator LED When lit input signal is detected.
7. POWER
Power indicator LED
7 6 5
4
SIGNAL CLIP PROT TEMP
CH1
POWER
CH 1
VOLUME
5
4
3
ON
2
OFF
1
0
1
Press the end, power shut down
8
3 6 5 3
4
SIGNAL CLIP PROT TEMP
CH2
CH 2
VOLUME
5
6 4 6
7 3 7
8 2 8
9 1 9
10 0 10
2
, the output will be
