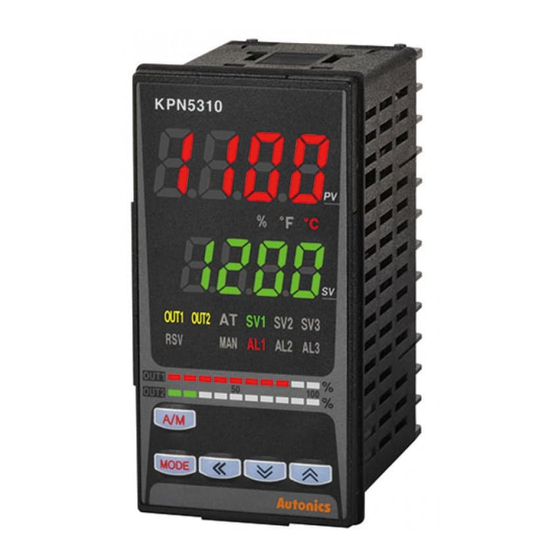

User Manual
for Communication
Temperature Controllers
KPN Series
ACM-E-0301-AB
Thank you for purchasing an Autonics product.
This user manual contains information about the product and its proper use,
and should be kept in a place where it will be easy to access.
www.autonics.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KPN Series and is the answer not in the manual?

Questions and answers

Related Manuals for Autonics KPN Series

Summary of Contents for Autonics KPN Series

  • Page 1 Communication Temperature Controllers KPN Series ACM-E-0301-AB Thank you for purchasing an Autonics product. This user manual contains information about the product and its proper use, and should be kept in a place where it will be easy to access. www.autonics.com...
  • Page 2 Preface © Copyright Reserved Autonics Co., Ltd.

  • Page 3: Preface

    Preface Preface Thank you for purchasing Autonics product. Please familiarize yourself with the information contained in the Safety Precautions section before using this product. This user manual contains information about the product and its proper use, and should be kept in a place where it will be easy to access.

  • Page 4: User Manual Guide

    The manual's content may vary depending on changes to the product's software and  other unforeseen developments within Autonics, and is subject to change without prior notice. Upgrade notice is provided through out homepage. We contrived to describe this manual more easily and correctly. However, if there are ...

  • Page 5: Communication Protocol

    Communication protocol Communication protocol KPN Series is supported to Modbus RTU protocol. However, it does not support broadcast commands. © Copyright Reserved Autonics Co., Ltd.
  • Page 6 Communication protocol © Copyright Reserved Autonics Co., Ltd.

  • Page 7: Table Of Contents

    Parameter 2 group[Func: 03/06/16, RW: R/W] .......... 21 2.4.4 Parameter 3 group[Func: 03/06/16, RW: R/W] .......... 22 2.4.5 Parameter 4 group[Func: 03/06/16, RW: R/W] .......... 23 2.4.6 Parameter 5 group[Func: 03/06/16, RW: R/W] .......... 24 © Copyright Reserved Autonics Co., Ltd.
  • Page 8 Table of Contents © Copyright Reserved Autonics Co., Ltd.

  • Page 9: Modbus Rtu Protocol

    000009(0008 H) are respectively “OFF-ON”. Response(Slave)  Data Data Error Check(CRC16) Slave Address Function Byte Count (000008 to (000010 to High 000001) 000009) 11 H 01 H 02 H CD H 01 H ## H ## H © Copyright Reserved Autonics Co., Ltd.

  • Page 10: Read Input Status(Func02-02H)

    “OFF-ON”. Response(Slave)  Data Data Error Check(CRC16) Slave Address Function Byte Count (000008 to (000010 to High 000001) 000009) 11 H 02 H 02 H CD H 01 H ## H ## H © Copyright Reserved Autonics Co., Ltd.

  • Page 11: Read Holding Registers(Func03-03H)

    400002(0001 H) is “100 (64 H)”. Response(Slave)  Data Data Error Check(CRC16) Slave Address Function Byte Count High High High 11 H 03 H 04 H 02 H 2B H 00 H 64 H ## H ## H © Copyright Reserved Autonics Co., Ltd.

  • Page 12: Read Input Registers(Func04-04H)

    “20(14 H)” on Slave side are respectively. Response(Slave)  Data Data Error Check(CRC16) Slave Address Function Byte Count High High High 11 H 04 H 04 H 00 H 0A H 00 H 14 H ## H ## H © Copyright Reserved Autonics Co., Ltd.

  • Page 13: Preset Single Registers(Func06-06H)

    ## H ## H Response(Slave)  Starting Address Preset Data Error Check(CRC16) Slave Address Function High High High 11 H 06 H 00 H 00 H 00 H 0A H ## H ## H © Copyright Reserved Autonics Co., Ltd.

  • Page 14: Preset Multiple Registers(Func16-10H)

    PLC, Graphic Panel, except in the case of download that presets the minimum/maximum or basic value of parameter by Input specifications in PC Loader Program. © Copyright Reserved Autonics Co., Ltd.

  • Page 15: Exception Response-Error Code

    03 H E8 H 00 H 01 H ## H ## H Response (Slave)  Error Check(CRC16) Slave Address Function+80 H Exception Code High 11 H 81 H 02 H ## H ## H © Copyright Reserved Autonics Co., Ltd.
  • Page 16 1 Modbus RTU protocol © Copyright Reserved Autonics Co., Ltd.

  • Page 17: Modbus Mapping Table

    MAN lamp Manual control display lamp 0: OFF 1: ON 100014(000D) DI-1 input DI-1 input status 0: OFF 1: ON 100015(000E) DI-2 input DI-2 input status 0: OFF 1: ON 100016 to Reserved 100050 © Copyright Reserved Autonics Co., Ltd.

  • Page 18: Read Input Registers(Func04)

    ℃ lamp Unit display lamp 0: OFF 1: ON Bit 0 301007(03EE) ℉ lamp Unit display lamp 0: OFF 1: ON Bit 1 % lamp Unit display lamp 0: OFF 1: ON Bit 2 © Copyright Reserved Autonics Co., Ltd.
  • Page 19 OUT2 lamp OUT1 lamp % lamp ℉ lamp ℃ lamp 0 or 1 0 or 1 0 or 1 0 or 1 0 or 1 0 or 1 0 or 1 0 or 1 1 Byte © Copyright Reserved Autonics Co., Ltd.

  • Page 20: Read Holding Register(Func03) / Write Single Register(Func06) / Write Multiple Registers(Func16)

    SV-1 set value within L-SV to H-SV SV-1 ℃/℉/- 0000 SV-2 SV-2 set value within L-SV to H-SV 0000 ℃/℉/- 400063(003E) SV-3 SV-3 set value within L-SV to H-SV ℃/℉/- 0000 400064 to Reserved 400100 © Copyright Reserved Autonics Co., Ltd.

  • Page 21: Parameter 2 Group[Func: 03/06/16, Rw: R/W]

    0 to 999: 000 to 999(temperature H, analog) 400117(0074) RAMD Lamp Down-change rate Digit 0000 0 to 9999: 00)0 to 99(9(temperature L) 400118(0075) Lamp time unit 0 : SEC 1 : MIN 2 : HOUR rUNT Reserved © Copyright Reserved Autonics Co., Ltd.

  • Page 22: Parameter 3 Group[Func: 03/06/16, Rw: R/W]

    0: 4-20 1: 0-20 O@MA 4-20 range 400170(00A8) Heating, control time 1 to 1200: 00)1 to 12)0 sec. 02)0 400171(00AA) Cooling, control time 1 to 1200: 00)1 to 12)0 sec. 02)0 400172 to Reserved 400200 © Copyright Reserved Autonics Co., Ltd.

  • Page 23: Parameter 4 Group[Func: 03/06/16, Rw: R/W]

    400226(00E1) Communication speed 0: 24 1: 48 2: 96 3: 192 4: 384 X100bps 400227(00E2) Communication parity bit 0: NONE 1: EVEN 2: ODD PRTY NONE 400228(00E3) Communication stop bit 0: 1 1: 2 © Copyright Reserved Autonics Co., Ltd.

  • Page 24: Parameter 5 Group[Func: 03/06/16, Rw: R/W]

    0: OFF 1: ON 400271(010E) LcP4 Parameter 5 group lock 0: OFF 1: ON 0000: OFF 0002 to 9999: Password set range 400272(010F) Password LcP5 (※ 0001: password for reading) 400273 to 400300 Reserved © Copyright Reserved Autonics Co., Ltd.
  • Page 25 2 Modbus Mapping Table © Copyright Reserved Autonics Co., Ltd.
  • Page 26 * Dimensions or specifications on this manual are subject to change and some models may be discontinued without notice.
