©2020
WARNING
Improper installation, adjustment, alteration, ser­
vice or maintenance can cause property damage,
personal injury or loss of life. Installation and ser­
vice must be performed by a licensed professional
HVAC installer or equivalent, service agency, or the
gas supplier
CAUTION
As with any mechanical equipment, contact with
sharp sheet metal edges can result in personal in­
jury. Take care while handling this equipment and
wear gloves and protective clothing.

Table Of Contents

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Page 2
Page 4
Page 5
Page 5
Page 5
Page 6
Page 7
Page 7
Page 7
Page 9
Page 10
Page 11
Page 11
. . . . . . . . . . . .
Page 14
INSTALLATION
INSTRUCTIONS

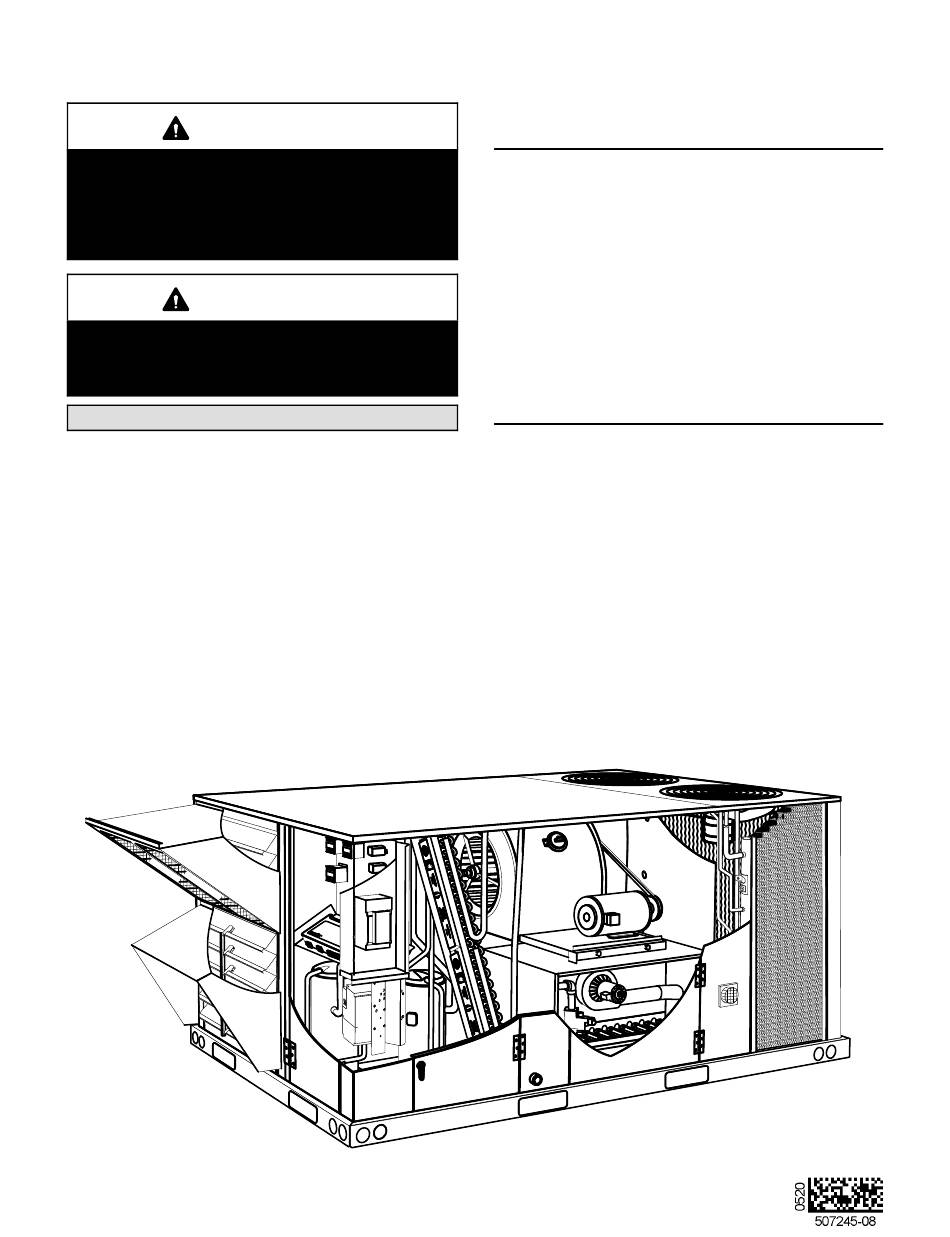

LGH092H, LCH092H
LGH094U, LCH094U
LGH102H, LCH102H
LGH120H, LCH120H
LGH122U, LCH122U
LGH150H, LCH150H
LGH152U, LCH152U
PACKAGED UNITS
507245-08
5/2020
Supersedes 4/2020
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
(7.5 Ton)
(7.5 Ton)
(8.5 Ton)
(10 Ton)
(10 Ton)
(12.5 Ton
(12.5 Ton
Page 22
Page 32
. . . . . . . . . . . .
Page 33
Page 33
. . . . . . . . . . . . . . . . . . .
Page 34
. . .
Page 36
Page 36
. . . . . . . .
Page 38
Page 39
. . . . . . . . . . . . .
Page 42
LGH SHOWN
