Summary of Contents for Mountz FLEXPOWER FLEXC-3PX

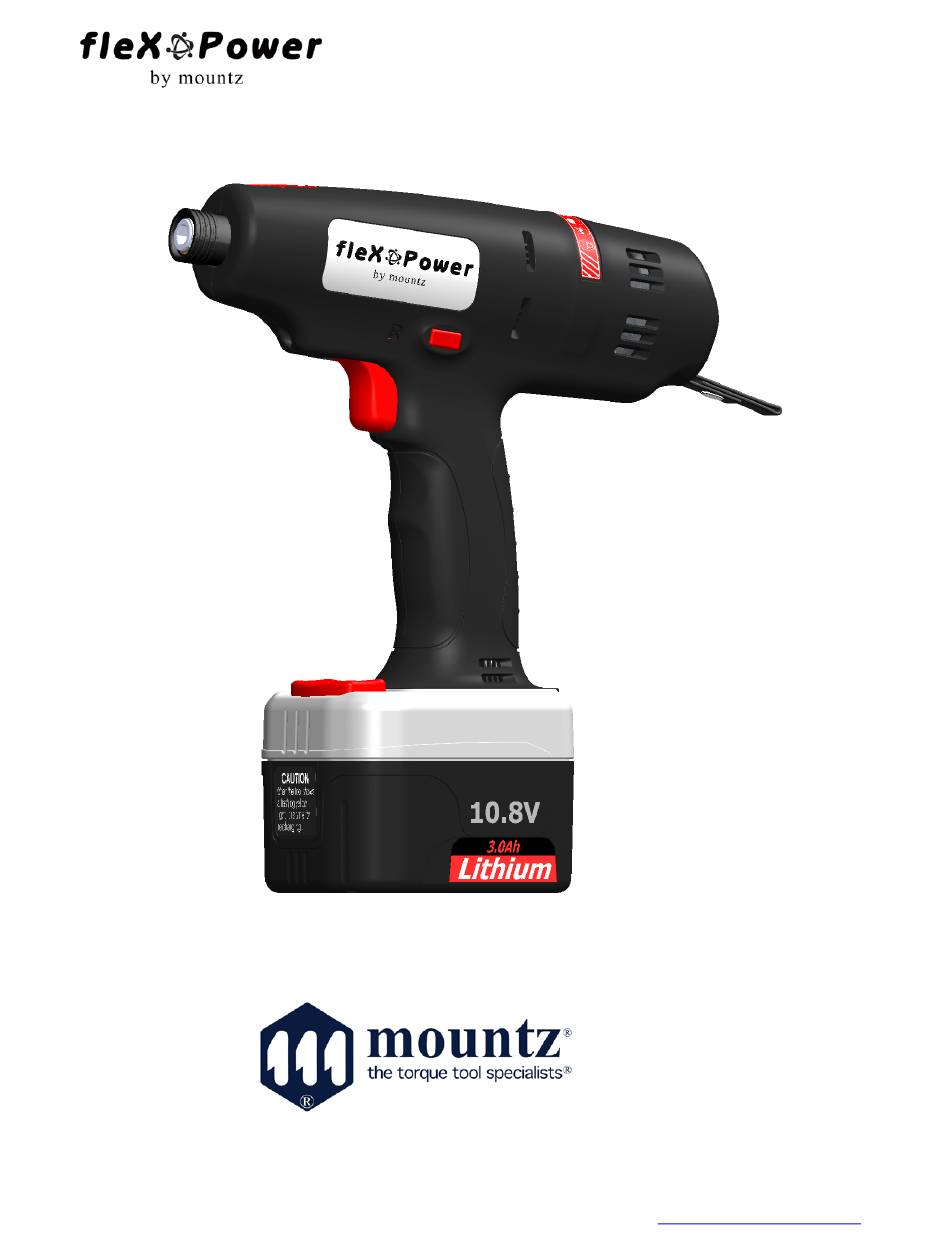

- Page 1 MODEL No: FLEXC-3PX FLEXC-8PX FLEXC-11PX FLEXC-12PX 10.8V Cordless Shut-off Screwdriver INSTRUCTION MANUAL www.mountztorque.com...
- Page 2 MODEL No: FLEXC-3PX FLEXC-8PX FLEXC-11PX FLEXC-12PX 10.8V Cordless Shut-off Screwdriver INSTRUCTION MANUAL a) Torque adjustment cover b) 1/4" F/Hex with quick change chuck c) LED indicator provides simple process information to the operator d) LED light for working in dark area e) Press button for easy Forward/Reverse operation f) Ergonomic handle design provides a well-balance g) Easy attached sliding battery system...
-
Page 3: General Safety Rules
MODEL No: FLEXC-3PX FLEXC-8PX FLEXC-11PX FLEXC-12PX 10.8V Cordless Shut-off Screwdriver INSTRUCTION MANUAL WARNING! ”READ ALL INSTRUCTIONS” Always observe the safety regulations applicable in your country to reduce the risk of fire, electric shock and personal injury. Understand the following safety instructions before attempting to operate this product. Always wear eye protection when working with power tools. - Page 4 MODEL No: FLEXC-3PX FLEXC-8PX FLEXC-11PX FLEXC-12PX 10.8V Cordless Shut-off Screwdriver INSTRUCTION MANUAL Additional Safety Rules for Shut Off Screwdriver Battery Charger Battery Pack ▪ Caution: To reduce risk of injury, charge only ▪ Do not charge battery pack when temperature the authorized batteries.
-
Page 5: Functional Description
MODEL No: FLEXC-3PX FLEXC-8PX FLEXC-11PX FLEXC-12PX 10.8V Cordless Shut-off Screwdriver INSTRUCTION MANUAL FUNCTIONAL DESCRIPTION This industrial shut off screwdriver is designed for nut tightening/loosening and screw driving/loosening. It is not appropriate to use for wood/mild steel drilling. Please refer to the figure on the page to familiarize yourself with the major components of this tool before use. - Page 6 MODEL No: FLEXC-3PX FLEXC-8PX FLEXC-11PX FLEXC-12PX 10.8V Cordless Shut-off Screwdriver INSTRUCTION MANUAL ASSEMBLY Check for damage to the tool; parts or accessories that may have occurred during shipping . Take the time to thoroughly read and understand this manual prior to operation. This tool contains: - 1 10.8V cordless shut off Screwdriver - 1 instruction manual...
- Page 7 MODEL No: FLEXC-3PX FLEXC-8PX FLEXC-11PX FLEXC-12PX 10.8V Cordless Shut-off Screwdriver INSTRUCTION MANUAL OPERATIONS This product had been carefully inspected prior to leaving the factory. It should provide you with years of satisfying service under normal operating conditions. Do not, however, force the tool to perform outside its designed parameters.
- Page 8 MODEL No: FLEXC-3PX FLEXC-8PX FLEXC-11PX FLEXC-12PX 10.8V Cordless Shut-off Screwdriver INSTRUCTION MANUAL A green light shows the operator that the preset torque is reached and the tightening is OK. A red light and one long "beep" sound signals the operator that the preset torque is not reached.
- Page 9 MODEL No: FLEXC-3PX FLEXC-8PX FLEXC-11PX FLEXC-12PX 10.8V Cordless Shut-off Screwdriver INSTRUCTION MANUAL Charging the battery - for Li-ion battery [NOTE] ▪ When charging a cool battery pack (below 0°C(32°F) in a warm place, leave the battery pack at the place and wait for more than one hour to warm up the battery to the level of the ambient temperature.
- Page 10 MODEL No: FLEXC-3PX FLEXC-8PX FLEXC-11PX FLEXC-12PX 10.8V Cordless Shut-off Screwdriver INSTRUCTION MANUAL CHARGER LAMP INDICATIONS Red Light Charger is plugged into the AC outlet. Ready to charge � Yellow Flashing 1) When the temperature of the battery is too low (<0°C / <32°F), it is in a trickle charge mode until the temperature of the battery is over (0°C / <32°F).
-
Page 11: Specifications
MODEL No: FLEXC-3PX FLEXC-8PX FLEXC-11PX FLEXC-12PX 10.8V Cordless Shut-off Screwdriver INSTRUCTION MANUAL Green Flashing Battery is approximately 80% charged. Green stop flashing Battery is competed charged SPECIFICATIONS Item FLEXC-3PX FLEXC -8PX FLEXC-11PX FLEXC -12PX Voltage 10.8 VDC 10.8 VDC 10.8 VDC 10.8 VDC Drive Size 1/4"... - Page 12 MODEL No: FLEXC-3PX FLEXC-8PX FLEXC-11PX FLEXC-12PX 10.8V Cordless Shut-off Screwdriver INSTRUCTION MANUAL CLUTCH UNITS For Models: FLEXC-8PX (Index No. 15~30) FLEXC-11PX (Index No. 14~29) FLEXC-12PX (Index No. 16~31) Steel Ball Adjustment Nut Index No Description Index No Description Clutch Snap Ring Steel Ball Ball Bearing Shaft...
- Page 13 MODEL No: FLEXC-3PX FLEXC-8PX FLEXC-11PX FLEXC-12PX 10.8V Cordless Shut-off Screwdriver INSTRUCTION MANUAL For Model: FLEXC-3PX (Index No. 14~29) Steel Ball Adjustment Nut Index No Description Index No Description Clutch Snap Ring Steel Ball Ball Bearing Shaft Snap Ring Steel Ball Quick Change Holder Washer Spring...
- Page 14 MODEL No: FLEXC-3PX FLEXC-8PX FLEXC-11PX FLEXC-12PX 10.8V Cordless Shut-off Screwdriver INSTRUCTION MANUAL GEAR BOX UNITS FLEXC-3PX (Index No. 7~12) FLEXC-11PX (Index No. 7~12) Snap Ring Gear Plant Assembly Index No Description Index No Description Washer f(1) O-ring Plant Gear f(2) Gear Box Gear Cage Assembly f(3)
- Page 15 MODEL No: FLEXC-3PX FLEXC-8PX FLEXC-11PX FLEXC-12PX 10.8V Cordless Shut-off Screwdriver INSTRUCTION MANUAL GEAR BOX UNITS FLEXC-12PX (Index No. 7~14) Washer Gear Plate Assembly Index No Description Index No Description Plant Gear Snap Ring Gear Cage Assembly h (1) O-Ring Plant Gear h (2) Gear Box Gear Cage Assembly...
- Page 16 MODEL No: FLEXC-3PX FLEXC-8PX FLEXC-11PX FLEXC-12PX 10.8V Cordless Shut-off Screwdriver INSTRUCTION MANUAL HOUSING & MOTOR For Models: FLEXC-3PX (Index No. 1~6, 30~41) FLEXC-8PX (Index No. 1~6, 31~42) FLEXC-11PX (Index No. 1~6, 30~41) FLEXC-12PX (Index No. 1~6, 32~43) Washer Screw Index No Description Index No Description...
-
Page 17: Service Centers
Distribution & Service Center 19051 Underwood Road Foley, AL 36535 Phone: (251) 943-4125 Fax: (251) 943-4979 Mexico Mountz Mexico SA de CV Ave. Cristobal Colon #15343 Col. Paseos de Chihuahua Chihuahua, Chih. Mexico CP 31125 Phone: (614) 481-0023 Fax: (614) 481-0053...
