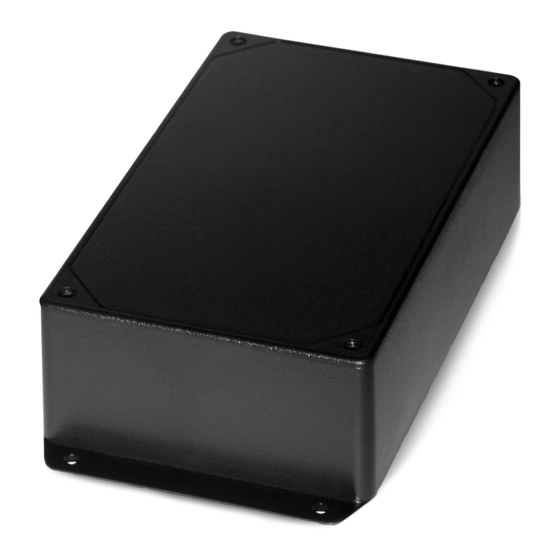

RT2630 SERIES
Installation & Operation Instructions
CAUTION
!
DO NOT USE THIS PRODUCT IN ANY SAFETY RELATED APPLICATIONS WHERE HUMAN
LIFE MAY BE AFFECTED.
GENERAL INFORMATION
The RT2630 wireless remote Analog/Digital Sensor Input Concentrator accepts analog and digital sensor/control
inputs and transmits wirelessly to the receiver.
ACI's mesh network wireless Analog and Digital Sensor Input Concentrators utilize reliable Spread Spectrum Radio
technology. They can be installed easily in minutes, eliminating hundreds of feet of wire and saving installation cost
while reducing installation labor risks.
The sensor Data-Link LED con rms the data transmission was received by the receiver for fast and reliable
positioning of the sensor during installation. There is no need for special wireless installation equipment or tool.
Together with the ACI receivers and controllers, the ACI wireless sensors can be used with any LON works, BACnet,
Modbus, or DDC control system or panel.
The maximum radio transmission distance is dependent on the building type. In a typical commercial
building with steel I-Beam construction, concrete oors with reinforcing rod, and metal stud walls, it can be
expected that transmissions will penetrate vertically typically one oor below and one oor above a
transceiver/receiver, and horizontally through 200 to 300 feet of walls, furniture and air.
Installation
Wireless sensors should be installed within 200 to 300 feet of the receiver. RR2552 signal repeaters can
be installed as to increase transmission distance between sensors and receivers.
PRECAUTIONS
SENSORS, REPEATERS AND RECEIVERS SHOULD NOT BE INSTALLED IN THE FOLLOWING AREAS:
• INSIDE METAL ENCLOSURE / PANEL
• INSIDE OR IMMEDIATELY NEXT TO ELEVATOR SHAFT / ELEVATOR BANKS
• IN FRONT OF OR IMMEDIATELY NEXT TO LARGE TREES OR LARGE BODY OF WATER
TRANSMISSION DISTANCE AND PERFORMANCE WILL BE DRASTICALLY REDUCED
!
CAUTION
Observe battery polarity when installing battery.
MOUNTING INSTRUCTIONS
Take the RT2620 to the area it is to be installed. Insert the battery, observing polarity. Move the Jumper to
"BATT".
While the sensor is attempting to connect to the receiver the Link LED will blink rapidly 8–10 times every
10 seconds. Once a connection has been established the Link LED will blink once to indicate the data
Automation Components, Inc.
2305 Pleasant View Road | Middleton, WI 53562
Phone: 1-888-967-5224 | Website: workaci.com
Page 1
Phone: 1-888-967-5224
Website: workaci.com
Version: 6.0
I0000694
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for aci RT2630 Series
Summary of Contents for aci RT2630 Series
- Page 1 There is no need for special wireless installation equipment or tool. Together with the ACI receivers and controllers, the ACI wireless sensors can be used with any LON works, BACnet, Modbus, or DDC control system or panel.
- Page 2 transmission has been received successfully. The Link LED will continue to blink once for every data transmission. The data transmission rate is programmed into the sensor (normally 1 minute intervals). To manually initiate a data transmission, press the push button switch located by the negative terminal of the battery.
- Page 3 FIGURE 1: DIMENSIONS STANDARD TOP VIEW 6.75" (171.5mm) Input Voltage Ø0.190 (4 PLCS.) Selection Jumper Battery Positive Terminal 3.5" (88.9mm) 4.72" (119.89mm) 7.285" (185mm) 6.12" SIDE VIEW (155.5mm) 2.367" (60.12mm) TOP VIEW NEMA 4X 6.73" (171mm) Ø0.18" Mounting Holes 3.58" 4.76"...
- Page 4 Note : Transmission Interval for battery powered is not to be less than 75 seconds WARRANTY The RT2630 Series are covered by ACI’s Two (2) Year Limited Warranty, which is located in the front of ACI’S SENSORS & TRANSMITTERS CATALOG or can be found on ACI’s website: www.workaci.com.
