Prior To Installation

NoTe: All screws/rivets supporting awning assembly MUST have a backer within the structure of the wall of
the coach.

Tools Required

• Electric screw gun
• #2 square screwdriver bit
• 3/8" nut driver bit and/or rivet gun

Awning With LeD In Roll Tube Installation

1.

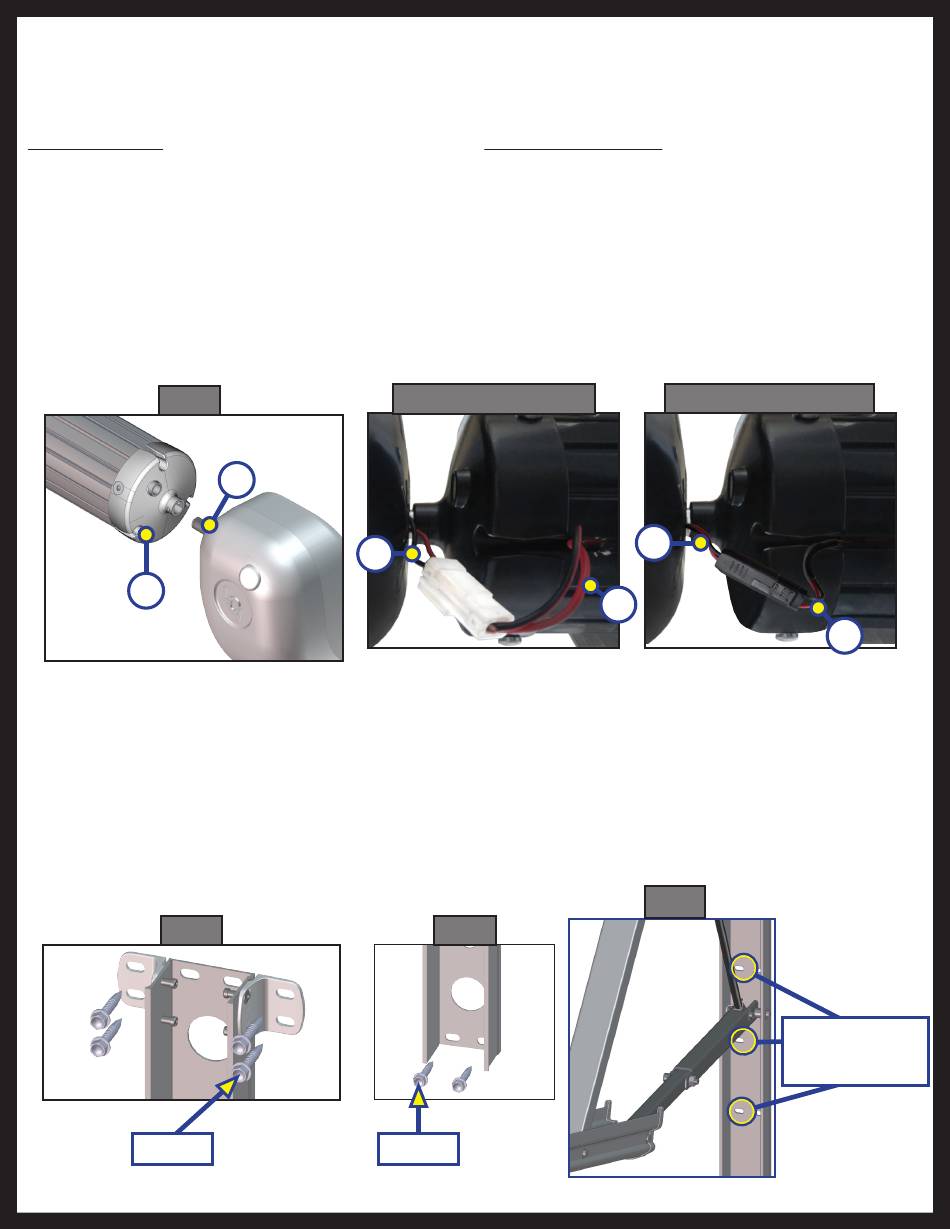

Insert drive head pin (Fig. 1A) into end cap (Fig. 1B). Align holes and secure with waxed screw. Insert
screw fully, but do not over-tighten. Repeat process for idler head at other end.
NoTe: Be sure to align LED light wires (Fig. 2A or 3A) coming from idler head with the LED light on roll tube
(Fig. 2B or 3B).
Fig. 1
B
2.
Connect the plug from the idler head (Fig. 2A or 3A) to the plug from the LED light (Fig. 2B or 3B) on
the roll tube.
3.
Station a person at each end of the awning assembly to hold the support arms. A third person will line
up the fabric cord with the previously-installed awning rail. Slide the fabric cord to desired position.
4.
Set the awning assembly to the desired height and attach it to the side of the coach with four #14 x 1
1/2" screws (286576) at the top (Fig. 4) and two #14 x 1 1/2" (286576) screws at the bottom (Fig. 5).
5. Extend the awning half way out by connecting the power and ground wires of the awning to a 12-18V
battery.
6.
Secure the middle of the wall mounting channel with two #14 x 1 1/2" screws (286576) at any of the
three locations shown (Fig. 6).
Fig. 4
286576
Rev: 02.25.2016
Fig. 2 - old Connection
A
A
286576

Resources Required

• Three people
B
Fig. 5
Page 2
Fig. 3 - New Connection
A
Fig. 6
Possible screw
/ rivet locations
Solera Power Awning with LED Lights Installation Manual
B
