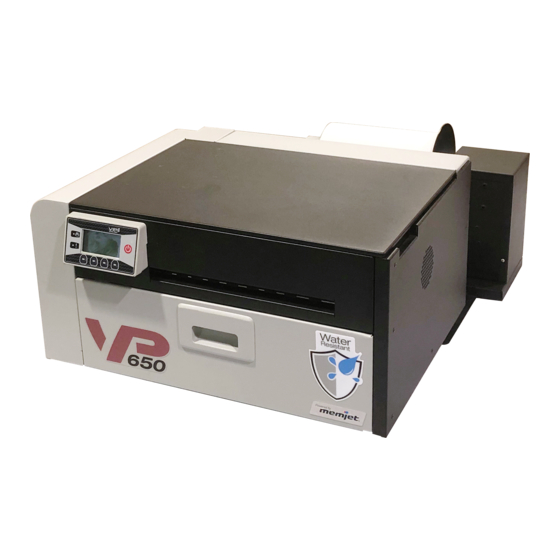

Memjet VIP Color VP5 Series User Manual
  1. Manuals
  2. Brands
  3. Memjet Manuals
  4. Printer
  5. VIP Color VP5 Series
  6. User manual

Memjet VIP Color VP5 Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VIPColor
VP5xx and VP6xx
Printer Series
U s e r G u i d e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIP Color VP5 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Memjet VIP Color VP5 Series

Summary of Contents for Memjet VIP Color VP5 Series

  • Page 1 VIPColor VP5xx and VP6xx Printer Series U s e r G u i d e...
  • Page 2 Java and Oracle are registered trademarks of Oracle and/or its affiliates. Microsoft, Windows, and Windows Server are registered trademarks of Microsoft Corporation in the U.S.A. and/or other countries. Memjet is a trademark of Memjet Ltd. Edition Edition 4, May 2021 This device complies with Part 15 of the FCC rules.

  • Page 3: Safety Precautions

    Safety Precautions Electrical Shock Hazard Do not disassemble any part of your printer. There are no user-repairable parts inside the printer. Disassembly of any part of the printer will void all warranties. Fire Hazard Keep the printer well away from all heat sources and flammable substances. Switch your printer off immediately and unplug the power cord from the wall socket if you notice any of the following: •...
  • Page 4 • Use only authorized consumables. Use of any printhead other than authorized Memjet technology printheads will damage the printer and void your warranty. Use of unauthorized inks or ink cartridges may damage the printer and will void your warranty.

  • Page 5: Table Of Contents

    Contents Safety Precautions ............3 Using the Printer .
  • Page 6 Appendix ..........71 System Requirements.

  • Page 7: Using The Printer

    Using the Printer Chapter 1 Parts of the Printer Using the Control Panel Choosing Label Media Loading Label Media Loading Fanfold Media Printing Labels Printing Borderless (Full-Bleed) Labels Saving Custom Media Size Settings Turning Off the Printer Managing Printer Security (Administrator) Embedded Web Server (EWS) Other Support Tools NOTE: Once the printer has been set up, be sure to change the security passwords...

  • Page 8: Parts Of The Printer

    Parts of the Printer Top Cover Control Panel Output Slot Front Cover Media Feed Cover Media Feed Slot Power Switch Power Socket USB Port Ethernet Port GPIO Port Using the Printer...

  • Page 9: Using The Control Panel

    Using the Control Panel The printer is ready to print when the control panel displays Printer Online. The Data and Status LEDs together with messages indicate the printer status and any potential problems (Table The control panel also shows the estimated levels of the ink cartridges. In the example below, the yellow ink cartridge level is between 25 to 50%.
  • Page 10 The icons above the printer buttons indicate their functions (Table • When the printer is online, press (Config) to access the configuration menus. The options are described in Config Options on the Control Panel on page 75. • Press to scroll through the menus. •...

  • Page 11: Selecting The Security Level

    Selecting the Security Level By default, the printer powers up in security Level 0 (operator), which does not allow changes to some printer parameters. To make changes, select security Level 1 (supervisor) and enter the password provided by your administrator. Security Level 2 gives administrator access to all functions.

  • Page 12: Choosing Label Media

    Choosing Label Media Ensure that the label media meets the requirements for the printer (see Table 3 the following illustrations). Always test the media first to see if it meets your expectations. To check the compatibility of label media, print the barcodes test page. Table 3 Media specifications Media Type and Dimensions Media type...
  • Page 13 Figure 2 Gap (Transmissive) Media Minimum Maximum 0.125”(3.0 mm) 0.3” (8.0 mm) 2.0” (50.8 mm) 0.4” (10mm) 2.0” (50.8 mm) 8.5” (216.0 mm) 2.0” (50.8 mm) 40.0” (1016.0 mm) Figure 3 Black Mark (Reflective) Media Reverse side of tag stock Minimum Maximum 2.0”...
  • Page 14 Print Test Page Load 4” x 4” or larger labels. Be sure to select the label type (continuous, gap, or black mark) in the EWS Diagnostics page. 1. On the control panel, select (Config) MAINTENANCE PRINT TEST PAGE   ...

  • Page 15: Loading Label Media

    Loading Label Media Figure 4 Media path 1. Loosen the knob and remove the roll cover. 2. Load the media roll. Using the Printer...
  • Page 16 3. Push the roll cover against the media roll. Make sure the slot in the roll cover is over the flat side of the spindle. Then tighten the knob. Slot Flat side 4. Feed the media into the printer: a Open the media feed cover. b Feed the media under the arm and into the printer.

  • Page 17: Loading Fanfold Media

    Loading Fanfold Media Figure 5 Fanfold media path 15 mm 1. When loading fanfold media, place the media stack 15 mm or more away from the rear of the printer. 2. Feed the media into the printer, aligning it with the left side of the media feed slot.

  • Page 18: Printing Labels

    Printing Labels The printer is ready to print when the control panel displays Printer Online. 1. Select the Print command from your application. 2. Select the printer and click the Setup, Properties or similar button. The print settings displayed are the defaults that were set in the printer driver. 3.
  • Page 19 Figure 6 Printing Preferences Print pages without any gap (continuous media only) Render entire document to disk before sending to the printer. Select this option if labels are skipped when printing large files. Select this option if labels are skipped when printing small labels.

  • Page 20: Select The Media Type

    Select the Media Type Selecting the media type that matches the media you are printing on will usually give the best print results. Select this Media Type: When you are printing on: Plain Paper Plain (uncoated) paper and labels. Matte Coated Label Matte coated labels.

  • Page 21: Adjust Alignment For Printing

    Adjust Alignment for Printing Always print a few test labels to check the alignment of the image. If the image is not centered, adjust the top of form and/or left edge offsets on the Media tab of the printer driver. A positive value for Top of Form adjusts the image towards the top of the label.

  • Page 22: Printing Borderless (Full-Bleed) Labels

    Printing Borderless (Full-Bleed) Labels The usual approach to borderless printing is to prepare an image slightly larger than the label size, then center the larger image over the label so that it prints over the edges. The following procedure describes where to make the adjustments on the VP5xx and VP6xx printer.

  • Page 23: Saving Custom Media Size Settings

    Saving Custom Media Size Settings Any custom media size settings will be lost if the printer driver is updated. You can save a copy of these settings to a backup file. Then whenever you update the printer driver, you can import the settings from the backup file. Export Custom Media Size Settings 1.

  • Page 24: Turning Off The Printer

    Turning Off the Printer Always use the Power button to turn off the printer. Removing power to the printer in any other manner may damage the printer. 1. Press the Power button on the control panel, then press (Select) to confirm. Printer Online SWITCH OFF 1.

  • Page 25: Managing Printer Security (Administrator)

    Managing Printer Security (Administrator) The VP5xx and VP6xx printer has three levels of security. Security Level Description Level 0 The printer powers up in level 0 by default, which allows users to (operator) access all the functions needed to print, but not to change printer parameters via the control panel.
  • Page 26 3. Set the password and click Submit. • The EWS password can have 3 to 12 alphanumeric characters. Special characters are not allowed. • The control panel password must contain 3 digits. Change Security Level for Printer Settings The administrator can change the security level for the following protected printer settings, which are enabled at Level 1 by default.

  • Page 27: Embedded Web Server (Ews)

    Embedded Web Server (EWS) The Embedded Web Server (EWS) provides remote access to the printer. You can monitor the printer status and check usage metrics. The administrator can also log in to view additional information and change various settings. 1. On the Windows Start menu, select All Programs > VIPColor > VIPColor VPxxx Label Printer >...
  • Page 28 The EWS contains the following pages: • Printer Status • Security Setup • Network Setup • Diagnostics • Advanced Settings Table 4 EWS: Printer Status EWS Page Description Information Shows printer and printhead information, and print counters. Control Panel – Click Launch to launch the remote control panel (Figure 7).
  • Page 29 Table 5 EWS: Security Setup EWS Page Description Printer Password Set the passwords for accessing the following: • Embedded Web Server (EWS). • Level 1 (Supervisor) security on control panel. • Level 2 (Administrator) security on control panel. The EWS password can have 3 to 12 alphanumeric characters.
  • Page 30 Adjusting Gap/Mark Sensor Thresholds 1. Load the media to be tested. 2. On the EWS Diagnostics page, under Sensor Threshold Values: a Select the test media type. b Specify the length of the label (min. 1”) and click Submit to apply the value. c Click TEST to run the test.
  • Page 31 • Advanced Settings 1 Advanced Settings • Advanced Settings 2 • Import/Export Setting Table 7 EWS: Advanced Settings 1 EWS Page Description Select a command and click Submit to send it to the printer. Remote commands Mid Job Servicing For roll-to-roll print mode only Interval Select a servicing interval and click Submit.
  • Page 32 For example, when printing wine labels, where the front and back labels are printed as a single page. Enable Memjet TPS When selected, the printer will reduce the thermal energy for the printhead algorithm for printhead during power up.
  • Page 33 Table 7 EWS: Advanced Settings 1 (continued) EWS Page Description Display last job page When selected, the number of labels printed will be displayed on the front panel count when printer is until the next print job starts. idle Disable COM port When selected, the printer will ignore or not transmit signals through the COM port, which is used mainly for debugging.
  • Page 34 Table 8 EWS: Advanced Settings > Advanced Settings 2 EWS Page Description • Pause Printer Pause Settings The printer will print labels at the selected time interval. • Print & Present Move the printhead to the capped position at the selected time interval after the last print.

  • Page 35: Other Support Tools

    Other Support Tools On the Windows Start menu, select All Programs > VIPColor > VIPColor VPxxx Label Printer > Support Tools. The Support Tools consist of the following: • Get Tech Support: Opens the Technical Support web page. • Buy Consumables: Opens the consumables web page for you to purchase ink supplies online.
  • Page 36 Using the Printer...

  • Page 37: Printer Maintenance

    Printer Maintenance Chapter 2 Guidelines for Preventive Maintenance Replacing an Ink Cartridge Cleaning the Printhead Replacing the Printhead Opening/Closing the Clamshell Cleaning Debris from the Cutting Zone Cleaning the Sensors Replacing the Output Module/Cutter Assembly Replacing the Service Station Replacing the Transfer Wiper Assembly Replacing the Aerosol Fan Filter Replacing the Waste Ink Absorber Printer Maintenance...

  • Page 38: Guidelines For Preventive Maintenance

    Guidelines for Preventive Maintenance Recommended maintenance depends on the print mode that is most frequently used. If you mostly print Roll to Roll (80%), refer to Table 10. Otherwise, see Table 11. Inspect means to check the condition and replace if necessary. Note that these are general guidelines for preventive maintenance.

  • Page 39: Replacing An Ink Cartridge

    Replacing an Ink Cartridge Do not open the front cover if the control panel shows Servicing Printhead. Wait for the servicing to be completed first. 1. Open the front cover of the printer. 2. Open the latch and remove the empty ink cartridge. 3.

  • Page 40: Cleaning The Printhead

    Cleaning the Printhead The printer provides three automated cleaning cycles for the printhead: Normal, Extended, and Extreme. Always start with the Normal cleaning cycle and proceed to the next level only if print quality does not improve. 1. On the control panel, select (Config) PRINTHEAD CLEAN...

  • Page 41: Replacing The Printhead

    Replacing the Printhead Make sure all the ink cartridges are installed before replacing the printhead. 1. Open the printer top cover. 2. On the control panel, select (Config) PRINTHEAD Replace.   Printer Online (Config) CONFIGURATION 3. PRINTHEAD (Select) PRINTHEAD 2.
  • Page 42 4. Hold the printhead by the handle and push it toward the printhead latch. Once the printhead is released, lift it out of the printer. NOTE: Dispose of the old printhead according to local regulations. 5. Remove the new printhead from its packaging. Do not touch the ink couplings, electrical contacts, or nozzles.
  • Page 43 6. Slide the printhead into the slot. Push it toward the front of the printer. It should snap into place. 7. Close the printhead latch. Check that ink is flowing through the tubes on both sides of the printhead. 8. Close the top cover. Printer Maintenance...

  • Page 44: Opening/Closing The Clamshell

    Opening/Closing the Clamshell In the following procedures you may need to open the clamshell in order to access the areas inside the printer. Opening the Clamshell Do not open the top cover if the control panel shows Servicing Printhead. Wait for the servicing to be completed first. 1.

  • Page 45: Cleaning Debris From The Cutting Zone

    Cleaning Debris from the Cutting Zone Clear all debris from the cutting zone to avoid contaminating the print zone, especially fine dust particles. 1. Open the top cover. 2. Vacuum any debris from the cutting zone. Open the clamshell and also check below the cutting zone, at the bottom of the printer and in front of the ink cartridges.

  • Page 46: Cleaning The Sensors

    Cleaning the Sensors Always keep the media path clean as accumulated dust can affect printing. Open the clamshell to its highest position. 2. Vacuum any dust or debris from the sensors. Use the rollers to help you locate the sensors as shown in Figure 3.

  • Page 47: Replacing The Output Module/Cutter Assembly

    Replacing the Output Module/Cutter Assembly Tools • Nitrile powder-free gloves • Small flat-heat screwdriver • T10 Torx driver • Scissors or cutter (for cable ties) • Cable ties Keep the cutting zone free from debris. Check cut labels to ensure that the cuts have clean edges and replace the cutter assembly when necessary.
  • Page 48 Figure 9 Connectors and cables on left side of clamshell connector for output module 5. Use a T10 Torx driver to remove the four screws securing the output module. connector for cutter assembly Remove the outer screws (a) first. 6. Carefully remove the output module from the clamshell. There is a black cable looped across the bottom of the output module.
  • Page 49 Replace Cutter Assembly If replacing the cutter assembly, continue with the following steps. 1. Use a small flat-head screwdriver to release the wire harness connector for the cutter assembly (labeled CUTTER MODULE) and separate it (Figure 2. Remove the two screws (a) securing the cutter assembly and remove the assembly (Figure 10).
  • Page 50 Installation 1. Seat the output module on the cutter assembly, aligning the mounting holes for the screws. 2. Loop the black cable over the bottom of the output module, pushing it back into the notches at the corners of the cutter assembly. 3.

  • Page 51: Replacing The Service Station

    Replacing the Service Station NOTE: Before you begin, remove the printhead and cap it with the orange protective cover. Tools • Nitrile powder-free gloves • T20 Torx driver • Disposable towels Removal Open the clamshell to its highest position. 2. On the control panel, select (Config) Wait for the printer to eject the service station.
  • Page 52 5. Pull the service station forward until you can disconnect the flex cable to the wiper motor. Loosen the clip on the connector (Figure 11) to release the flex cable. flex cable Ensure that the flex cable does not come into contact with any metallic surface.
  • Page 53 7. Carefully align the service station with the guide rails and slide it into the print engine. Push it in by applying even pressure near the edges, to ensure that the it goes in straight. Check the alignment: the cap on the service station must be parallel with the edge guide rail of the platen as shown below.

  • Page 54: Replacing The Transfer Wiper Assembly

    Replacing the Transfer Wiper Assembly Removal 1. Follow the instructions to remove the service station. 2. Disconnect the wiper motor cable from the PCB. 3. Release the PCB from the mounting clip. mounting clip wiper motor cable 4. Route the cable through the housing as you remove the transfer wiper assembly. wiper roller NOTE: Dispose of the old transfer wiper assembly according to local regulations.
  • Page 55 5. Route the wiper motor cable through the housing as you insert the new transfer Installation wiper assembly into the service station. 6. Push the cable between the clips. Align the PCB with the mounting clip and push gently into place. 7.

  • Page 56: Replacing The Aerosol Fan Filter

    Replacing the Aerosol Fan Filter You can replace the aerosol fan guard or just replace the fan filter. Tools • Nitrile powder-free gloves • T20 screwdriver Figure 12 Aerosol fan guard slot aerosol fan guard cover filter 1. Remove the printer’s side panel. 2.

  • Page 57: Replacing The Waste Ink Absorber

    Replacing the Waste Ink Absorber Tools • Nitrile powder-free gloves 1. Open the front cover of the printer. 2. Squeeze the latches on both sides of the waste ink tray and pull it out. 3. Remove the waste ink absorber and replace it with a new one. 4.
  • Page 58 Printer Maintenance...

  • Page 59: Troubleshooting

    Troubleshooting Chapter 3 If Error Messages Appear Poor Print Quality or Incorrect Printout Other Printing Problems Clearing a Media Jam Clearing Clogged Ink Nozzles Adjusting Sensor Sensitivity Troubleshooting...

  • Page 60: If Error Messages Appear

    If Error Messages Appear If error messages are displayed on the printer control panel, check the following table for the solution. Error Message Possible Cause Solution Clamshell Open The clamshell is open. Close the clamshell. The clamshell sensor is damaged Contact Technical Support for part replacement.
  • Page 61 Error Message Possible Cause Solution Mech Error [code] Printer mechanical fault. Note the error code and contact Technical Support. where [code] > 01 If Mech Error 2 or Mech Error 3a/3b appears during installation, see Troubleshoot Printer Setup on page 63. Do not attempt to restart the printer more than 3 times if the same Mech Error appears.
  • Page 62 Error Message Possible Cause Solution No Media No media is detected. Load a new roll of labels. The media is not properly inserted Re-load the media. into the input guide. Wrong Media Problems with the media. Printer feeds media without printing page 67.
  • Page 63 Table 12 Troubleshoot Printer Setup Possible Cause Solution Service station is jammed. Ensure that the cardboard is removed from inside the printer. Service station was tilted 1. Turn off the printer: Press the Power button on the control panel, then during shipment.

  • Page 64: Poor Print Quality Or Incorrect Printout

    Poor Print Quality or Incorrect Printout Problem Possible Cause Solution Long stripes of missing Ink nozzles are clogged. Clearing Clogged Ink Nozzles on page 68. print or vertical light streaks on several labels Printed barcode cannot The media is not suitable for Replace the media.
  • Page 65 Problem Possible Cause Solution Mixed or muddy colors The printhead is dirty. 1. Run Extended cleaning cycle from the control MAINTENANCE panel ( (Config)   CLEAN Extended).  If print quality shows some improvement, repeat Extended cleaning until the print quality is satisfactory.
  • Page 66 Problem Possible Cause Solution Mis-registration or Media settings do not match Make sure the settings are correct for the media labels are skipped the media loaded in the printer. (e.g. media size and orientation). The media does not meet the Choosing Label Media on page 12 for the specifications.

  • Page 67: Other Printing Problems

    Other Printing Problems Problem Possible Cause Solution Printer feeds media without Media settings do not match Make sure the Media Layout setting (gap, printing and then displays the media loaded in the black mark, or continuous) in the printer Wrong media on the LCD. printer.

  • Page 68: Clearing A Media Jam

    Clearing a Media Jam 1. Open the media cover. 2. Cut off the jammed media from the media roll. Open the clamshell to its highest position. 4. Remove the jammed media from inside the printer. Close the clamshell and top cover. 6.
  • Page 69 2. From the control panel, run Normal printhead cleaning. (Config) • If print quality shows some improvement, repeat Normal cleaning until the MAINTENANCE CLEAN Normal)    print quality is satisfactory. • If print quality does not improve, continue with step 3.

  • Page 70: Adjusting Sensor Sensitivity

    Adjusting Sensor Sensitivity Adjust the sensor sensitivity if you encounter the following problems: • The printer keeps feeding media and does not print. This may be because the printer is unable to detect the gap or black mark between labels and the sensor sensitivity needs to be increased.

  • Page 71: Appendix

    Appendix System Requirements Additional Networking Information Config Options on the Control Panel Printer Interface (GPIO) Specifications Regulatory Information Worldwide VIPColor Technologies Contacts Appendix...

  • Page 72: System Requirements

    System Requirements The computer used to print must meet the minimum requirements listed below. Specifications Processor Intel® Core™2 and above Operating system Supported operating systems with the latest updates: • Windows 10 (32- and 64-bit) • Windows 8 (32- and 64-bit) •...
  • Page 73 .NET Framework Installation on Windows Server 2008 R2 After the .NET Framework is installed on Windows Server 2008 R2, follow the steps below to activate the features. 1. On the Windows Start menu, select Administrative Tools > Server Manager. 2. Click Features to view the status of installed features. Click Add Features. 3.

  • Page 74: Additional Networking Information

    Additional Networking Information If the Printer Has a Static IP Address DHCP is enabled by default. If DHCP is not available and the printer is assigned a static IP address, set the static IP address from the control panel before installing the printer driver.

  • Page 75: Config Options On The Control Panel

    Config Options on the Control Panel On the control panel, press (Config) to access the following menus and options. Some settings require security Level 1 or Level 2 (see Selecting the Security Level page 11). Menu/Option Description SETUP Language Select the display language for the printer control panel. Supported languages are: English, French, German, Spanish, Italian, Traditional Chinese, Simplified Chinese, and Japanese.
  • Page 76 Menu/Option Description Page Cutting Select the printer default print mode. The available modes are • Sheet per cut • Print and Present • Roll to Roll (Leave first label blank) • Roll to Roll (Print from first label) • Roll to Roll (Multiple job queue When the use printer setting is selected in the driver, the printer will use this mode.
  • Page 77 Menu/Option Description EXT SIGNAL PRINT By I/O When this option is selected, the printer receives the print job but will not print until it receives a signal from an external device. Printer Interface (GPIO) Specifications on page 79. ADJUST OFFSET Offset range: ±0.5”...
  • Page 78 Menu/Option Description NETWORK List Network Print the network setup parameters which will fit neatly on a 4” x 4” label (with inter-label gap or continuous as specified in the EWS Diagnostics page). DHCP Setting Set the IP settings on the printer. •...

  • Page 79: Printer Interface (Gpio) Specifications

    Printer Interface (GPIO) Specifications The Printer Electrical Signal Interface and Protocol is developed to coordinate the printing of labels with an external process in a production workflow. Using this protocol, the printer (Device A) receives a print job but will not print until it receives a signal from an external device (Device B).
  • Page 80 Figure 14 Timing Diagram Table 13 GPIO Pin Assignment (D-sub 9-pin Connector) Signal Description HIGH (3.3 V) ADC 5 Print job ready (output) (GPIO A25) External device ready (input) (GPIO D04) Printer error (output) (GPIO D08) LOW (0 V) Appendix...

  • Page 81: Regulatory Information
