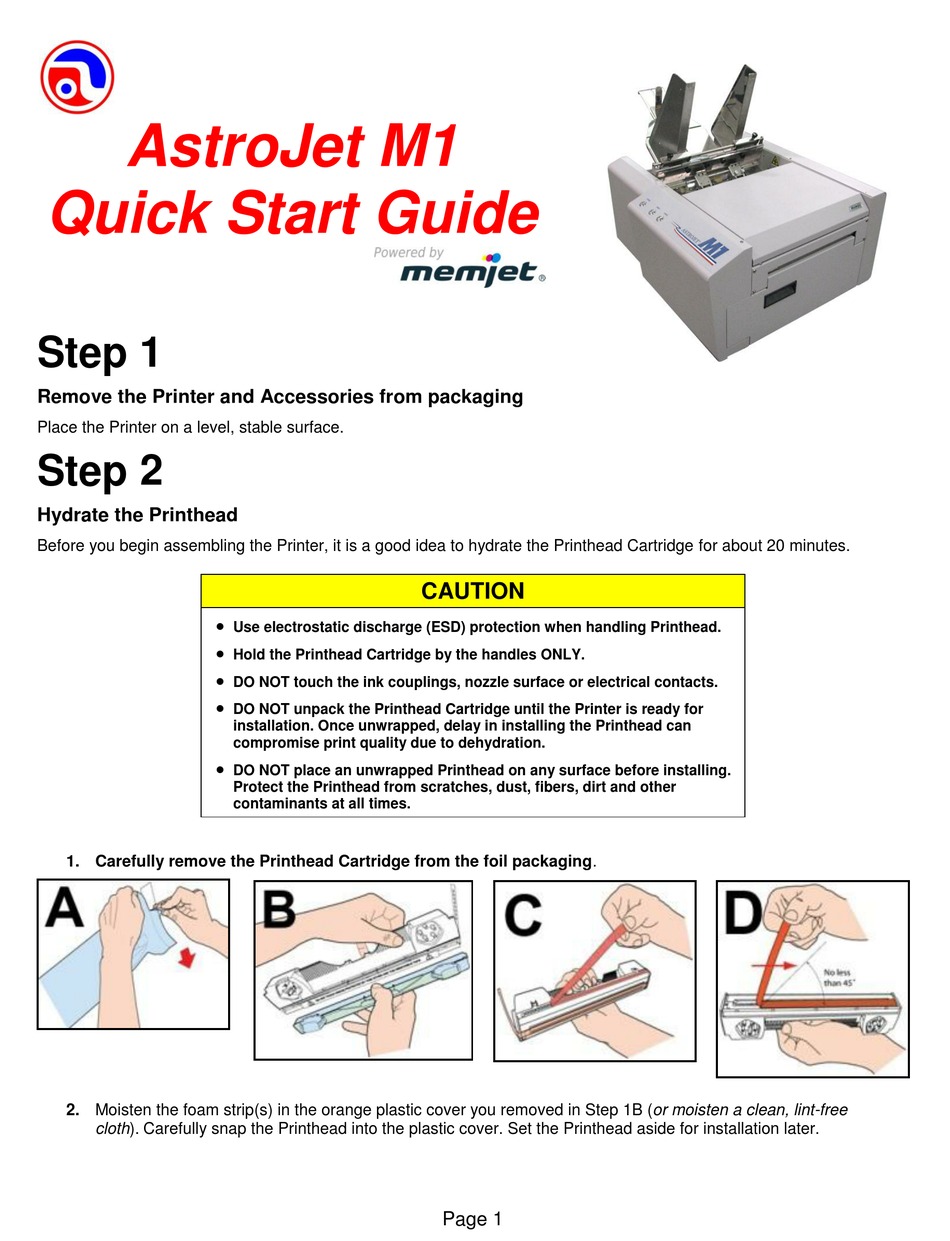

AstroJet M1
Quick Start Guide
Step 1
Remove the Printer and Accessories from packaging
Place the Printer on a level, stable surface.
Step 2
Hydrate the Printhead
Before you begin assembling the Printer, it is a good idea to hydrate the Printhead Cartridge for about 20 minutes.
1. Carefully remove the Printhead Cartridge from the foil packaging.
2. Moisten the foam strip(s) in the orange plastic cover you removed in Step 1B (or moisten a clean, lint-free
cloth). Carefully snap the Printhead into the plastic cover. Set the Printhead aside for installation later.
Use electrostatic discharge (ESD) protection when handling Printhead.
Hold the Printhead Cartridge by the handles ONLY.
DO NOT touch the ink couplings, nozzle surface or electrical contacts.
DO NOT unpack the Printhead Cartridge until the Printer is ready for
installation. Once unwrapped, delay in installing the Printhead can
compromise print quality due to dehydration.
DO NOT place an unwrapped Printhead on any surface before installing.
Protect the Printhead from scratches, dust, fibers, dirt and other
contaminants at all times.
CAUTION
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the AstroJet M1 and is the answer not in the manual?

Questions and answers

Related Manuals for Memjet AstroJet M1

Summary of Contents for Memjet AstroJet M1

  • Page 1 AstroJet M1 Quick Start Guide Step 1 Remove the Printer and Accessories from packaging Place the Printer on a level, stable surface. Step 2 Hydrate the Printhead Before you begin assembling the Printer, it is a good idea to hydrate the Printhead Cartridge for about 20 minutes.
  • Page 2 Step 3 Step 4 Remove Service Station Transport Tab and Assembly Shipping Tape Assemble the Adjustable Side Guide [1], 1. Open Top Cover. Envelope/Paper Side Guide [2], Rear Paper Support [3], 2. Open Print Engine Clamshell (2 latches). and Back Guide [4]. Save the packing material. CAUTION HOLD ONTO BOTH LATCHES WHEN OPENING AND CLOSING THE CLAMSHELL TO PREVENT DAMAGE.

  • Page 3: Print Driver Installation

    4. “License Agreement”. Check “I accept…” then Step 6 click “Next>”. Print Driver Installation Minimum System Requirements:  Windows XP, Windows Vista, Windows 7. (Supports 32 and 64 bit systems)  You must have administrative privileges on the system.  Microsoft Internet Explorer 6.0 or higher.

  • Page 4: Install Ink Tanks

    Step 7 8. “Connect Device Now”. Switch the Printer ON Don’t click on and connect the USB cable. either button. The software will finish installing. Install Ink Tanks Printer uses (1) Printhead Cartridge and (5) Ink Tanks (two Black, one Cyan, one Magenta, and one Yellow). 1.

  • Page 5: Install The Printhead Cartridge

    Step 8 5. Insert the Ink Tanks (labels up) into their appropriate color slots [B]. Close the three Ink Tank Latches. Install the Printhead Cartridge INSTALLATION TIP: Make sure the Tanks Handle the Printhead Cartridge with extreme care to seat properly. Insert the Ink Tank into the avoid damage that could degrade print quality.
  • Page 6 CLOSING THE CLAMSHELL TO PREVENT DAMAGE. For instructions on installing the Accessories and Printer DO NOT ALLOW THE CLAMSHELL TO DROP OR set-up or operation, please refer to the “AstroJet M1 SLAM CLOSED. Color Page Printer Operator Manual” in the Print A STOP LIMITS RAISING THE CLAMSHELL MORE Driver CD supplied with the machine.
