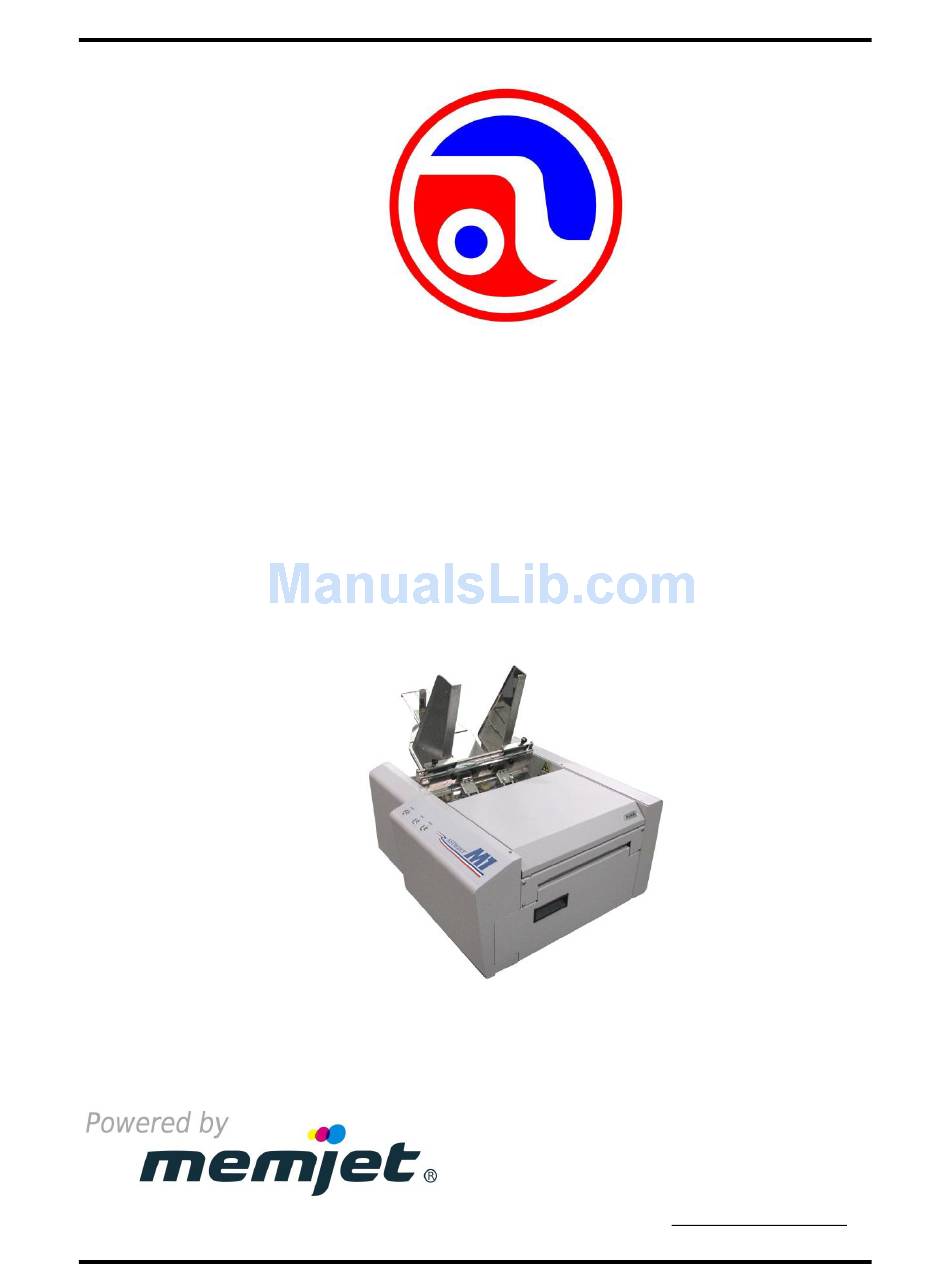

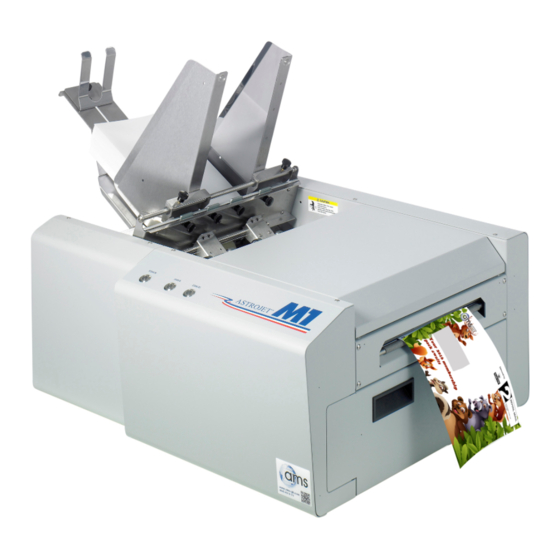

- Page 1 AstroJet COLOR PAGE PRINTER OPERATOR MANUAL ASTRO MACHINE CORP. 630 Lively Blvd. Elk Grove Village, IL 60007 Phone: (847) 364-6363 Fax: (847) 364-9898 www.astromachine.com...
-
Page 2: Safety Precautions
AstroJet is a registered trademark of Astro Machine Corp. ® Memjet is a registered trademark. All other trademarks are the property of their respective holders. All rights reserved. No part of this book may be reproduced or transmitted in any form or by any means, electronic or mechanical,... -
Page 3: Table Of Contents
Replacing Ink Tanks Cleaning Ink Tank Contacts Cleaning/Replacing Printhead Cartridge Replacing Service Station Replacing Ink Waste Tray Replacing Sheet Separators Jams in Printer Cleaning Shipping or Transporting Printer SECTION 5 – Troubleshooting Guide ® Memjet Printhead Printer Errors and Warnings... - Page 4 TABLE OF CONTENTS Appendices Appendix A – Printer Specifications Appendix B – Supplies and Optional Hardware Index Printer Maintenance Schedule Control Panel LED Sequences...
- Page 5 TABLE OF CONTENTS NOTES ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________...
-
Page 7: Section 1 - Getting Acquainted
SECTION 1 GETTING ACQUAINTED SECTION 1 – Getting Acquainted Front View Cancel LED Button – Cancels job being printed. Paper LED Button – Press to stop printing, press to restart printing. Press switch to continue printing. ON/OFF LED Button – Use to turn power ON or OFF during idle time and maintenance. -
Page 8: Rear View
SECTION 1 GETTING ACQUAINTED Rear View Main Power Switch, Receptacle and Fuse – Plug in power cord here. Switch turns main power ON/OFF. (Use Control Panel LED Power switch to turn off machine for cleaning and maintenance). Fuse protects Printer’s electronic circuits. USB Port Connection –USB cable attaches to Printer here. -
Page 9: Print Engine View
Ink Revolver Couplings – Connect ink hoses to Printhead Cartridge. Printhead Latch extends and retracts couplings from Printhead. ® Printhead Cartridge – Memjet Printhead produces an 8.5" wide full color print area. Printhead Latch Release Button* – Button inside opening will initiate a Printhead Latch release cycle. -
Page 10: Ink Tank Door View
SECTION 1 GETTING ACQUAINTED Ink Tank Door View Ink Tank Securing Latches – Used to hold Ink Tanks in slots. NOTE: Make sure both sides at bottom part of latch are engaged. Ink Tanks – Printer has 5 Ink Tanks: Cyan, Yellow, Magenta, Black, Black Ink Waste Tray –... -
Page 11: Control Panel Button/Led Indicators
SECTION 1 GETTING ACQUAINTED Control Panel Button/LED Indicators Control Panel has three buttons with LED indicators. POWER (ON/OFF) – Turns Printer power ON and OFF. Turn off power for cleaning and maintenance PAPER (STOP JOB/RESUME) – Stops Paper Feed or Resumes Printing. -
Page 12: Section 2 - Installing Printer
SECTION 2 INSTALLING PRINTER SECTION 2 – Installing Printer Contents of Packaging M1 Printer Ink Tanks – Cyan, Magenta, Yellow, Black, Black Printhead Cartridge Media Side Guides: Registration (Fixed) and Adjustable – mounting screws attached to Printer Rear Media Support Guide –... -
Page 13: Remove Service Station Transport Tab And Shipping Tape
SECTION 2 INSTALLING PRINTER Remove Service Station Transport Tab and Shipping Tape 1. Open Top Cover. 2. Release two latches (one on either side of Print Engine). Open top half of Clamshell by lifting both levers at same time. CAUTION HOLD ONTO BOTH LATCHES WHEN OPENING AND CLOSING PRINT ENGINE CLAMSHELL TO PREVENT DAMAGE. -
Page 14: Assembling Printer
SECTION 2 INSTALLING PRINTER Assembling Printer 1. Install Adjustable Side Guide with two screws [1]. 2. Install Envelope/Media Side Guide with two screws [2] (included). 3. Attach Rear Media Support using knob [3] provided. NOTE: Two outside holes fit over socket head screws. 4. -
Page 15: Connecting Printer
SECTION 2 INSTALLING PRINTER Connecting Printer Plugging in Printer Plug power cord into receptacle [1] at rear of Printer. Internal power supply in Printer is rated 115 to 240VAC, 50/60 Hz. CAUTION DO NOT USE AN ADAPTER PLUGS OR EXTENSION CORDS TO CONNECT PRINTER TO WALL RECEPTACLE. -
Page 16: Install Printer Driver
SECTION 2 INSTALLING PRINTER Install Printer Driver For Printer software to operate properly, check that computer system meets minimum requirements: Operating System: Windows 8/8.1, Windows 10 (Desktop Mode only). Windows XP, Windows Vista, Windows 7. Supports 32 and 64 bit systems. (You must have administrative privileges on system.) NOTE: Win 8, 8.1 and Windows 10 will only work in desktop mode. - Page 17 SECTION 2 INSTALLING PRINTER 3. License Agreement. Check “I accept…” then click “Next>”. 4. Printer Connections. Click “Configure to print using USB”. Then click “Next>”. 5. Installing Printer Software. Software download begins. 6. Would You Like to Install This Device Software? Click “Install”.
-
Page 18: Install Over Network Connection, Version A
SECTION 2 INSTALLING PRINTER 8. Finished software installation. Do not check the Print Test Page as Printer is not set up yet. You can check “Set this printer as the default printer” at this time. Click “Finish”. 9. Install Printer Software. Click “Exit”... - Page 19 SECTION 2 INSTALLING PRINTER 3. License Agreement. Check “I accept…” then click “Next>”. 4. Printer Connections. Click “Configure to print using the Network”. Make sure the Printer is connected to the Network. Then click “Next>”. 5. Printers Discovered. A list of available Printers opens.
- Page 20 “M Series (Network-1)” and a USB-configured printer “M Series (USB)”. To open the “Toolbox” utility over an Ethernet (network) connection: Click Start, All Programs, Memjet, M Series Driver, Toolbox. If more than one copy of the M-Series Driver is installed, you will have to choose which device you want the Toolbox to connect to.
-
Page 21: Install Over Network Connection, Version B
SECTION 2 INSTALLING PRINTER Install Over Network Connection, Version B Use this procedure to install the Print Driver over the Network connection on Static IP systems requiring that an IP address is assigned manually. NOTE: You will need the 12-digit address number listed on the Printer(s) on the label just above Ethernet port so you can identify the Printer in a later step. - Page 22 “M Series (Network-1)” and a USB-configured printer “M Series (USB)”. To open the “Toolbox” utility over an Ethernet (network) connection: Click Start, All Programs, Memjet, M Series Driver, Toolbox. If more than one copy of the M-Series Driver is installed, you will have to choose which device you want the Toolbox to connect to.
-
Page 23: Install Ink Tanks
SECTION 2 INSTALLING PRINTER Install Ink Tanks Printer uses one Printhead Cartridge and five Ink Tanks (two Black, one Cyan, one Magenta, and one Yellow). 1. Open Printer Toolbox. Go to Start Menu and open “Toolbox”. System Status information appears in upper left corner of User Interface window. - Page 24 SECTION 2 INSTALLING PRINTER 5. Insert Ink Tanks (labels up) into appropriate color slots [B]. Close three Ink Tank Latches. INSTALLATION TIP: Make sure Ink Tanks seat properly. Insert Ink Tank into appropriate Ink Station, then pull Ink Tank back about an inch and push forward firmly to insure that Ink Nozzles penetrate seals on Ink Tanks.
-
Page 25: Install Printhead Cartridge
SECTION 2 INSTALLING PRINTER Install Printhead Cartridge Printhead Cartridge is a delicate precision device. Handle with extreme care to avoid damage and issues that could degrade print quality. CAUTION Use electrostatic discharge (ESD) protection when handling. Hold Printhead Cartridge by handles ONLY. ... - Page 26 SECTION 2 INSTALLING PRINTER 2. [A] Carefully remove Printhead Cartridge from foil packaging. Tear at notch or cut end with scissors. [B] Remove protective plastic cover. Hold Printhead by handle and unclip cover from Printhead. [C] Remove protective strip from Printhead Electrical Contacts.
- Page 27 SECTION 2 INSTALLING PRINTER 4. Wet Printhead Surface. (Ensures that Printhead will prime correctly.) Open Top Cover. Release and lift two latches at same time to raise Print Engine Clamshell. Moisten Printhead nozzles using distilled water and a damp, lint-free cloth, wiping end to end.
-
Page 28: Removing Head Media Guide
SECTION 2 INSTALLING PRINTER Removing Head Media Guide Remove Head Media Guide if primarily printing on thin, flat stock (that is, not printing large batches of envelopes) and are encountering print quality issues. Attachment is used to flatten envelope flap for better print consistency. -
Page 29: Install/Remove Envelope Attachment Spacers
SECTION 2 INSTALLING PRINTER Install/Remove Envelope Attachment Spacers Install Envelope Attachment Spacers if you are printing large volumes of envelopes. Remove Spacers if you are primarily printing sheet stock. DO NOT use spacers without Envelope Attachment (Head Media Guide). Install: 1. -
Page 30: Setting Up Feed
SECTION 2 INSTALLING PRINTER Setting up Feed Printer is equipped with four Sheet Separators, two Side Guides and a Rear Media Guide. Adjust Sheet Separators individually: 1. Move Left-hand Side Guide into position. Guide has two positions. Position closest to Side Frame is for 9.5" media. Position closest to center of Printer is for printing 8.5"... - Page 31 SECTION 2 INSTALLING PRINTER 4. Adjust Right-hand Side Guide so that it is about 1/32" from sides of media. Tighten locking knob on Side Guide. Place a stack of media in machine. Press and hold Paper key to feed one piece through Separator.
-
Page 32: Section 3 - Operating Printer
SECTION 3 OPERATING PRINTER SECTION 3 – Operating Printer Once Printer Driver is installed and Printhead is primed, you are ready to start printing. Set up your job and send it to Printer. Printer will start and print. This section is divided into two parts: 1. - Page 33 SECTION 3 OPERATING PRINTER Printing a Typical Job on 8.5" x 5.5" Paper Printer can print edge-to-edge on an 8.5" x 5.5" document. To set up a job: 1. Go to File, then Page Setup and select 0" margins. 2. Select Paper tab, select Paper Size, “Custom size” then set paper Width to 8.5"...
-
Page 34: Printer Driver Properties
SECTION 3 OPERATING PRINTER Printer Driver Properties Printer Driver works the same as any other Printer Driver for Windows. It does have some enhancements to help maximize Printer's ability to print variable addressed pieces quickly and efficiently. Windows XP, Vista, Windows 7, Windows 8, Windows 10: Once job is set up, click File, then Print. -
Page 35: Layout Tab
SECTION 3 OPERATING PRINTER Media – Choose a type of media or MEDIA PROFILE MEDIA TYPE different size media than document Plain Paper was originally designed for. Plain Paper Bright White Paper Type: Chart at right lists media Presentation Paper profiles associated with type of media Postcards Matte chosen. - Page 36 SECTION 3 OPERATING PRINTER Using Layout Tab Printing Adjustments Image Position – Left Adjustment moves image area away (-3mm left to +200mm right) from left edge of media. Top Adjustment moves image up or down (-5mm up to +200mm down) from top left corner of media used. (0.1mm increments) Max Page Width –...
-
Page 37: Color Tab
SECTION 3 OPERATING PRINTER Color Tab Color is used to adjust the color output of the Printer. Use the sliders to adjust Color Tone, Brightness and Saturation. The C, M, Y, K sliders adjust individual colors. Use Defaults to reset to 0 settings. Import/Export Tab Import/Export is used to preserve any custom Media Sizes, Watermarks and/or Print Settings you... -
Page 38: Services Tab
SECTION 3 OPERATING PRINTER Services Tab Services allows you to: Print Configuration Page – Prints out current configuration of Printer including current Firmware Version, Network Connection, Printer Serial Number and more. Print Colorbar Page – Prints type and color bands to check print quality. -
Page 39: Using Printer Toolbox
SECTION 3 OPERATING PRINTER Using Printer Toolbox Once Printer Driver is installed, you can access Printer Toolbox. You can check Printer status, monitor ink usage, perform diagnostic checks, print reports and run maintenance tasks on Printer from your computer. To open Toolbox: Open Start Menu, then click on Toolbox. - Page 40 SECTION 3 OPERATING PRINTER [B] SETUP Settings – Adjust automated service and cleaning intervals, adjust feeder speed for a job, manually set gap between pieces and adjust Printer for pre-printed media. KWS Setting – (Keep Wet Spitting) Keeps Printhead hydrated while running a job. Select from 3 settings: None, Light (default), Heavy, to determine how much ink will “spit”...
- Page 41 SECTION 3 OPERATING PRINTER [C] SERVICE buttons control functions that require machine to be out of service for extended periods of time while they are being performed. Replace Ink Tanks – Disconnects Printer communication with Ink Tank Sensor. Allows safe removal of Ink Tanks for replacement.
- Page 42 SECTION 3 OPERATING PRINTER [D] Display Language – Selects language EWS (Toolbox) will display. Click “Submit” after selecting language. [E] Firmware Download – Get latest version of firmware for your Printer. NOTE: This is an alternative method for downloading firmware. See “Updating Firmware”...
- Page 43 SECTION 3 OPERATING PRINTER Diagnostics From this screen you can see current status of your Printer. You can also: Print Setup Page – Prints a printing pattern used for positioning image on the page. (Duplex Printer: the same page is printed on both units to help align top and bottom Printers).
-
Page 44: Ink Usage
SECTION 3 OPERATING PRINTER Ink Usage Allows you to monitor estimated amount of ink left in each Ink Tank. Monitor ink use and consumption and schedule Tank changes (saving down- time during a print run.) NOTE: Ink Usage only works when you install a new Ink Tank and leave it in Printer. - Page 45 SECTION 3 OPERATING PRINTER Network Configuration Permits you to view, enter or change settings to connect Printer to your network. Network Connection Set Up: 1. Printer is still connected to computer via USB cable. To connect Printer to a network, open Toolbox.
-
Page 46: Updating Firmware
Printer, download “*.bin” file and save it to your desktop. 2. From Start Menu, open All Programs. Open “Memjet” folder, then “M Series Driver”. Click “Update Firmware”. 3. Click “Browse” button. Find and select file just saved to your desktop. -
Page 47: Section 4 - Maintenance
SECTION 4 MAINTENANCE SECTION 4 – Maintenance General, periodic maintenance is needed to keep Printer in good working order. This section covers how to care for Ink Tanks, Printhead Cartridge, Service Station, and clear paper jams. Replacing Ink Tanks Replace Ink Tanks when ink runs out. 1. - Page 48 SECTION 4 MAINTENANCE 6. Click “Continue” on Confirm screen, then “Refresh Ink Levels” on User Interface screen. Ink colors fill in as Ink Tanks are installed. If ink colors do not fill in after a few seconds, click “Replace Ink Tanks” again and reinstall Ink Tank(s).
-
Page 49: Cleaning Ink Tank Contacts
SECTION 4 MAINTENANCE Cleaning Ink Tank Contacts When reinstalling or replacing Ink Tanks, Ink Level indicator in Toolbox may not refresh. This may be due to a dirty Ink Tank Level Prism and/or QA Chip contacts on that Ink Tank(s). Clean contacts as follows: 1. -
Page 50: Cleaning/Replacing Printhead Cartridge
SECTION 4 MAINTENANCE Storage New Ink Tanks should be stored in original packaging and kept away from heat. Opened Ink Tanks should remain in Printer. Nominal Ink expiration date: 24 months following date of manufacture (ink fill date). Disposal Safely dispose of Ink and Ink Tanks in accordance with local/national regulations. Clean up spills with soap and water. - Page 51 SECTION 4 MAINTENANCE Replacing Printhead Cartridge 1. Open Toolbox. On User Interface screen, System Status information appears in upper left corner. 2. Open Top Cover. Press Printhead Latch Release button [1]. Printer pumps any ink in system back into Tanks. Then Printhead Latch pops open [2]. NOTE: Perform this same function from your computer by clicking “Printhead Release”...
- Page 52 SECTION 4 MAINTENANCE 4. [A] Carefully remove Printhead Cartridge from foil packaging. Tear at notch or cut end with scissors. [B] Remove protective plastic cover. Hold Printhead by handle and unclip cover from Printhead. [C] Remove protective strip from Printhead electrical contacts.
- Page 53 SECTION 4 MAINTENANCE 7. Wet Printhead Surface. (Ensures that Printhead will prime correctly.) Open Top Cover. Release and lift two latches at same time to raise Print Engine Clamshell. Moisten Printhead nozzles using distilled water and a damp, lint- free cloth, wiping end to end. (Gray strip located below orange strip.) Close and latch Print Engine Clamshell.
-
Page 54: Printhead Service Life
(including cleanliness) and other factors. M-Series Printhead Return Policy Return Policy and Return Procedure for Memjet Printheads for M-Series Printers: Limited Printhead Replacement Policy: M-Series Printheads are manufactured to be free from defects in materials and workmanship. - Page 55 SECTION 4 MAINTENANCE Return Procedure: 1. Verify eligibility for return. Check page count printed by this Printhead, if page total is more than 40,000 pages, replacement policy does not apply. NOTE: This is NOT the Printer page count. Make sure Printer is powered up and connected via USB or network.
-
Page 56: Replacing Service Station
SECTION 4 MAINTENANCE Replacing Service Station Service Station (located above Ink Tank Station) cleans Printhead Cartridge of excess ink and debris, keeps Printhead hydrated and protected when not in use, captures ink used to keep nozzles clear, and acts as a base to support media during printing. - Page 57 SECTION 4 MAINTENANCE 3. Carefully slide Service Station out of Service Station port. NOTE: DO NOT pull Service Station all the way out until you disconnect Ribbon Cable. USEFUL TIP: Place an absorbent towel under Service Station before you remove it to catch any drips or leaks.
- Page 58 SECTION 4 MAINTENANCE 6. Slide Latch open on Service Station Circuit Board. 7. [1] Plug Ribbon Connector (blue side up) into space under Latch. [2] Close Latch. 8. [1] Slide Service Station into Service Station port until it touches bar. Align with tracks along sides and Guide on Service Station dock floor.
- Page 59 SECTION 4 MAINTENANCE 9. GENTLY push Service Station while turning large Gear on right side of Print Engine clockwise. Gear should engage gear on Service Station Roller and pull it in. Once Service Station starts moving, stop turning gear. 10. Power up unit, then click “Install Service Station”...
-
Page 60: Replacing Ink Waste Tray
SECTION 4 MAINTENANCE Replacing Ink Waste Tray Ink Waste Tray soaks up any excess ink that may drip from Print Engine during operation. After a period of time it may become saturated and need replacement. 1. Open Ink Tank Door. 2. -
Page 61: Jams In Printer
SECTION 4 MAINTENANCE Jams in Printer If a jam occurs, STOP the Printer. Some possible causes for jamming are: 1. Feeding more than one piece of media (double-feeding). 2. Damaged media, such as dog-eared (turned down corners). 3. Media that is not stiff enough may not be usable. Media that meets Postal stiffness requirements for automated feeding is acceptable in Printer 4. -
Page 62: Cleaning
SECTION 4 MAINTENANCE Cleaning WARNING! PRINTER IS A PRECISION MACHINE. CLEAN REGULARLY TO INSURE MANY YEARS OF SERVICE. BEFORE PERFORMING ANY MAINTENANCE, DISCONNECT MACHINE FROM ITS POWER SOURCE! DO NOT REMOVE SIDE COVERS! HIGH VOLTAGES PRESENT. Clean Printer regularly to remove accumulated paper dust and ink. Depending on types of media run, paper dust may accumulate inside Printer and on Transport. -
Page 63: Print Engine
SECTION 4 MAINTENANCE Print Engine Areas in Print Engine can become glazed with a buildup of dust, paper lint and accumulated ink and have to be cleaned regularly. Open Top Cover. Open Clamshell Assembly by releasing two latches. Use a vacuum to pick up any loose debris. -
Page 64: Shipping Or Transporting Printer
SECTION 4 MAINTENANCE Shipping or Transporting Printer If you have to ship or transport Printer for any reason, unit will have to be prepared. Once Printer is prepared, carefully package Printer, Printhead Cartridge, Service Station and Ink Tanks in original packaging. Deprime System 1. - Page 65 SECTION 4 MAINTENANCE Remove Service Station 1. Open Front Cover (hinged at bottom). Open Top Cover. Release two latches and open Print Engine Clamshell. Service Station will not fully eject with Clamshell closed. 2. Open Printer Toolbox. Click “Eject Service Station”. Once Printer pushes Service Station out, turn Printer OFF.
- Page 66 SECTION 4 MAINTENANCE 4. Disconnect Ribbon Cable. Slide Latch open on Service Station Circuit Board to release Ribbon Cable. Remove Service Station. Remove Ink Tanks 1. Open Front Cover (hinged at bottom). Unlatch three Locks [A] and pull Ink Tank(s) out of Printer. 2.
-
Page 67: Section 5 - Troubleshooting Guide
The best advice we can offer is to make sure that system is set up properly, plugged in, and has an adequate supply of ink before attempting to troubleshoot any problem. ® Memjet Printhead CONDITION... -
Page 68: Printer
SECTION 5 TROUBLESHOOTING Printer CONDITION PROBLEM SOLUTION Ink Tank installed, no Ink Ink Tank contacts dirty, Remove Ink Tank(s). Level indication in Toolbox preventing Printer/Ink Tank Clean prism and QA Chip contacts, see Maintenance, Cleaning Ink communication. Tank Contacts. Extra lines; losing data Database problem. -
Page 69: Errors And Warnings
SECTION 5 TROUBLESHOOTING Errors and Warnings Printer Alert Window Messages Messages sent from Driver and displayed on PC screen in a small popup window. MESSAGE SOLUTION Wait until message disappears. Printer will start printing your job once Cleaning in Progress cleaning process is complete. -
Page 70: Toolbox System Status Messages
SECTION 5 TROUBLESHOOTING Toolbox System Status Messages Displayed in in M Series Toolbox utility. (Valid for printers with firmware version 20130820 or higher installed.) SYSTEM STATUS SOURCE SOLUTION Out of Paper Load media into Printer and press PAPER button to Media is not reaching resume printing. - Page 71 SECTION 5 TROUBLESHOOTING Toolbox System Status Messages (Continued) SYSTEM STATUS SOURCE SOLUTION INK _LOW X = Color. Ink Tank replacement will be necessary soon. Reorder Ink. One or more Ink Tanks are low on ink. Replace empty Ink Tank(s), using X = Color.
- Page 72 SECTION 5 TROUBLESHOOTING Toolbox System Status Messages (Continued) SYSTEM STATUS SOURCE SOLUTION Visually inspect component Mechanical error stated as a “Reason” for failure. One of Printer's mechanical Using Scan Sensors page in components was not Toolbox, perform toggle test on properly registered at Sensor responsible for expected position.
- Page 73 SECTION 5 TROUBLESHOOTING Toolbox System Status Messages (Continued) SYSTEM STATUS SOURCE SOLUTION Printhead missing and Install Printhead. one or more of Ink Install Ink Tanks. Tanks are missing. When this error occurs, Multiple EWS monitoring is disabled. No Printhead installed If Printer was just powered on, or Printhead not wait a minute;...
-
Page 74: Appendices
Maximum: 0.020" (0.5 mm) DUTY CYCLE 350,000 #10 Envelopes per month Water-based ink. 5 individual 250 ml ink tanks (CMYKK) ® PRINT CARTRIDGE Memjet Replaceable Printhead INTERFACE USB 2.0 and Ethernet ELECTRICAL 110 VAC, 50/60 Hz (220-240 VAC, 50/60 Hz available) DIMENSIONS 20"... -
Page 75: Index
INDEX #10 Envelope Setup .......... 26 9.5" x 17" Paper Setup ........26 Head Media Guide ........... 22 Adjustable Media Guide ......1, 2, 8 Import/Export Tab, Printer Driver ....31 Assembling Printer ..........8 Indicators, Control Panel Button ....... 5 Ink Revolver Couplings ........ - Page 76 INDEX Return Policy ..........48 Return Procedure ........49 Package Contents ..........6 Service Life ..........48 Paper Button ............1 Storage ............48 Power Button ............1 Troubleshooting ......... 61 Power Connection ..........2 Print Engine Cleaning ............57 Rear Guide ..........1, 2, 8 Ink Revolvers ..........
- Page 77 INDEX Top Cover ............1 Troubleshooting ..........61 Errors and Warnings ........63 Printer ............62 Printhead ............. 61 Unpacking ............6 USB Port ..........2, 9, 11 User Interface, Toolbox ........33 Using Printer Toolbox ........33 Warning Messages ........... 63...
-
Page 78: Printer Maintenance Schedule
PRINTER MAINTENANCE SCHEDULE General, periodic maintenance is needed to keep Printer in good working order. Many tasks can be performed by operators with basic supplies, no special tools needed. Other tasks should only be performed by trained service personnel. NOTE: High volume usage may require more frequent maintenance. Maintenance Supplies &... - Page 79 NOTES ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________...
-
Page 80: Control Panel Led Sequences
Control Panel LED Sequences Print and cut out this chart to mount on Printer if desired. Suggested location: Top Cover. - Page 83 Copyright © 2015 ASTRO MACHINE CORP. Elk Grove Village, IL 60007 12/30/2015 Part Number: 200-M1, Rev. U...
