Model F1S5-FSLO, K115, Large Orifice Flat Spray-
Sprinkler
Types
Standard Pendent
Models F1S5-FS56, F1S5-FS42 and
F1S5-FSLO Flat Spray Sprinkler
Types
Standard Pendent
Listings & Approvals
F1S5-FSLO
• VdS Schadenverhütung
Gxxxxx
• CE Certificate: Standard EN 12259-1, Certificate of
constancy of performance 0786-CPR-xxxxx
F1S5-FS56
• VdS Schadenverhütung
G4080046
• CE Certificate: Standard EN 12259-1, EC-Certificate
of conformity 0786-CPD-40241
F1S5-FS42
• VdS Schadenverhütung
G414024
• CE Certificate: Standard EN 12259-1, Certificate
of constancy of performance 0786-CPR-40297

Product Description

The F1S5-FS56, F1S5-FS42 and F1S5-FSLO Flat Spray
Sprinklers are designed for installation in accordance with
CEA 4001 or EN 12845 (Automatic Sprinkler Systems - De-
sign, Installation and Maintenance). The spray pattern cre-
ated by this sprinkler makes this an excellent choice for ap-
plications with lower clearance above the suspended open
ceilings and in racks.
The F1S5-FS56, F1S5-FS42 and F1S5-FSLO Flat Spray
Sprinklers with shield are used in applications where there
are high and lower level sprinklers. The shield is to help pre-
vent the lower level sprinklers from getting wet by the higher
level sprinklers.
The F1S5-FS56, F1S5-FS42 and F1S5-FSLO Flat Spray
Sprinkler utilize a special response frangible 5.0mm glass
bulb. The glass bulb consists of an accurately controlled
amount of special fluid hermetically sealed inside of a pre-
cisely manufactured glass capsule. This glass bulb is special-
ly constructed to provide fast thermal response.
Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523
GmbH: Certificate
GmbH: Certificate
GmbH: Certificate
in both the liquid phase and in the vapor phase. The vapor
phase can be seen as a small bubble. As heat is applied, the
liquid expands forcing the bubble smaller and smaller as the
liquid pressure increases. Continued heating forces the liquid
to push out against the bulb, causing the glass to shatter,
opening the waterway and allowing the deflector to distribute
the discharging water.
Sprinkler temperature ratings are identified by the color of
the glass bulb capsule.

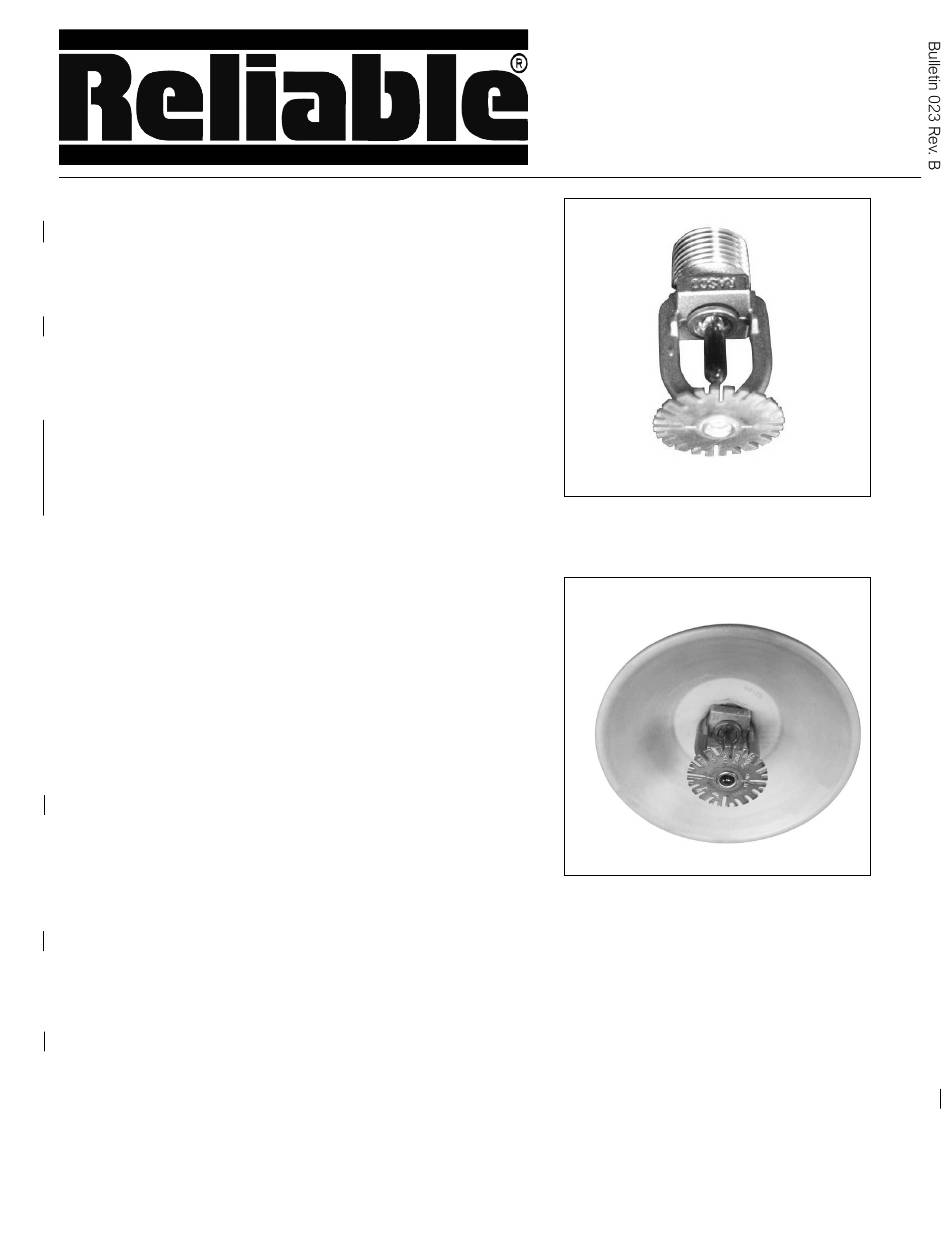

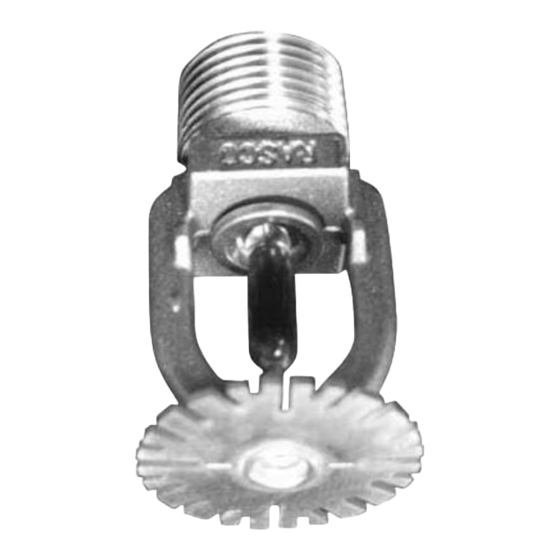

Model F1S5-FSLO with ½" threads
Model F1S5-FS56, Model F1S5-FS42
Special Response
Flat Spray Sprinklers
Pendent
Pendent with shield
At normal temperatures, the glass bulb contains the fluid
The F1S5-FS56, F1S5-FS42 and F1S5-FSLO Flat Spray
Bulletin 023 Rev. B
