- Page 1 Release Version 1.1 1 Channel IP Over UTP Transmission Solution SC-IPC07PU User Manual 1-channel Transmitter 1-channel Receiver...
- Page 2 Release Version 1.1 Precaution and Safety Guidelines The content of this guideline is intended to protect user safety and prevent property damage. Please read these operating instructions carefully and use the device properly. Warning (If you do not keep any of the below guidelines, you may get seriously injured or cause somebody’s death.) ■...
-
Page 3: Network Cable Diagram
Release Version 1.1 Caution (Failure to follow any of the following guidelines could result in personal injury or property damage.) ■ Avoid installing near strong magnetic fields or radio waves and wireless devices such as radio or TV. - Install in a place that is free from magnetic, radio, or excessive vibration. ■... - Page 4 1. Introduction 1-1. Overview SC-IPC07PU, consisting of a 1-channel transmitter and a 1-channel receiver, transmits Ethernet data and power via a UTP cable. Its built-in power supply function (IEEE802.3at) operates the transmitter and the PoE camera from the receiver side without separate power lines. It compensates for the conventional short-range network system by transmitting Ethernet data over long distances.

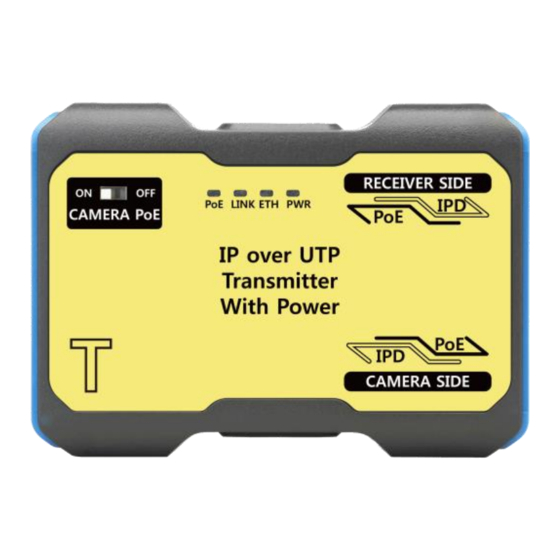

- Page 5 Release Version 1.1 3. Product Parts and Functions 3-1. Transmitter ② ① ③ ④ ① CAMERA PoE: A Switch for setting the power supply of the PoE IP camera. ※ When the product is turned on, each LED will first light up in sequence and the product will operate.
- Page 6 Release Version 1.1 3-2. Receiver ③ ① ② ④ ⑤ ① NVR SIDE: A connection port to the NVR or PoE hub. ② TRANSMITTER SIDE: A connection port to the transmitter and for the video input. ③ DC 48~56V IN: A connector for connecting the DC power adapter (48V or 56V). ※...
-
Page 7: Application Diagram
Release Version 1.1 4. Application Diagram 4-1. When connecting a PoE IP Camera (Tx’s PoE Switch must be ON) Transmission Distance over UTP cable (CAT.5e): 10Mbps-800m & 100Mbps-500m <Installation Guide> ① Set the CAMERA PoE switch on the transmitter to ON. (PoE LED on) ※... -
Page 8: Specifications
Release Version 1.1 5. Specifications MODEL Transmitter Power Input PoE (PoE input from the receiver) Power Output Midspan PoE (Type B Only, PoE SW On/Off available) Transmission Bandwidth 100Mbps RECEIVER SIDE RJ-45 (TIA/EIA568B Type) Connection Port CAMERA SIDE RJ-45 (TIA/EIA568B Type) RED LED GREEN LED LED Indicator... -
Page 9: Power Output
Release Version 1.1 6. Power Output (Calculated Value) Cable Transmission Transmission With With Cable Loop Distance (CAT.5e) Bandwidth DC48V 1A Adapter DC56V 1.16A Adapter Resistance 100m 100Mbps 18.2Ω 200m 100Mbps 17.2W 36.2Ω 300m 100Mbps 11.4W 54.7Ω 400m 100Mbps 8.6W 16.6W 72.9Ω... -
Page 10: Troubleshooting
Release Version 1.1 8. Troubleshooting Symptom Identification method <Transmitter> • Check if the receiver's PoE LED is on and the transmitter's PWR LED is on. • Check the UTP cable connection. No Power. <Receiver> • Check the AC power cable. •... -
Page 11: Warranty Certificate
Release Version 1.1 9. Warranty Certificate This product has passed thorough quality control and test, and if this gets broken during normal use, we provide the two-year warranty service. Model No. Serial No. Distributor Date you purchased Place you purchased Warranty Period Two (2) year from the date of purchase Name... - Page 12 Release Version 1.1 SeeEyes Co., Ltd #5F, Sunil Technopia, 555 Dunchon-daero, Jungwon-gu, Seongnam City, Gyeonggi Province, Korea (Zip Code: 13215) TEL: +82-(0)31-730-5833 FAX: +82-(0)31-777-3512 EMAIL: overseas@sscctv.com http://www.sscctv.com/eng...
