- Page 1 Release Version 1.3 HD-ANALOG MULTI FORMAT UTP TRANSMITTER & RECEIVER SC-MUCP0801E User’s manual...
-
Page 2: Safety Warnings And Cautions
Release Version 1.3 Safety Warnings and Cautions This is to protect user safety and prevent property damage. Please read carefully and use it correctly. Warning (If not followed, the user may die or be seriously injured.) ■ Before installation, be sure to disconnect the power cord from the device before installation. Also, do not use multiple power plugs at the same time. - Page 3 Release Version 1.3 Caution (If not observed, it may result in personal injury or property damage) ■ Avoid installation in a place with strong magnetism or electric waves, or in a place close to wireless devices such as radios or TVs. - Install in a place where there are no magnets, radio waves, or severe vibration.
-
Page 4: Product Introduction

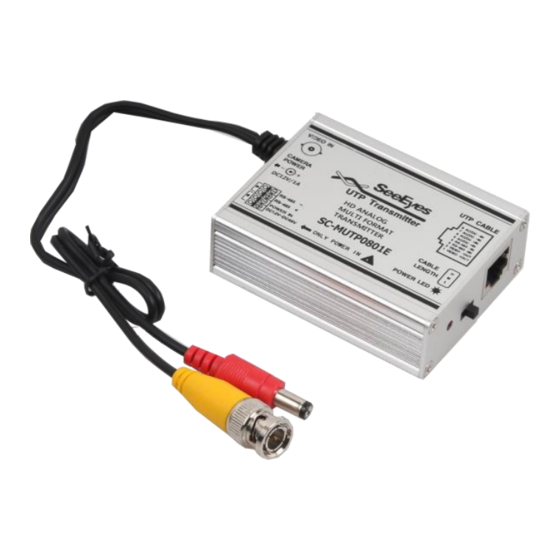

SC-MUCP0801E is a 1-channel UTP video transmission kit that supports various HD-Analog signals. AHD, TVI, and CVI are supported, and existing SD analog signals can be also used. SC-MUCP0801E is an excellent product for field application as it is made up of a slim size aluminum case. - Page 5 Release Version 1.3 ② CAMERA POWER: DC12V output terminal ※ If CAMERA power is not supplied or DC12V output terminal is not used, be sure to connect a load resistor. ③ RS-485: RS-485 DATA connection terminal (+/- polarity caution) ④ POWER IN: DC12V and DC48V input terminals (+/- polarity cation) ( ※...
- Page 6 Release Version 1.3 4-1. When DC 48V is supplied from the receiver. 4-2. When supplying with DC12V/DC48V respectively. - SC-MUTP0801E converts the power input through UTP line or terminal block into DC 12V and outputs it. (EX. When DC 48V is input to RX, DC 12V is output to the power output terminal of TX) 5.
-
Page 7: Specifications
Release Version 1.3 as shown in the above figure (5-2). (When the line is connected, power may flow backwards and cause a malfunction) - When using the TX adapter to supply power, use a DC 12V/1A or higher adapter. (DC 48V is recommended when using a high load.) 6. - Page 8 • In case the user arbitrarily disassembles or repairs • When replacing consumables • Failures due to natural disasters (lightning, fire, flood, tidal wave, etc.) SeeEyes Co., Ltd #5F, Sunil Technopia, 555 Dunchon-daero, Jungwon-gu, Seongnam City, Gyeonggi Province, Korea (Zip Code: 13215)
